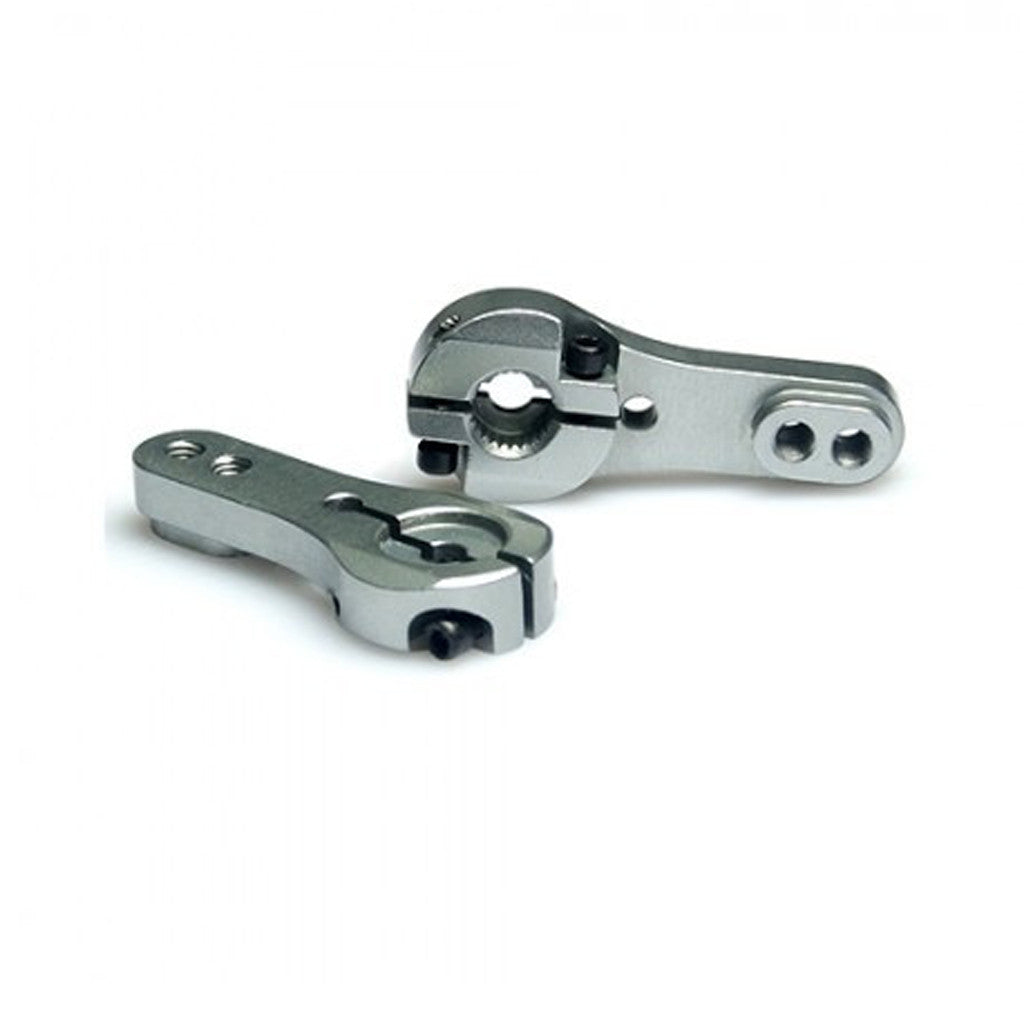

Servo Metal Horn (3.5 cm) servo standard 25T

Overview

Upgrade your servo's output with the MOKWN Servo Metal Horn (3.5 cm) – a precision-machined, unbreakable aluminum horn designed for standard servos with 25T splines. Whether you're building a robotic arm, a custom RC car, or an animatronic project, this horn provides a rock-solid connection that won't strip or flex under load. Includes two steel bolts for a secure fit.

Key Features

• Durable Metal Construction: Made from high-strength aluminum alloy, this horn is built to withstand high torque and repeated use without breaking or deforming.
• Standard 25T Spline: Fits most standard-size servos with 25-tooth splines (e.g., MG996R, MG995, SG90 with adapter, etc.).
• Compact 3.5 cm Design: Ideal for applications where space is limited but strength is crucial.
• Secure Mounting: Comes with two steel bolts for a tight, vibration-resistant attachment.
• Lightweight: At just 3.6 g, it adds minimal weight to your moving parts.

Technical Specifications

• Material: Aluminum alloy (metal)
• Spline Type: 25T (standard)
• Length: 3.5 cm (35 mm)
• Dimensions: 36 × 15 × 7 mm
• Weight: 3.6 g
• Mounting Hardware: 2 steel bolts included

Applications & Use Cases

• Robotics: Perfect for robot arms, grippers, and walking mechanisms.
• RC Hobby: Upgrade your RC car, boat, or plane's servo linkage for better control.
• Animatronics: Reliable motion for animatronic figures and props.
• Education: A must-have for STEM projects and university labs.

What's Included

• 1 × Servo Metal Horn (3.5 cm, 25T)
• 2 × Steel mounting bolts

Compatibility

• Works with standard servos that have a 25-tooth spline (e.g., MG996R, MG995, DS3218, etc.).
• For servos with different splines (e.g., 21T or 23T), consider a compatible horn.

MOKWN Recommendation

For any project that demands durability and precision, this metal horn is a smart upgrade over plastic horns. It's a small investment that prevents stripped gears and lost control. Pair it with high-torque servos from MOKWN for the best performance in your builds.
