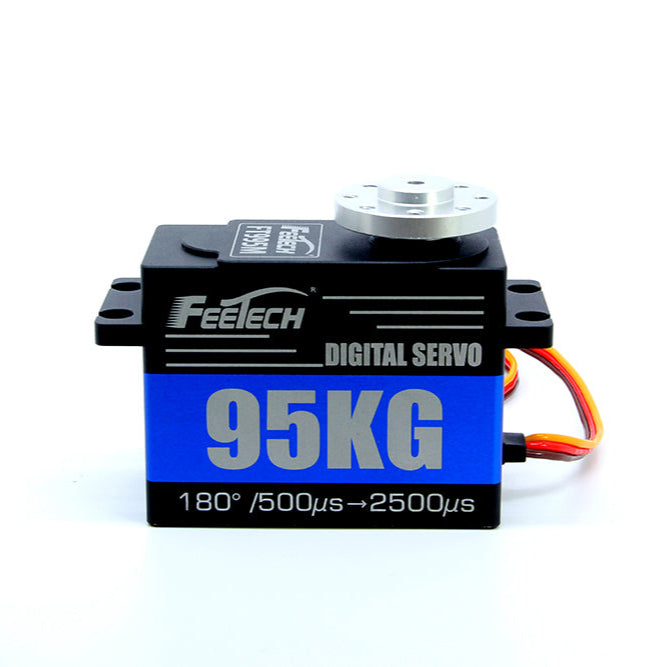

High torque Servo 12V 95KG 180 Degree FT-995-C001

Overview

Unleash the power of precision with the High Torque Servo 12V 95KG 180 Degree FT-995-C001 – a formidable actuator engineered for demanding robotics, industrial automation, and heavy-duty mechatronic applications. Whether you're building a robotic arm, a bionic leg, or a custom automation rig, this servo delivers exceptional torque and reliable performance, ensuring your projects move with confidence and accuracy.

Key Features

• Massive 95kg.cm Torque at 12V – effortlessly handles heavy loads and high-stress applications.
• 180° Rotation Range – versatile for precise angular positioning and control.
• High-Strength Steel Gears – durable and wear-resistant for long-lasting performance.
• Dual Ball Bearings – smooth, stable operation with minimal friction.
• Wide Operating Temperature Range (-20°C to 60°C) – reliable in various environments.
• 15T/7.6mm Horn Gear Spline – compatible with standard servo horns and accessories.
• Compact and Lightweight (187.5g) – easy to integrate into space-constrained designs.

Technical Specifications

• Model: FT-995-C002
• Product Name: 12V 95kg.cm 180°
• Torque: 95kg.cm (at 12V)
• Rotation Range: 180° (no limit)
• Operating Voltage: 12V DC
• Gear Type: Steel
• Bearing: Ball bearings
• Horn Gear Spline: 15T/7.6mm
• Weight: 187.5g ± 1g
• Dimensions: A: 65mm, B: 30mm, C: 48mm
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 80°C

Applications & Use Cases

• Robotics: Ideal for robotic arms, humanoid robots, and bionic prosthetics requiring high torque.
• Industrial Automation: Perfect for conveyor systems, pick-and-place machines, and custom actuators.
• Mechatronics Projects: Excellent for heavy-lift mechanisms, pan-tilt systems, and camera gimbals.
• Education & Research: Great for university labs and R&D projects exploring advanced control systems.
• 3D Printing & CNC: Can be adapted for filament feeders or tool changers in DIY machines.

What's Included

• 1x High Torque Servo FT-995-C001
• Standard servo mounting hardware (screws and horns)
• User manual (if applicable)

Compatibility

• Works with most servo controllers, Arduino, Raspberry Pi, and other PWM-based microcontrollers.
• Compatible with standard 15T servo horns and accessories.
• Requires a 12V power supply capable of delivering sufficient current (check servo specifications).

MOKWN Recommendation

For Egyptian makers and engineers, the FT-995-C001 is a game-changer. Its high torque and robust build make it a top choice for serious robotics projects. We recommend pairing it with a high-current 12V power supply and a compatible servo driver for optimal performance. Whether you're a student, hobbyist, or professional, this servo will elevate your builds to new levels of capability.
