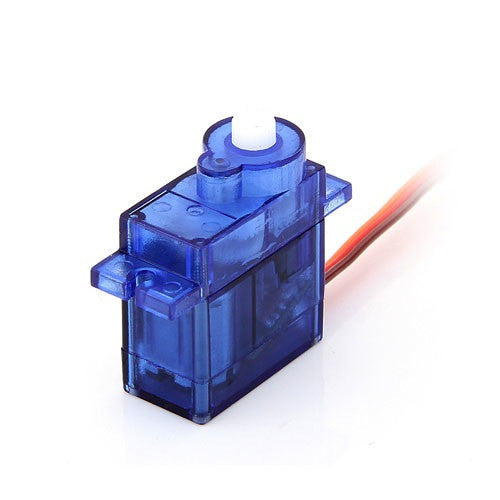

FS90R continuous Rotation Micro Servo (1.5 kg.cm) FeeTECH

Overview

Unlock continuous motion in your projects with the FS90R continuous rotation micro servo from FeeTech. Unlike standard servos that move to a specific angle, the FS90R spins continuously, giving you precise control over speed and direction. This makes it an ideal choice for robotics, remote-controlled vehicles, and any project requiring wheels, tracks, or endless rotation. Its compact size and lightweight design make it easy to integrate into your builds.

Key Features

• Continuous Rotation: Provides 360° rotation for speed and direction control, perfect for drive systems.
• Compact and Lightweight: Small form factor fits into tight spaces without adding significant weight.
• Wide Operating Voltage: Runs on 4.8-6.0VDC, compatible with common power sources.
• Reliable Performance: Delivers consistent torque and speed for demanding applications.
• Easy to Control: Standard PWM control signal makes it compatible with most microcontrollers and RC receivers.

Technical Specifications

• Torque: 1.2 kg-cm @ 4.8V, 1.5 kg-cm @ 6.0V
• Operating Voltage: 4.8-6.0VDC
• Top Operating Speed: 60 RPM @ 4.8V, 70 RPM @ 6.0V
• Gear Type: Plastic
• Motor Type: Coreless
• Connector: JR compatible
• Dimensions: 22.5 x 12 x 22 mm (approx.)
• Weight: 9g (approx.)

Applications & Use Cases

• Robotics: Drive wheels, tracks, or continuous rotation joints in mobile robots.
• RC Vehicles: Control steering or drive mechanisms in small RC cars, boats, and planes.
• Automation: Build conveyor belts, turntables, or rotating displays.
• Education: Ideal for STEM projects and robotics competitions.

What's Included

• 1x FS90R Continuous Rotation Micro Servo
• 1x 3-arm servo horn
• 1x Screw set

Compatibility

• Works with Arduino, Raspberry Pi, ESP32, and other microcontrollers.
• Compatible with standard PWM servo signals (50Hz).
• Fits most standard servo mounts and brackets.

MOKWN Recommendation

At MOKWN, we recommend the FS90R for makers and hobbyists who need reliable continuous motion in a compact package. Whether you're building a robot, an RC project, or an automation system, this servo delivers the performance you need at an affordable price. Order today and get your project moving!
