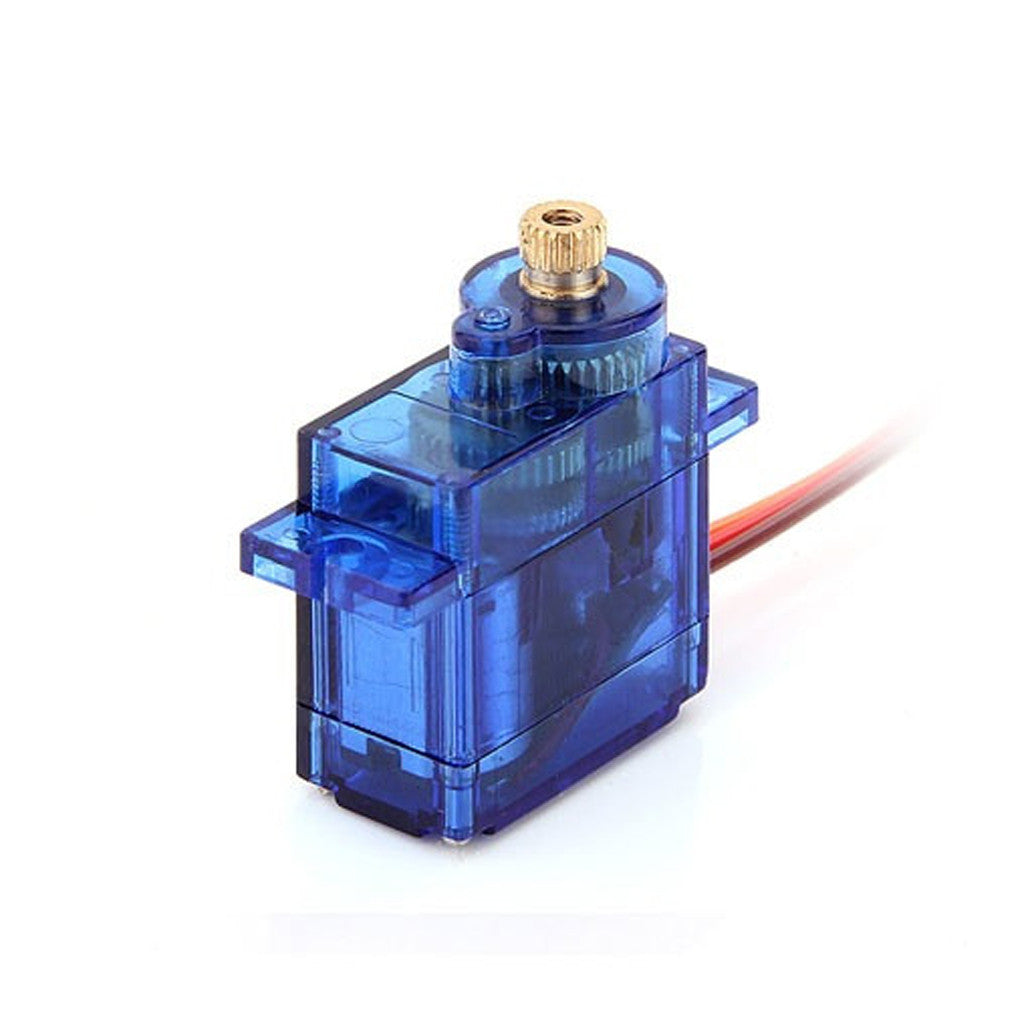

Micro Servo (1.8 kg.cm - Metal Gear)

Overview

Meet the MOKWN Micro Servo with Metal Gear — a compact yet powerful actuator engineered for precision and durability. This micro servo delivers an impressive 1.8 kg.cm of stall torque at 6V, making it an ideal choice for robotics, RC models, and automation projects where space is limited but performance is non-negotiable. Its metal gear train ensures long-lasting reliability even under continuous load, while the analog control interface provides simple, accurate angular positioning.

Key Features

• High Torque Output: Up to 1.8 kg.cm at 6V, perfect for demanding applications.
• Metal Gear Train: Superior durability and resistance to wear, ideal for high-cycle operations.
• Compact & Lightweight: Measures just 23.2 x 12.5 x 22 mm, fitting easily into tight spaces.
• Fast Response: 0.10 sec/60° at 6V for quick, precise movements.
• Wide Voltage Range: Operates from 4.2V to 6V, compatible with common 5V systems.
• Simple PWM Control: Easily interfaces with Arduino, Raspberry Pi, and other microcontrollers.

Technical Specifications

• Dimensions: 23.2 x 12.5 x 22 mm
• Stall Torque: 1.5 kg.cm @ 4.8V, 1.8 kg.cm @ 6V
• Operating Speed: 0.12 sec/60° @ 4.8V, 0.10 sec/60° @ 6V
• Operating Voltage: 4.2 – 6V
• Gear Material: Metal
• Control: Analog PWM (standard 50Hz)

Applications & Use Cases

• Robotics: Ideal for robotic arms, grippers, and walking robots.
• RC Models: Perfect for steering mechanisms in RC cars, boats, and planes.
• Automation: Use in small automated systems, camera gimbals, and pan-tilt mechanisms.
• Education: Great for STEM projects and university labs.

What's Included

• 1x Micro Servo Motor (Metal Gear)
• Compatible servo horns and mounting screws (assorted)
• 3-wire cable (power, ground, signal)

Compatibility

• Microcontrollers: Arduino, Raspberry Pi, ESP32, and any PWM-capable board.
• Power: 4.8–6V DC (recommend a dedicated servo supply for multiple servos).
• Mounting: Standard 25T spline for common servo horns.

MOKWN Recommendation

For Egyptian makers and engineers seeking a reliable, high-torque micro servo, this metal gear version is our top pick. Its robust construction and impressive torque-to-size ratio make it a versatile addition to any project. Whether you're building a robot arm, an RC car, or an automation rig, this servo delivers the performance you need. Order now and elevate your builds with MOKWN quality!
