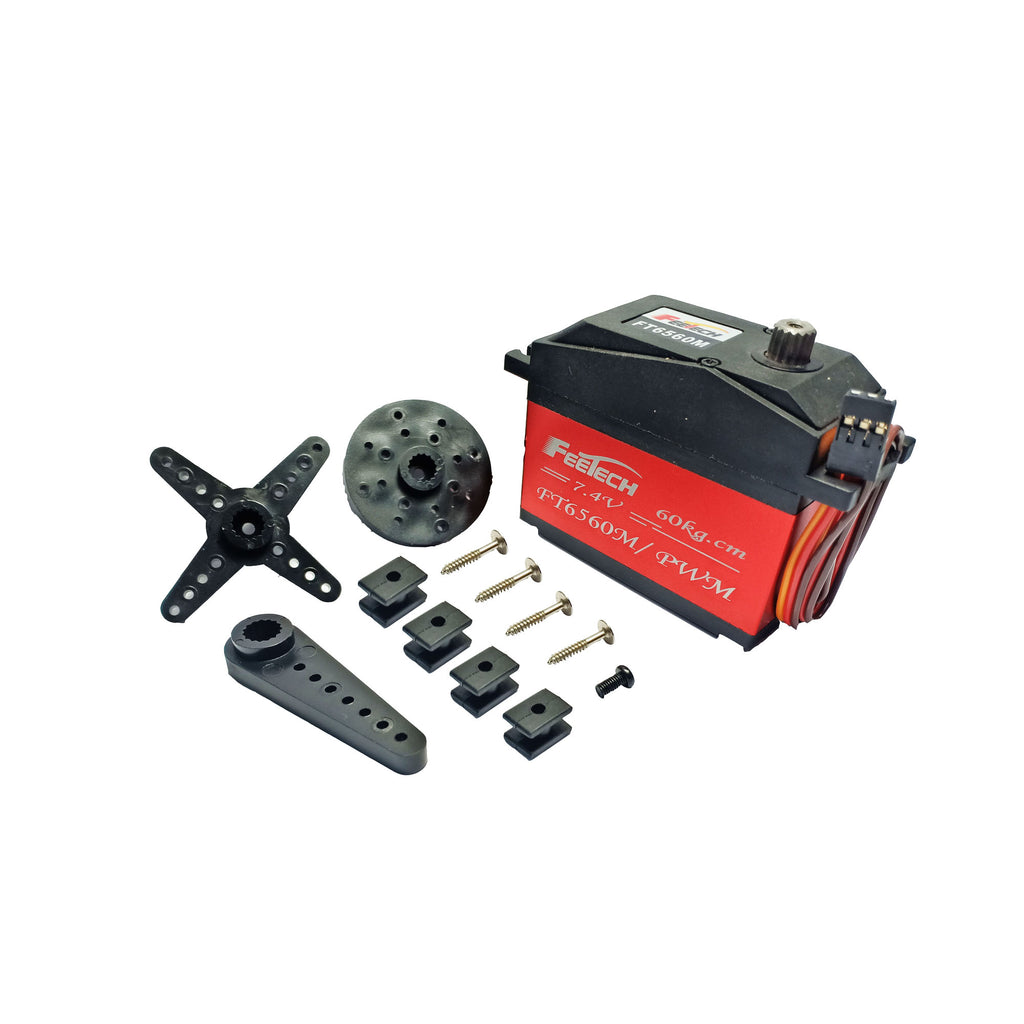

60KG High Torque Servo Motor – Metal Gear

Overview

Meet the Extra High Torque Servo – a powerhouse actuator engineered for demanding robotics and RC applications. With a massive stall torque of up to 62 kg.cm at 7.4V and lightning-fast 0.13 sec/60° speed, this servo delivers the muscle and precision your projects need. Its full metal gear train and dual ball bearings ensure durability and smooth operation under heavy loads, making it a reliable choice for robotic arms, bionic hands, heavy-duty RC vehicles, and industrial automation prototypes.

Key Features

• Extra High Torque: Up to 62 kg.cm stall torque (at 7.4V) – enough to lift and move heavy mechanical parts.
• Metal Gears: Full metal gear train provides exceptional strength and wear resistance, ideal for high-stress environments.
• Fast Response: 0.13 sec/60° at 7.4V ensures quick and precise movements.
• Dual Ball Bearings: Smooth, low-friction operation for extended lifespan and accuracy.
• Wide Voltage Compatibility: Operates efficiently at 6V and 7.4V, giving you flexibility in power supply.
• Standard JR Connector: Easy to interface with most receivers, controllers, and servo drivers.

Technical Specifications

• Size: 65.8 mm x 30 mm x 57.4 mm
• Weight: 200 g
• Stall Torque: 48 kg.cm (6V) / 62 kg.cm (7.4V)
• Speed: 0.15 sec/60° (6V) / 0.13 sec/60° (7.4V)
• Bearing: Dual ball bearings (2 BB)
• Cable Length: 20 cm
• Connector: JR type, 265 mm wire with brown/red/orange color code

Applications & Use Cases

• Robotics: Robotic arms, humanoid robots, bionic hands, and industrial manipulators requiring high torque.
• RC Hobby: Large-scale RC cars, boats, and airplanes where powerful steering or control surfaces are needed.
• Mechatronics: Automated systems, pan-tilt mechanisms, and heavy-duty actuators.
• Education & Research: University labs and maker spaces building advanced mechatronic projects.

What's Included

• 1x Extra High Torque Servo (60KG class)
• 1x Standard JR cable with connector
• 1x Servo horn set (various shapes)
• 1x Mounting screws and hardware

Compatibility

• Compatible with standard RC receivers, servo drivers, and microcontrollers (e.g., Arduino, Raspberry Pi, STM32) via PWM signal.
• Works with most servo controllers and motor shields.
• Ideal for use with our range of servo brackets and mounting kits (sold separately).

MOKWN Recommendation

For heavy-duty robotics and RC projects, this Extra High Torque Servo is an unbeatable choice. It offers professional-grade torque at an affordable price, making it perfect for Egyptian makers, students, and engineers. Whether you're building a robotic arm or upgrading your RC car, this servo delivers the strength and reliability you need. Order now and take your projects to the next level!
