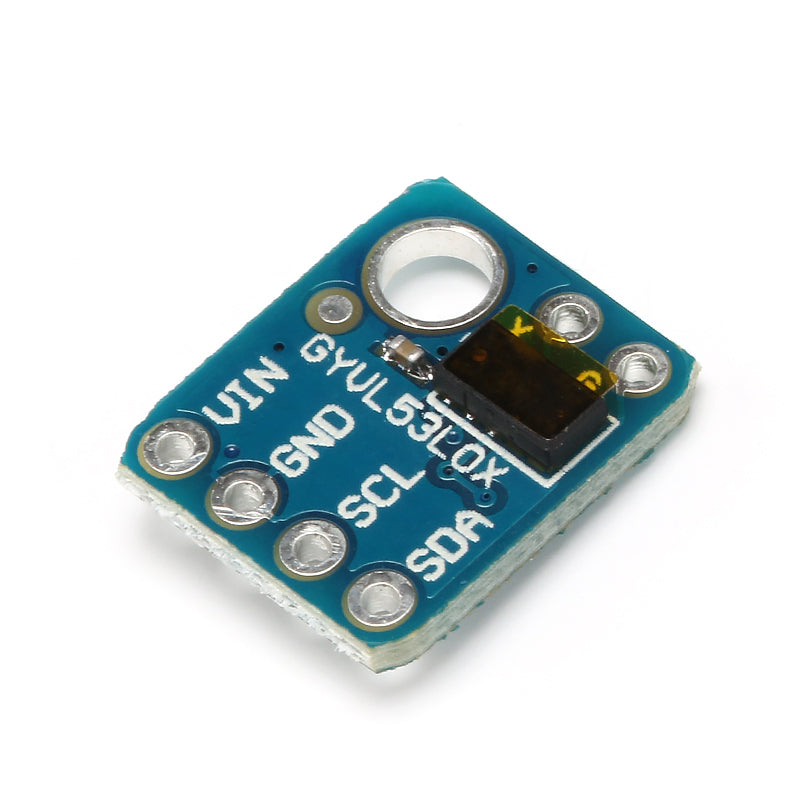

VL53L0X Time of Flight Sensor (2m Precision Distance Measurements )

Overview

Unlock precise distance measurement with the VL53L0X Time of Flight (ToF) sensor. This compact laser-ranging module uses STMicroelectronics' FlightSense™ technology to deliver accurate, high-speed measurements from a few centimeters up to 2 meters. Unlike ultrasonic sensors, the VL53L0X is immune to ambient light interference and can measure through thin materials like glass, making it ideal for a wide range of embedded applications.

Key Features

• High Precision: Measures distances from 30mm to 2000mm with millimeter accuracy.
• Fast Response: Up to 50Hz measurement rate for real-time applications.
• Laser-based: Uses a Class 1 infrared laser (invisible to the human eye) for reliable, non-contact sensing.
• I2C Interface: Simple 2-wire communication with configurable address (up to 4 devices on one bus).
• Low Power: Operates at 2.6V to 3.5V with typical current draw of 19mA during active ranging.
• Compact Design: Tiny 4.4mm x 2.1mm footprint, perfect for space-constrained projects.
• Ambient Light Immunity: Works reliably in bright sunlight or dark conditions.

Technical Specifications

• Measurement Range: 30mm to 2000mm (1.18" to 78.7")
• Accuracy: ±3% (typical) at 1m
• Resolution: 1mm
• Measurement Time: <30ms (typical)
• Supply Voltage: 2.6V - 3.5V (3.3V recommended)
• Interface: I2C (address 0x29, configurable)
• Operating Temperature: -20°C to +70°C
• Laser Class: Class 1 (eye safe)
• Dimensions: 25mm x 10.5mm (breakout board)

Applications & Use Cases

• Robotics: Obstacle avoidance, navigation, and edge detection for autonomous robots.
• Drones: Altitude hold, terrain following, and landing assistance.
• Proximity Sensing: Touchless switches, presence detection, and smart home automation.
• 3D Printing: Bed leveling and filament detection.
• Industrial Automation: Object detection, counting, and positioning.

What's Included

• 1x VL53L0X Time of Flight Sensor Breakout Board
• 1x 4-pin header (unassembled)

Compatibility

• Works with Arduino, Raspberry Pi, ESP32, STM32, and any microcontroller with I2C.
• Library support available for Arduino and Python (via smbus).

MOKWN Recommendation

Whether you're building a smart robot, a drone, or an automated system, the VL53L0X offers reliable, precise distance sensing in a tiny package. It's a must-have for makers and engineers in Egypt looking to add advanced capabilities to their projects. Order now and get free shipping on orders over 500 EGP!
