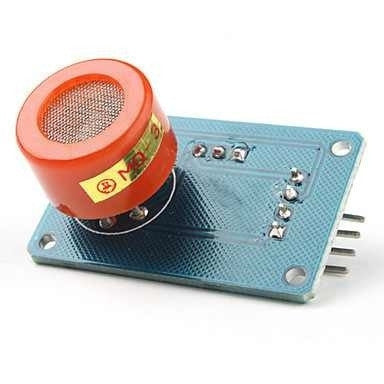

Alcohol Sensor MQ3 (Analog/Digital)

Overview

The MQ3 Alcohol Sensor is a high-performance gas sensor designed specifically for detecting alcohol vapors in the air. It is the go-to choice for building breathalyzer projects, alcohol detection systems, and safety devices. With its high sensitivity to alcohol and low cross-sensitivity to other gases like benzene, the MQ3 ensures accurate and reliable readings for your embedded applications. Whether you are a hobbyist, student, or engineer, this sensor is an essential component for any project that requires alcohol concentration monitoring.

Key Features

• High Sensitivity to Alcohol: Optimized for detecting ethanol vapors, making it ideal for breathalyzer applications.
• Dual Output (Analog & Digital): Provides both analog voltage output for precise measurements and digital TTL output for simple threshold-based detection.
• Low Cross-Sensitivity: Minimal response to benzene and other common interfering gases, ensuring accurate alcohol readings.
• Simple Interface: Compatible with microcontrollers like Arduino, ESP32, and Raspberry Pi via analog or digital pins.
• Wide Detection Range: Suitable for various alcohol concentration levels, from low to high.
• Compact and Durable: Small form factor with a robust sensing element for long-term use.
• Easy to Use: No complex calibration required for basic projects; adjustable potentiometer for setting digital threshold.

Technical Specifications

• Power Supply: 5V DC
• Interface Type: Analog and Digital
• Analog Output: 0-5V (varies with gas concentration)
• Digital Output: TTL (High/Low) with adjustable threshold via potentiometer
• Sensing Element: SnO2 (Tin Dioxide) based
• Detection Gas: Alcohol (ethanol)
• Operating Temperature: -10°C to 50°C (typical)
• Dimensions: Compact module with pin headers for easy connection

Applications & Use Cases

• Breathalyzer Projects: Build personal alcohol testers for educational or safety purposes.
• Safety Systems: Integrate into vehicle ignition interlocks or industrial safety alarms to detect alcohol vapors.
• Environmental Monitoring: Monitor alcohol concentration in laboratories or industrial settings.
• Educational Demonstrations: Teach gas sensing principles and microcontroller interfacing in STEM classrooms.
• Home Automation: Create smart systems that detect alcohol presence for ventilation or alerts.

What's Included

• 1x MQ3 Alcohol Sensor Module (with analog and digital outputs)
• Pin headers (if not pre-soldered)
• Documentation link (if available)

Compatibility

• Microcontrollers: Arduino (Uno, Mega, Nano), ESP32, ESP8266, Raspberry Pi (via ADC), STM32, and other 5V-logic microcontrollers.
• Development Boards: Works with any board that has analog input capability (ADC) or digital input pins.
• Power: Requires a stable 5V supply; current consumption is low (heater element draws about 150mA).

MOKWN Recommendation

For optimal performance, allow the sensor to preheat for at least 24 hours before initial use to stabilize the sensing element. For accurate measurements, consider calibrating the sensor with known alcohol concentrations. This sensor is perfect for beginners and experts alike, and it's a must-have for any alcohol-related project. Add it to your cart today and start building your own breathalyzer or safety system!
