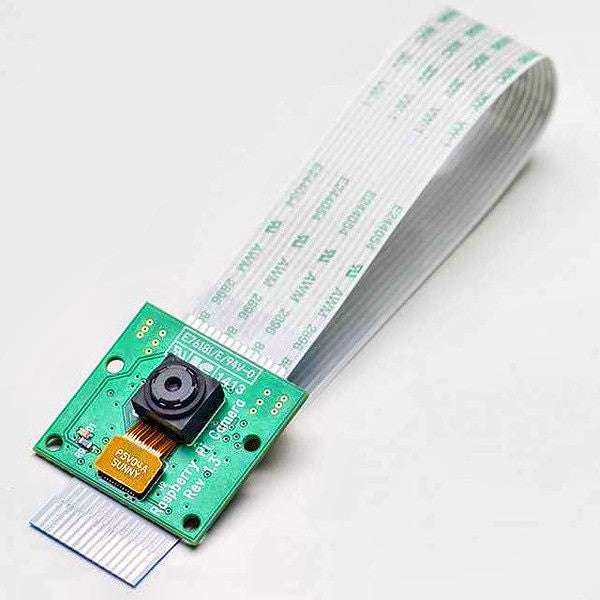

5MP Camera Board for Raspberry Pi. V1.3

Overview

Capture stunning high-resolution images and smooth Full HD video with the 5MP Camera Board for Raspberry Pi V1.3. This official camera module is the perfect upgrade for your Raspberry Pi projects, delivering crisp 2592 x 1944 still photos and 1080p video recording. Its compact design connects directly to your Pi's CSI port, ensuring stable, low-latency data transfer for a seamless maker experience. Whether you're building a security system, documenting time-lapses, or diving into computer vision, this camera is your reliable eye on the world.

Key Features

• High-Resolution Sensor: 5MP OmniVision OV5647 sensor captures detailed stills at up to 2592 x 1944 pixels.
• Full HD Video: Record smooth 1080p video at 30fps, 720p at 60fps, and more.
• Direct CSI Connection: Plugs directly into the Raspberry Pi CSI port for fast, stable data transfer.
• Compact & Lightweight: Small form factor (25mm x 24mm) fits perfectly into any project enclosure.
• Fixed-Focus Lens: Optimized for a wide range of applications, from close-ups to distant subjects.
• Broad Compatibility: Works with all Raspberry Pi models that have a CSI connector (except Raspberry Pi Zero series without adapter).
• Easy Setup: No complex configuration – just connect and start capturing with standard Raspberry Pi OS tools.

Technical Specifications

• Sensor: OmniVision OV5647
• Resolution: 5 Megapixels (2592 x 1944)
• Video Support: 1080p30, 720p60, 640x480p60/90
• Still Resolution: 2592 x 1944, 2592 x 1944, 2048 x 1536, 1296 x 972, 1296 x 730, 640 x 480
• Field of View: 72.2° diagonal
• Focus: Fixed-focus
• Aperture: f/2.9
• Interface: MIPI CSI-2 (15-pin ribbon cable)
• Dimensions: 25mm x 24mm x 9mm
• Weight: 3g (without cable)
• Operating Temperature: -20°C to +60°C

Applications & Use Cases

• Home Security & Surveillance: Build a low-cost IP camera with motion detection using OpenCV.
• Time-Lapse Photography: Capture long-term environmental changes or creative projects.
• Robotics & AI Vision: Enable object tracking, lane detection, or autonomous navigation in your robots.
• 3D Printing Monitoring: Keep an eye on your prints remotely and create timelapses.
• Education & Prototyping: Perfect for teaching computer vision and embedded systems.
• Wildlife Camera: Set up a trail camera to observe animals in your garden.

What's Included

• 1x 5MP Camera Board for Raspberry Pi V1.3
• 1x 15-pin ribbon cable (approx. 15cm)

Compatibility

• Raspberry Pi Model B (all versions)
• Raspberry Pi Model A (all versions)
• Raspberry Pi 2 Model B
• Raspberry Pi 3 Model B / B+
• Raspberry Pi 4 Model B
• Raspberry Pi 5 (requires adapter for CSI connector)
• Note: For Raspberry Pi Zero / Zero W / Zero 2 W, a separate camera adapter cable is required (not included).

MOKWN Recommendation

This 5MP Camera Board is an essential addition to any Raspberry Pi enthusiast's toolkit. It offers the perfect balance of performance and affordability, making it ideal for beginners and experts alike. At MOKWN, we recommend pairing it with a Raspberry Pi 4 or 5 for the best experience. Whether you're building a smart home project or advancing your robotics skills, this camera will exceed your expectations. Order now and bring your projects to life!
