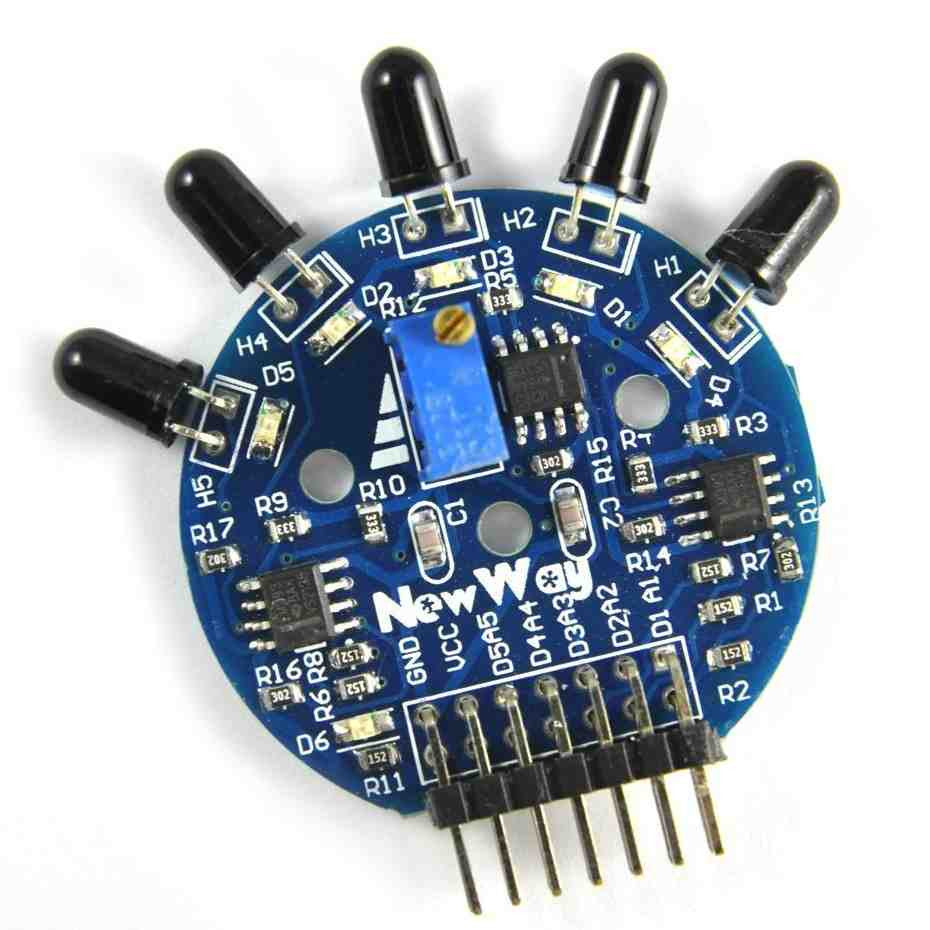

Advanced Flame Sensor

Overview

Introducing the Advanced Flame Sensor from MOKWN, a high-performance module designed for reliable fire detection and safety applications. This sensor utilizes multiple flame detection elements to achieve an exceptionally wide detection angle of over 120 degrees, ensuring comprehensive coverage for your projects. With an adjustable sensitivity control, you can fine-tune the sensor to suit your specific environment, making it an essential component for robotics, home automation, and industrial safety systems.

Key Features

• Wide Detection Angle: >120 degrees for extensive coverage.
• Long Detection Range: Up to 1.5 meters, perfect for early fire detection.
• Adjustable Sensitivity: Onboard potentiometer for fine-tuning.
• Broad Wavelength Range: Detects flames in the 700-1100nm spectrum.
• Wide Input Voltage: Operates from 3.3V to 9V, compatible with most microcontrollers.
• Compact Module: Easy to integrate into any project.

Technical Specifications

• Input Voltage: 3.3V ~ 9V
• Detection Range: ~1.5 meters
• Detecting Angle: >120 degrees
• Wavelength Detection Range: 700nm ~ 1100nm
• Output Type: Digital (with adjustable threshold) and Analog

Applications & Use Cases

• Fire Detection Systems: Early warning for homes, offices, and industrial settings.
• Robotics: Fire-fighting robots and safety automation.
• Home Automation: Smart smoke and fire detectors.
• Educational Projects: Teach students about sensor technology and safety.
• Safety Alarms: Integrate with buzzers or LEDs for visual/audio alerts.

What's Included

• 1x Advanced Flame Sensor Module

Compatibility

Compatible with Arduino, Raspberry Pi, ESP32, STM32, and other 3.3V/5V microcontrollers. Works with both digital and analog inputs.

MOKWN Recommendation

This Advanced Flame Sensor is a must-have for any maker or engineer working on safety-critical projects. Its wide detection angle and adjustable sensitivity make it a versatile choice. Pair it with our buzzer modules and Arduino boards for a complete fire alarm system. Order now and enhance your project's safety features!
