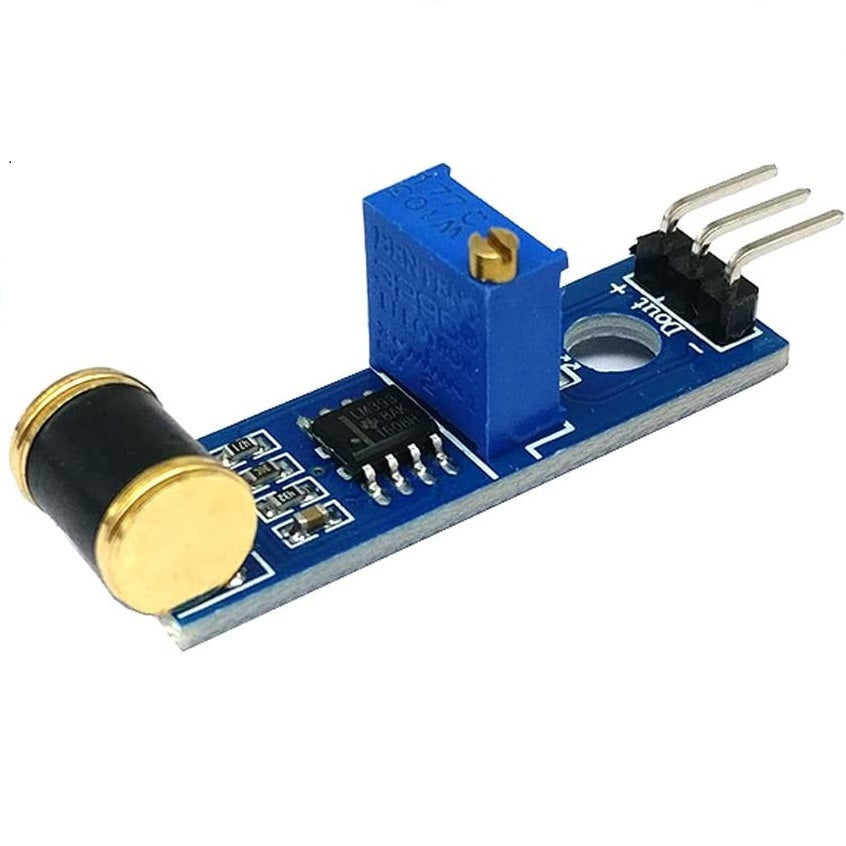

Vibration Sensor Module (801S)

Overview

Enhance your projects with the Vibration Sensor Module (801S) from MOKWN. This compact and sensitive module detects movement and vibrations, providing a digital pulse output that's perfect for building alarm systems, security devices, and interactive installations. Whether you're a hobbyist, student, or professional engineer, this sensor offers a simple and reliable way to add motion detection to your creations.

Key Features

• High Sensitivity: Detects subtle vibrations and impacts.
• Digital Output: Provides a clean pulse signal for easy interfacing with microcontrollers.
• Adjustable Threshold: Onboard potentiometer allows you to set the sensitivity level.
• Compact Design: Small footprint fits into tight spaces.
• Low Power Consumption: Suitable for battery-powered projects.
• Simple Integration: Works with Arduino, Raspberry Pi, and other popular platforms.

Technical Specifications

• Operating Voltage: 3.3V - 5V DC
• Output: Digital (pulse when vibration detected)
• Sensitivity: Adjustable via onboard potentiometer
• Module Size: Approx. 32mm x 15mm
• Weight: 5g
• Interface: 3-pin header (VCC, GND, DO)

Applications & Use Cases

• Security Systems: Detect door/window tampering or unauthorized entry.
• Alarm Systems: Trigger alarms upon impact or movement.
• Wearable Devices: Track physical activity or detect falls.
• Industrial Monitoring: Monitor machinery vibration for maintenance alerts.
• Robotics: Detect collisions or obstacles.
• Smart Home: Integrate with home automation for motion-triggered events.

What's Included

• 1x Vibration Sensor Module (801S)

Compatibility

• Arduino: Works with all Arduino boards (Uno, Nano, Mega, etc.) via digital input pins.
• Raspberry Pi: Connect to GPIO pins with appropriate voltage level shifting.
• ESP32/ESP8266: Perfect for IoT projects.
• Other Microcontrollers: Any MCU with digital input capability.

MOKWN Recommendation

For a complete vibration sensing solution, consider pairing this module with an Arduino Uno or ESP32, along with a buzzer or relay for alarm applications. Our team at MOKWN is available to help you select the right components for your project. Order now and get fast delivery anywhere in Egypt!
