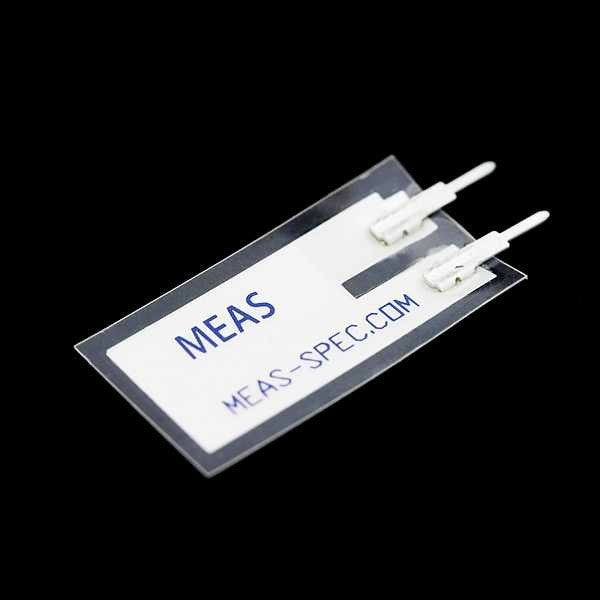

Piezo Vibration Sensor (Large)

Overview

Detect vibrations, impacts, and flex with the large Piezo Vibration Sensor from MOKWN. This sensor generates a voltage proportional to the mechanical stress applied, making it an ideal choice for impact sensing, vibration monitoring, and flex detection projects. Whether you're building a security system, a musical instrument, or an interactive art installation, this sensor provides a simple, reliable, and cost-effective solution.

Key Features

• High Sensitivity: Generates a voltage proportional to applied force, allowing precise detection of vibrations and impacts.
• Large Surface Area: The larger sensing element captures more vibration, making it suitable for a wide range of applications.
• Wide Frequency Response: Responds to a broad range of frequencies, from slow flexes to rapid vibrations.
• Easy to Use: Simple two-wire connection; no external components required.
• Durable Construction: Built to withstand repeated flexing and impacts.

Technical Specifications

• Sensor Type: Piezoelectric film
• Output: Analog voltage (AC signal proportional to mechanical stress)
• Sensing Area: Large (approx. 20mm x 14mm)
• Connector: 2-pin male header
• Operating Temperature: -20°C to +60°C
• Dimensions: 30mm x 15mm x 1mm (approx.)

Applications & Use Cases

• Impact Detection: Trigger alarms or record impacts in sports, security, and automotive applications.
• Vibration Monitoring: Monitor machinery or structures for abnormal vibrations.
• Flex Sensing: Use as a flexible sensor to detect bending or movement.
• Interactive Projects: Create touch-sensitive or vibration-responsive art installations.
• Sound Detection: Detect acoustic vibrations for simple sound-reactive projects.

What's Included

• 1x Piezo Vibration Sensor (Large)

Compatibility

• Works with Arduino, Raspberry Pi, ESP32, and other microcontrollers.
• Requires an analog input pin and a pull-down resistor (e.g., 1MΩ) for stable readings.
• Can be used with MOKWN's sensor interface modules for easy integration.

MOKWN Recommendation

This sensor is perfect for beginners and professionals alike. It's a versatile addition to any maker's toolkit, enabling creative projects that respond to physical stimuli. For best results, pair it with an Arduino and our tutorial series on vibration sensing. Order now and start building!
