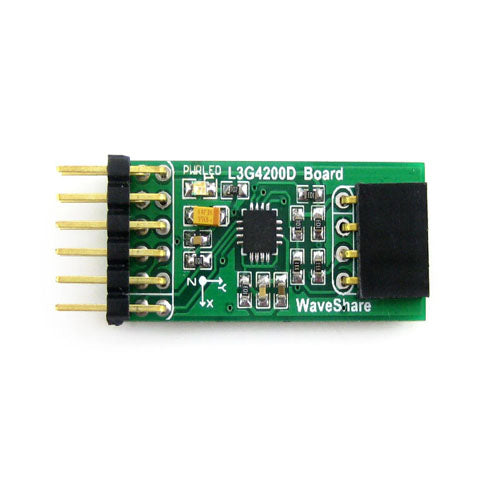

Three-axis digital output gyroscope -L3G4200D

Overview

Measure angular velocity with precision using the L3G4200D, a low-power, three-axis digital output gyroscope. This MEMS-based sensor provides accurate angular rate sensing for orientation detection and motion tracking, making it an essential component for robotics, gaming, and drone projects. Its digital output simplifies integration with microcontrollers, ensuring reliable data for your embedded systems.

Key Features

• Three Selectable Full Scales: Choose from ±250, ±500, or ±2000 dps to match your application's sensitivity requirements.
• Low Power Consumption: Designed for battery-powered and energy-efficient projects.
• Digital Output: I2C/SPI interface for easy integration and noise-immune data transmission.
• Wide Supply Voltage: Operates from 2.4V to 3.6V, compatible with common microcontroller logic levels.
• Compact Footprint: Small LGA package ideal for space-constrained designs.
• Built-in Temperature Sensor: Monitor operating conditions for enhanced accuracy.

Technical Specifications

• Measurement Range: ±250, ±500, ±2000 dps (selectable)
• Sensitivity: 8.75 mdps/digit at ±250 dps; 17.50 mdps/digit at ±500 dps; 70 mdps/digit at ±2000 dps
• Output Data Rate: 100 Hz to 800 Hz (configurable)
• Interface: I2C (7-bit address 0x68) and SPI (3/4-wire)
• Supply Voltage: 2.4V – 3.6V
• Package: 16-pin LGA (4x4x1.1 mm)
• Operating Temperature: -40°C to +85°C

Applications & Use Cases

• Robotics: Stabilize and balance robots, detect angular movements for navigation.
• Drones: Enhance flight stability and orientation control.
• Gaming & VR: Track head and body movements for immersive experiences.
• Motion Tracking: Implement gesture recognition and activity monitoring.
• Inertial Measurement Units (IMUs): Combine with accelerometers for full 6-DOF sensing.

What's Included

• 1x L3G4200D Three-Axis Digital Output Gyroscope module (breakout board)
• Pin headers (may require soldering)
• (If available, datasheet or link to documentation)

Compatibility

• Works with Arduino, Raspberry Pi, ESP32, STM32, and other microcontrollers via I2C or SPI.
• Provides example libraries and code for popular platforms.
• Operates at 3.3V logic; 5V-tolerant I2C with pull-ups (verify for your specific board).

MOKWN Recommendation

Ideal for Egyptian makers, students, and engineers looking to add precise angular rate sensing to their projects. Whether you're building a self-balancing robot, a flight controller, or a motion-controlled game, the L3G4200D offers excellent performance at a great value. Pair it with an accelerometer for a complete IMU solution. Order now and get fast, reliable delivery across Egypt!
