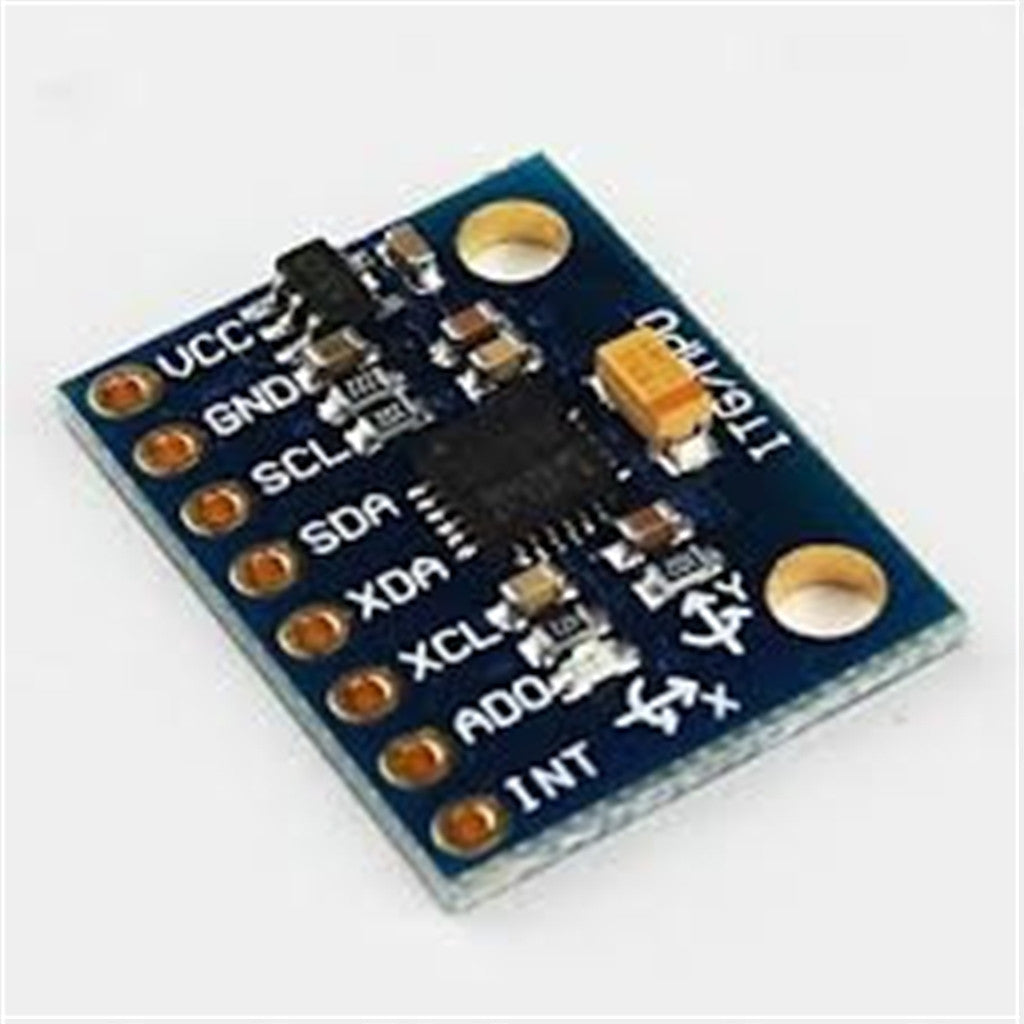

IMU (3 Axis Gyro + 3 Axis Accelorometer ) renovate MPU-6050

Overview

Unlock precise motion tracking and orientation sensing for your next project with the MPU-6050 IMU module. This compact, powerful sensor combines a 3-axis accelerometer and a 3-axis gyroscope on a single chip, making it the go-to choice for robotics, drones, and motion-controlled applications. Whether you're a hobbyist, student, or professional engineer, the MPU-6050 delivers accurate, real-time data to bring your ideas to life.

Key Features

• 6-Axis Integration: Combines a 3-axis accelerometer and 3-axis gyroscope in one module, saving space and simplifying design.
• Digital Motion Processor (DMP): Onboard DMP offloads complex motion processing from your main microcontroller, allowing for faster and more efficient code.
• I2C Communication: Easy to interface with popular microcontrollers like Arduino, ESP32, and Raspberry Pi via a standard I2C interface.
• Low Power Consumption: Ideal for battery-powered projects, with a typical operating current of just 3.9mA.
• Wide Supply Voltage: Operates from 3.3V to 5V, making it compatible with most development boards.
• Factory Calibrated: Delivers consistent and reliable readings out of the box.

Technical Specifications

• Chip: MPU-6050
• Accelerometer Range: ±2g, ±4g, ±8g, ±16g (selectable)
• Gyroscope Range: ±250, ±500, ±1000, ±2000 °/s (selectable)
• Interface: I2C (address 0x68, configurable to 0x69)
• Supply Voltage: 3.3V - 5V
• Operating Current: 3.9mA (typical)
• Operating Temperature: -40°C to +85°C
• Module Dimensions: 21mm x 16mm x 3mm (approx.)
• Weight: 2g (approx.)

Applications & Use Cases

• Robotics: Balance bots, robotic arms, and autonomous navigation.
• Drones & UAVs: Stabilization, attitude control, and flight dynamics.
• Motion Tracking: Gesture recognition, wearable devices, and VR/AR systems.
• IoT Projects: Vibration monitoring, smart home automation, and security systems.
• Education & Prototyping: Perfect for learning about inertial measurement units (IMUs) and sensor fusion.

What's Included

• 1x MPU-6050 IMU Module (with 3-axis gyro + 3-axis accelerometer)
• 1x Pin header strip (unassembled, requires soldering)

Compatibility

• Microcontrollers: Arduino (Uno, Mega, Nano), ESP32, ESP8266, Raspberry Pi, STM32, and more.
• Software: Arduino IDE, PlatformIO, Python (with appropriate libraries).
• Libraries: Wire, MPU6050 (by Jeff Rowberg), Adafruit_MPU6050, and others.

MOKWN Recommendation

For beginners, we recommend starting with an Arduino Uno and the MPU6050 library by Jeff Rowberg to quickly get sensor data. For advanced projects, pair it with an ESP32 for wireless data transmission. This module is a reliable, cost-effective choice for any motion-sensing application.
