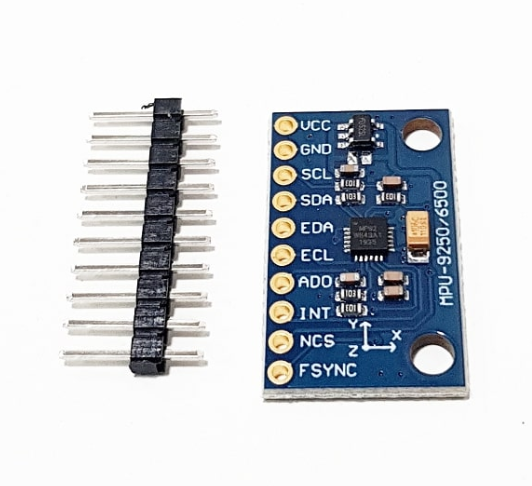

MPU9250 9-Axis IMU Sensor Module – Accelerometer Gyroscope Magnetometer

Overview

The MPU9250 9-Axis IMU Sensor Module is an advanced, high-precision motion tracking solution combining a 3-axis accelerometer, a 3-axis gyroscope, and a 3-axis magnetometer (AK8963 compass) on a single compact PCB. Based on the popular InvenSense MPU-9250 multi-chip architecture, this module delivers full 9 Degrees of Freedom (9-DOF) inertial measurement. Equipped with an onboard Digital Motion Processor (DMP) and dual I2C/SPI communication interfaces, the MPU9250 offloads complex sensor-fusion algorithms from the host microcontroller, making it the premier choice for drone flight controllers, self-balancing robots, VR/AR tracking, and gimbal stabilization projects.

Key Features

• Full 9-DOF Motion Tracking: Integrates a tri-axial accelerometer, tri-axial gyroscope, and tri-axial geomagnetic compass into one unified module.
• Embedded Digital Motion Processor (DMP): Hardware-accelerated sensor fusion calculates orientation quaternions and Euler angles, freeing up microcontroller processing power.
• High-Resolution 16-Bit ADCs: Dedicated 16-bit analog-to-digital converters for each axis capture fine angular velocity, linear acceleration, and magnetic vectors.
• Selectable Full-Scale Ranges: Flexible measurement ranges (gyro: ±250°/s to ±2000°/s; accel: ±2g to ±16g; compass: ±4800 μT) suit diverse motion dynamics.
• Dual Interface (I2C & SPI): Operates over fast-mode I2C (up to 400 kHz) or high-speed SPI (up to 20 MHz) for lightning-fast data throughput.
• Ultra-Low Power Consumption: Advanced power-management modes make it suitable for battery-operated wearables and mobile IoT devices.

Technical Specifications

• Sensor IC: InvenSense MPU-9250 (MPU-6500 gyro/accel + AK8963 magnetometer)
• Degrees of Freedom (DOF): 9-DOF (3-axis Accel + 3-axis Gyro + 3-axis Mag)
• Operating Voltage: 3.0V – 5.0V DC (onboard LDO voltage regulator)
• Logic Level: 3.3V / 5V compatible
• Communication Protocol: I2C (address 0x68 / 0x69 default) and SPI
• Gyroscope Ranges: ±250, ±500, ±1000, ±2000 °/sec
• Accelerometer Ranges: ±2g, ±4g, ±8g, ±16g
• Magnetometer Range: ±4800 µT
• ADC Resolution: 16-bit per channel
• Internal Buffer: 512-byte FIFO buffer
• Dimensions: 25 mm × 15 mm × 3 mm
• Pin Pitch: Standard 2.54 mm (0.1") breadboard pitch

Applications & Use Cases

• Drones & Quadcopters: Inertial reference for altitude hold, acrobatic flight controllers, and autonomous navigation.
• Self-Balancing Robotics: Two-wheeled inverted pendulum robots and precision PID balance systems.
• Camera Gimbals: Multi-axis brushless gimbal stabilization for cinema cameras and smartphone rigs.
• Virtual & Augmented Reality (VR/AR): Head tracking, handheld motion controllers, and orientation sensing.
• Navigation & Digital Compass: Dead reckoning, indoor localization, and vehicle heading detection.

What's Included

• 1 × MPU9250 9-Axis IMU Sensor Module
• 1 × 10-Pin Straight Male Pin Header (2.54mm pitch)
• 1 × 10-Pin Right-Angle Male Pin Header

Compatibility

• Microcontrollers: Fully compatible with Arduino (Uno, Nano, Mega), ESP32, ESP8266, STM32, Raspberry Pi, and Teensy.
• Libraries: Extensive open-source library support including MPU9250_WE, Bolder Flight Systems MPU9250, and ROS (Robot Operating System) IMU drivers.
• Operating Voltages: Works with both 3.3V and 5V microcontrollers thanks to onboard voltage regulation.

MOKWN Recommendation

The MPU9250 is the gold standard for Egyptian makers and engineering students developing quadcopters, balancing robots, or navigation systems. Unlike basic 6-axis sensors (like MPU6050) which suffer from gradual yaw drift, the integrated 3-axis magnetometer in the MPU9250 provides a true magnetic North reference to anchor your orientation calculations permanently. For best performance, calibrate the magnetometer in your local Egyptian magnetic environment before running sensor-fusion filters like Madgwick or Mahony. Order today from MOKWN for genuine components and fast nationwide delivery!
