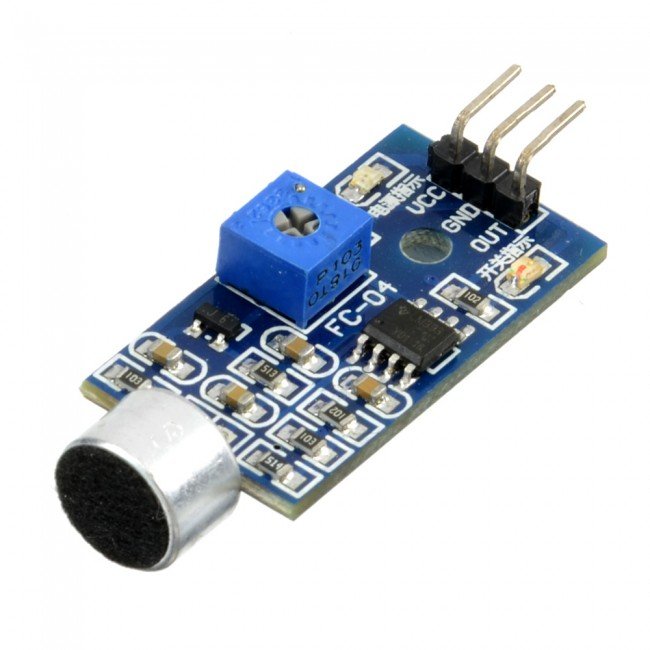

Sound Sensor Module

Overview

The Sound Sensor Module is a compact and high-sensitivity audio detection module designed for a wide range of sound-activated projects. Equipped with an electret microphone and an LM393 comparator, this module accurately detects sound levels and converts them into both digital and analog signals. Whether you're building a clap-activated light, a voice-controlled robot, or a smart security system, this sensor provides a reliable and easy-to-integrate solution for your microcontroller projects.

Key Features

• High Sensitivity Electret Microphone: Captures ambient sound with precision.
• LM393 Comparator: Ensures stable and accurate sound level detection.
• Dual Outputs: Provides both digital (DO) and analog (AO) signals for flexible integration.
• Adjustable Sensitivity: Onboard potentiometer allows you to fine-tune the trigger threshold.
• Wide Voltage Compatibility: Operates from 3.3V to 5V DC, making it compatible with most microcontrollers.
• Compact Design: Small footprint (approx. 3.2cm x 1.7cm) fits easily into any project.
• Power and Signal LEDs: Visual indicators for power and sound detection status.

Technical Specifications

• Supply Voltage: 3.3V – 5V DC
• Outputs: Digital (DO) & Analog (AO)
• Comparator IC: LM393
• Microphone Type: Electret condenser microphone
• Sensitivity Adjustment: Onboard potentiometer
• Dimensions: 32mm x 17mm
• Weight: 3g

Applications & Use Cases

• Sound-Activated Projects: Clap switches, voice-activated lights, sound-triggered alarms.
• Security Systems: Intrusion detection, noise monitoring, and alert systems.
• IoT Applications: Smart home automation, ambient noise monitoring, and voice-controlled devices.
• Educational Projects: Classroom demonstrations of sound physics and electronics.
• Robotics: Voice-controlled robots, interactive toys, and sound-seeking robots.

What's Included

• 1x Sound Sensor Module
• (No cables or headers included – purchase separately if needed)

Compatibility

• Microcontrollers: Arduino (Uno, Mega, Nano), ESP32, ESP8266, Raspberry Pi (via ADC), STM32, and other 3.3V/5V logic boards.
• Wiring: Connect VCC to 3.3V or 5V, GND to GND, DO to a digital input pin, AO to an analog input pin (if using analog).

MOKWN Recommendation

This Sound Sensor Module is a must-have for any maker's toolbox. Its dual output and adjustable sensitivity make it incredibly versatile, and its compact size ensures it can fit into almost any project. Whether you're a student learning about electronics or a professional engineer prototyping an IoT device, this sensor delivers reliable performance at an affordable price. Order today from MOKWN and bring your sound-activated ideas to life!
