Dip Switch 8 Position

Overview

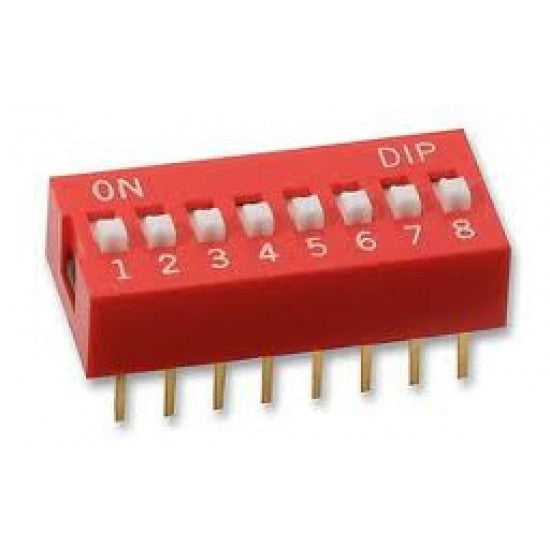

The Dip Switch 8 Position is a compact and reliable solution for configuring your electronic projects. With 8 individual SPST slide switches in a standard 0.1-inch (2.54 mm) pitch DIP package, it allows you to set binary values, addresses, or options manually. This switch is essential for hobbyists, students, and engineers who need a simple, tactile way to alter circuit behavior without reprogramming.

Key Features

• 8 Independent SPST Switches: Each switch toggles between ON and OFF states, providing up to 256 (2^8) possible combinations.
• Standard 0.1-inch Pitch: Perfect for breadboards, perfboards, and standard IC sockets.
• Compact DIP Package: Low-profile design saves space on your PCB.
• Clear ON/OFF Marking: Each switch has visible ON/OFF indicators for easy configuration.
• Durable Construction: Rated for up to 1,000 actuations per switch, ensuring long-term reliability.
• Easy to Use: Simply slide the small actuators with a fingertip or a small tool.

Technical Specifications

• Number of Positions: 8
• Circuit Type: SPST (Single Pole, Single Throw)
• Contact Rating: 100 mA @ 24 VDC (typical)
• Contact Resistance: ≤ 100 mΩ (initial)
• Insulation Resistance: ≥ 100 MΩ at 500 VDC
• Dielectric Strength: 500 VAC for 1 minute
• Pitch: 2.54 mm (0.1 inch)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Actuator Type: Slide
• Mounting Type: Through-hole (DIP)
• Terminal Type: Solder lug

Applications & Use Cases

• Microcontroller Projects: Set I2C addresses, configuration bits, or mode selections on Arduino, ESP32, Raspberry Pi (via GPIO) and other MCU boards.
• Prototyping: Quickly change circuit parameters on breadboards without rewiring.
• Industrial Control: Set device addresses on RS-485 networks or PLC modules.
• Consumer Electronics: Configure remote controls, appliances, or security systems.
• Educational Kits: Teach binary logic and digital electronics in classrooms or workshops.
• Robotics: Adjust sensor thresholds or motor driver settings.

What's Included

• 1x Dip Switch 8 Position (through-hole)

Compatibility

• Works with all standard breadboards and perfboards with 0.1-inch spacing.
• Compatible with Arduino, Raspberry Pi, ESP32, STM32, and other microcontrollers.
• Can be soldered directly to PCBs or used with IC sockets.

MOKWN Recommendation

Ideal for makers and engineers in Egypt who need a straightforward way to configure their projects. Whether you're building a custom keyboard, setting up a sensor network, or teaching electronics, this DIP switch is a must-have. Stock up and keep your prototyping kit ready for any challenge.
