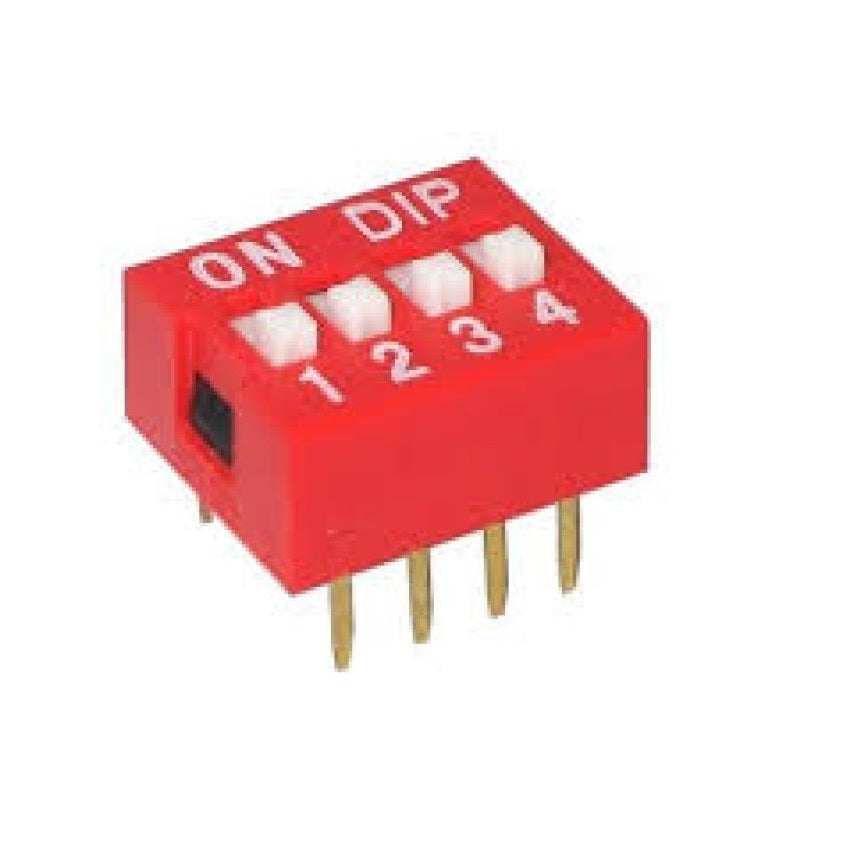

Dip Switch 4 Position

Overview

This DIP switch features four individual switch positions, perfect for setting device configurations on your projects. With standard 0.1" spacing, it fits easily into a breadboard, making it ideal for various control applications. Whether you're adjusting I2C addresses, setting baud rates, or configuring logic states, this compact and reliable component is a must-have for your electronics workbench.

Key Features

• 4 independent SPST switches for flexible configuration
• Standard 2.54mm (0.1") pin spacing – breadboard-friendly
• Compact DIP-4 package – saves space on your PCB
• Reliable sliding contact mechanism – ensures stable connections
• Easy to set – simple slide to ON/OFF positions

Technical Specifications

• Number of Positions: 4
• Switch Type: SPST (Single Pole Single Throw)
• Contact Rating: 25mA @ 24VDC (typical)
• Contact Resistance: ≤ 100mΩ (initial)
• Insulation Resistance: ≥ 100MΩ at 500VDC
• Dielectric Strength: 500VAC for 1 minute
• Actuator Type: Slide (flush or extended)
• Termination: Through-hole (DIP)
• Pin Spacing: 2.54mm (0.1")
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Mechanical Life: 2,000 cycles (typical)

Applications & Use Cases

• Configuration Settings: Set I2C addresses, SPI modes, or UART baud rates on development boards
• Prototyping: Quickly change logic levels or enable/disable features on breadboards
• Industrial Control: Set device IDs or operating modes in embedded systems
• DIY Projects: Ideal for Arduino, Raspberry Pi, ESP32, and other microcontroller projects
• Educational Use: Perfect for teaching digital electronics and logic design

What's Included

• 1x DIP Switch 4 Position

Compatibility

• Breadboards and perfboards with 2.54mm pitch
• PCB designs with standard DIP-4 footprint
• Compatible with Arduino, Raspberry Pi, ESP32, STM32, and any microcontroller

MOKWN Recommendation

This DIP switch is a reliable and cost-effective solution for all your configuration needs. Its compact size and standard pin spacing make it a staple for any maker's toolkit. Whether you're a student, hobbyist, or professional engineer, this component will simplify your prototyping and production processes. Order now and enjoy fast delivery across Egypt!
