Dip Switch 10 Position

Overview

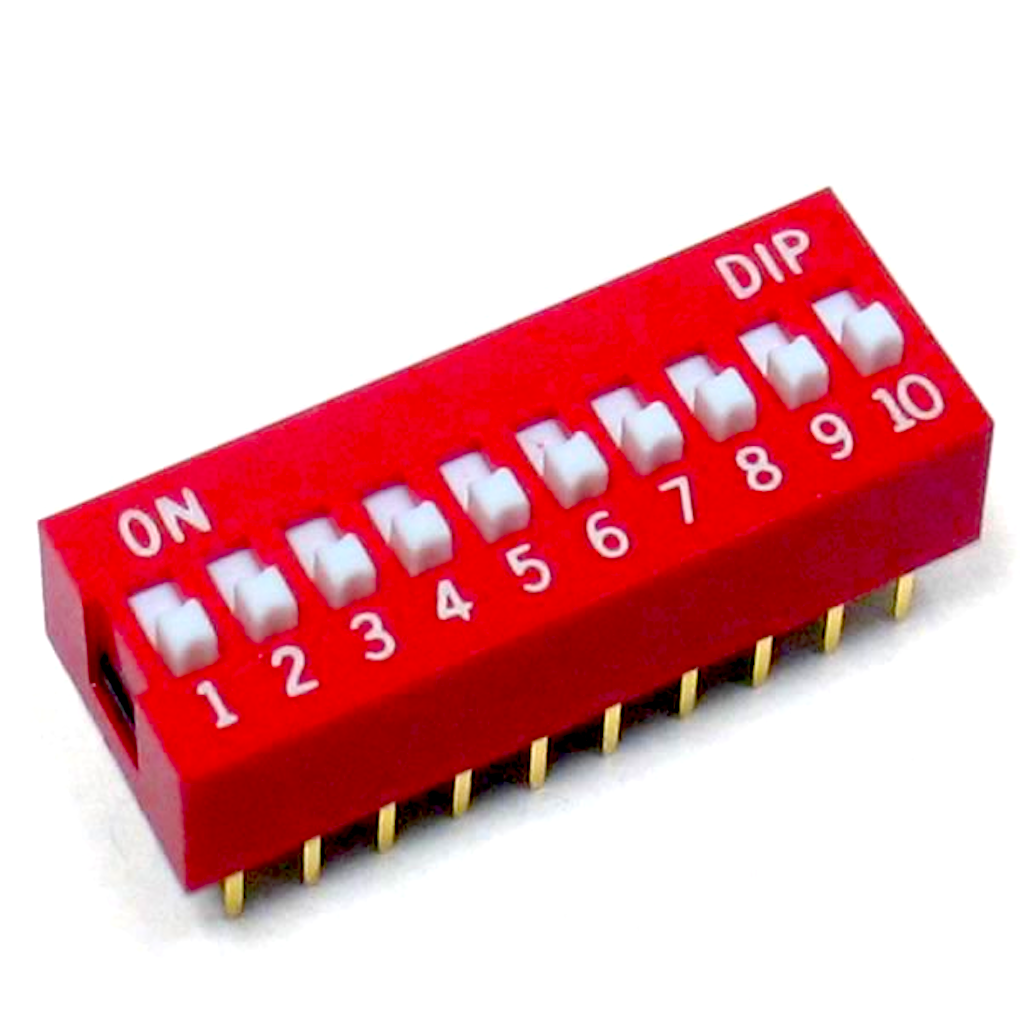

The Dip Switch 10 Position is a compact and reliable input device designed for hardware configuration in electronic projects. With its 10 individual slide switches in a standard 0.1" (2.54mm) pitch, this DIP switch allows you to set binary states (ON/OFF) easily, making it perfect for setting addresses, configuring modes, or selecting options in your circuits. Its breadboard-friendly design ensures seamless integration with Arduino, Raspberry Pi, and other development boards.

Key Features

• 10 Positions: Ten independent SPST slide switches in a single package.
• Standard Pitch: 0.1" (2.54mm) pin spacing, ideal for breadboards and PCBs.
• Compact Design: Small footprint saves space on your board.
• Easy Operation: Simple slide mechanism for quick toggling.
• Durable Construction: Reliable contact materials for long-lasting performance.
• Clear Markings: ON/OFF positions are clearly marked for easy identification.

Technical Specifications

• Number of Positions: 10
• Switch Type: SPST (Single Pole Single Throw)
• Contact Rating: 100mA @ 50VDC (typical)
• Contact Resistance: ≤ 100mΩ (initial)
• Insulation Resistance: ≥ 100MΩ at 500VDC
• Dielectric Strength: 500VAC for 1 minute
• Actuator Type: Slide
• Pitch: 2.54mm (0.1")
• Operating Temperature: -20°C to +70°C
• Mounting Type: Through-hole (DIP)
• Dimensions: Approximately 25.4mm x 9.8mm x 5.0mm

Applications & Use Cases

• Address Configuration: Set I2C or SPI device addresses.
• Mode Selection: Choose operating modes on development boards.
• User Input: Manual configuration for DIY projects.
• Prototyping: Quick setup changes during testing.
• Educational Projects: Teach digital logic and binary concepts.
• Industrial Controls: Set parameters in embedded systems.

What's Included

• 1x Dip Switch 10 Position

Compatibility

• Compatible with standard breadboards and perfboards.
• Works with Arduino, Raspberry Pi, ESP32, and other microcontrollers.
• Suitable for PCB mounting with 2.54mm pitch.

MOKWN Recommendation

Whether you are a hobbyist, student, or professional engineer, this Dip Switch 10 Position is an essential component for your toolkit. Its ease of use and reliability make it a top choice for configuration tasks in your projects. Order now and enjoy fast delivery across Egypt!
