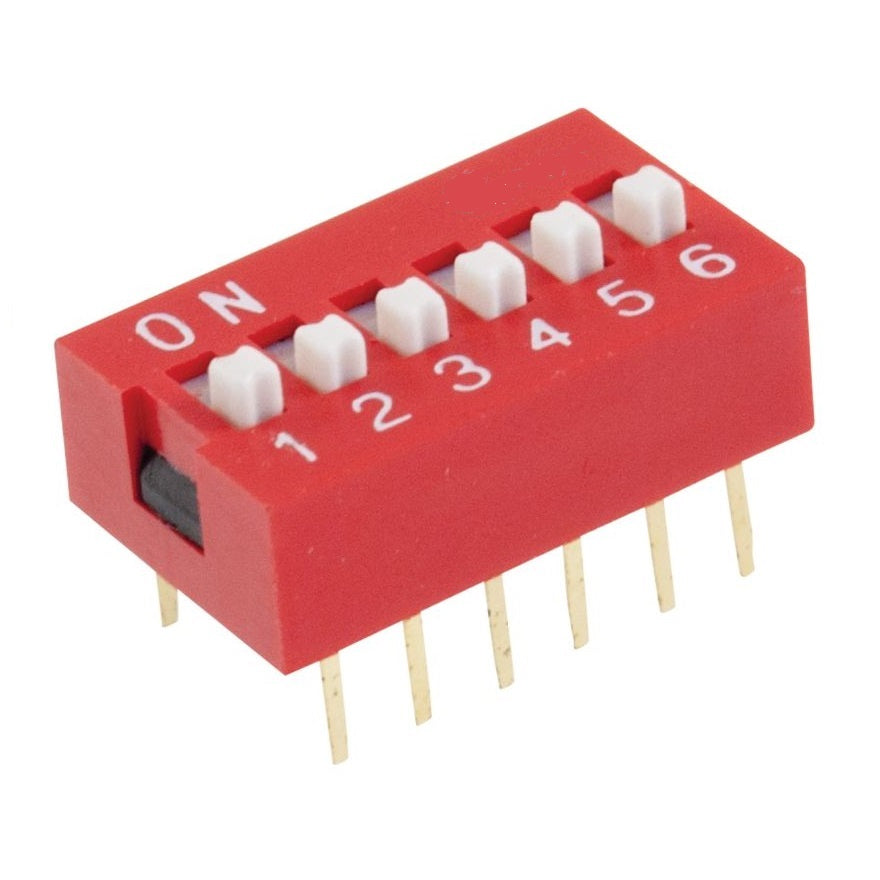

Dip Switch 6 Position

Overview

Take control of your circuit configurations with the Dip Switch 6 Position from MOKWN. This compact and reliable switch is a staple for makers, students, and engineers who need a simple way to set addresses, select modes, or adjust settings on their projects. Its standard 0.1-inch pin spacing ensures seamless integration with breadboards, PCBs, and prototyping boards, making it an essential addition to your electronics toolkit.

Key Features

• 6 Independent Positions: Offers multiple configuration options for various applications.
• Standard 0.1" (2.54mm) Pin Spacing: Compatible with breadboards, perfboards, and standard PCBs.
• Compact DIP Package: Saves space on your board, ideal for tight layouts.
• Reliable Mechanical Switching: Provides a clear tactile click for positive setting confirmation.
• Easy to Use: No special tools required; simply toggle each switch to your desired position.

Technical Specifications

• Number of Positions: 6
• Switch Type: DIP (Dual Inline Package) slide switch
• Pin Spacing: 2.54mm (0.1 inches)
• Contact Rating: Typically 25mA at 24VDC (refer to datasheet for exact values)
• Operating Temperature Range: -20°C to +70°C (typical)
• Mounting Type: Through-hole (THT) for easy soldering

Applications & Use Cases

• Set I2C addresses for multiple sensors or modules.
• Configure microcontroller GPIO pins (e.g., Arduino, ESP32, STM32).
• Select operational modes in DIY electronics projects.
• Adjust settings on industrial control boards.
• Use in educational kits for learning digital logic and circuit design.

What's Included

• 1x Dip Switch 6 Position

Compatibility

• Compatible with all standard breadboards, perfboards, and PCBs with 2.54mm pitch holes.
• Works seamlessly with Arduino, Raspberry Pi, ESP32, and other microcontroller development boards.
• Suitable for use with jumper wires and standard prototyping accessories.

MOKWN Recommendation

Whether you're a hobbyist or a professional, the Dip Switch 6 Position is a must-have for any project that requires manual configuration. Its robust design and ease of use make it a reliable choice for prototyping and final builds. Add it to your cart today and simplify your circuit setup!
