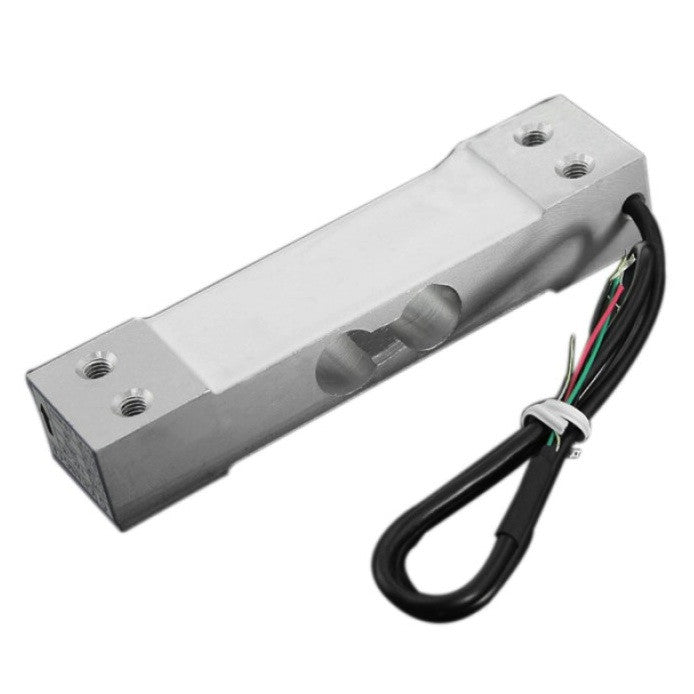

Weight Sensor (Load Cell) 5KG

Overview

Introducing the MOKWN 5KG Weight Sensor (Load Cell) — a precision force sensor engineered for accurate weight measurement in a wide range of electronic and embedded projects. Whether you're building a digital scale, a smart bin, or an industrial weighing system, this load cell provides reliable, repeatable readings that you can trust.

Manufactured with high-quality materials and rigorously tested, this sensor converts force into a measurable electrical signal, making it an essential component for any maker, student, or engineer working on weight-based applications.

Key Features

• High Accuracy: Accurate to within ±0.15mV/V, ensuring precise measurements for your projects.
• Robust Construction: Durable design withstands repeated use in demanding environments.
• Easy to Interface: Simple wiring and compatibility with common microcontrollers like Arduino, ESP32, and Raspberry Pi.
• Wide Operating Range: Excitation voltage of 5-10VDC, flexible for various power supplies.
• Low Temperature Drift: Maintains accuracy across a range of temperatures with minimal zero drift.

Technical Specifications

• Rated Load: 5 kg
• Output Sensitivity: ±0.15 mV/V
• Excitation Voltage: 5-10 VDC
• Insulation Resistance: ≥2000 MΩ
• Temperature Zero Drift: 0.1% F.S
• Temperature Sensitivity: 0.05% F.S

Applications & Use Cases

• Digital Scales: Perfect for building kitchen scales, luggage scales, or postal scales.
• Smart Agriculture: Monitor feed levels or crop weight in automated systems.
• Industrial Automation: Integrate into conveyor belts or filling machines for weight-based control.
• Educational Projects: Ideal for physics experiments and engineering coursework.
• IoT Projects: Send weight data to the cloud for remote monitoring.

What's Included

• 1x 5KG Weight Sensor (Load Cell)

Note: HX711 amplifier module is not included but recommended for accurate readings with microcontrollers.

Compatibility

• Microcontrollers: Arduino, ESP32, Raspberry Pi, STM32, and any MCU with analog input.
• Amplifiers: Works with HX711, INA125, or similar load cell amplifiers.
• Power: Compatible with 5V or 10V power supplies.

MOKWN Recommendation

For best results, pair this load cell with an HX711 module (available separately) to get high-resolution digital readings. Whether you're a hobbyist or professional, this sensor offers an excellent balance of price and performance. Order now and start your weighing project today!
