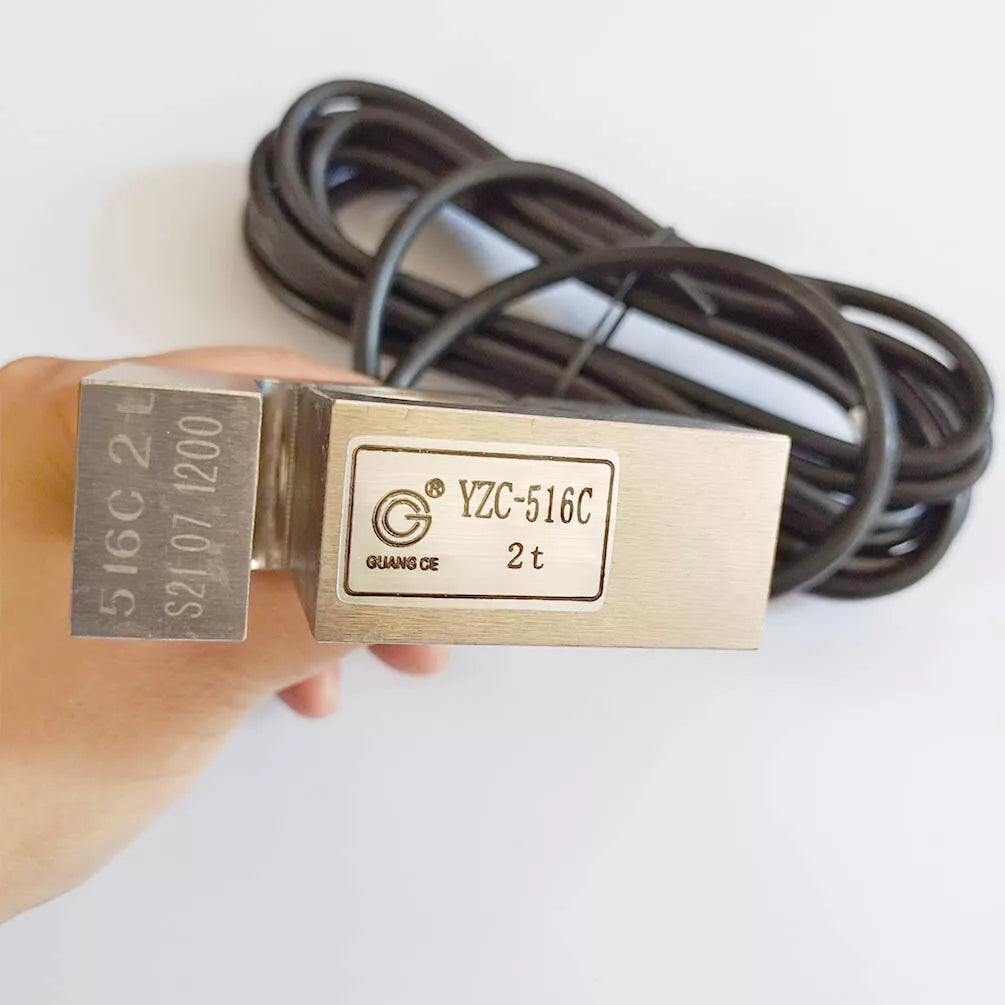

Load Cell YZC-516C (2000 Kg)

Overview

The YZC-516C is a high-capacity single-point load cell designed for precise weight measurement in demanding industrial and laboratory environments. With a robust 2000 kg capacity, this load cell offers exceptional accuracy and reliability for a wide range of weighing applications. Its aluminum alloy construction and IP66 protection rating ensure durability and resistance to dust and water, making it suitable for harsh conditions. Whether you're building a heavy-duty scale, a hopper scale, or an industrial force measurement system, the YZC-516C delivers consistent, repeatable performance.

Key Features

• High Capacity: Handles up to 2000 kg (2 tons) for heavy-duty weighing tasks.
• Precision Accuracy: High sensitivity and linearity for precise force measurement.
• Single-Point Design: Ideal for platform scales and simple mounting configurations.
• Durable Construction: Made from high-quality aluminum alloy, resistant to corrosion and wear.
• IP66 Rated: Protected against dust and powerful water jets, suitable for industrial environments.
• Easy Integration: Standard wiring (red: excitation+, black: excitation-, green: signal+, white: signal-) simplifies connection to microcontrollers and HX711 amplifiers.

Technical Specifications

• Model: YZC-516C
• Capacity: 2000 kg
• Rated Output: 2.0 mV/V ± 10%
• Nonlinearity: ± 0.02% F.S.
• Repeatability: ± 0.02% F.S.
• Creep (30 min): ± 0.02% F.S.
• Input Resistance: 400 ± 20 Ω
• Output Resistance: 350 ± 5 Ω
• Insulation Resistance: ≥ 5000 MΩ (50 VDC)
• Recommended Excitation Voltage: 5-10 VDC
• Compensated Temperature Range: -10°C to +40°C
• Operating Temperature Range: -20°C to +60°C
• Material: Aluminum Alloy
• Protection Class: IP66
• Cable Length: 3 m (approx.)

Applications & Use Cases

• Industrial Scales: Platform scales, hopper scales, and tank weighing systems.
• Laboratory Equipment: Force measurement in material testing and calibration.
• Robotics: Force feedback in heavy-duty robotic arms and automation.
• Agriculture & Logistics: Weighing of bulk materials, livestock, or cargo.
• DIY Projects: Build your own heavy-duty scale with Arduino or Raspberry Pi.

What's Included

• 1x YZC-516C Load Cell (2000 kg)
• 3m shielded cable with stripped leads

Compatibility

• Works with HX711, ADS1232, and other load cell amplifiers.
• Compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers.
• Can be used with various PLCs and industrial control systems.

MOKWN Recommendation

For accurate weight measurement in heavy-duty applications, the YZC-516C is an excellent choice. Pair it with our HX711 amplifier and an Arduino board for a complete weighing solution. Whether you're in manufacturing, logistics, or DIY, this load cell offers the reliability and precision you need. Order today and get free shipping across Egypt!
