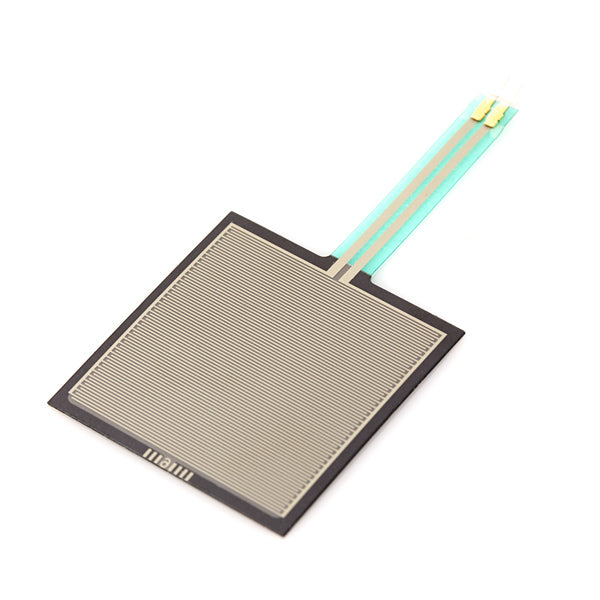

Force Sensitive Resistor Sensor (Square) made in USA

Overview

Meet the Force Sensitive Resistor (FSR) Sensor (Square) – a high-quality, made-in-USA pressure sensing solution from SparkFun. This robust sensor features a generous square sensing area (1.75 x 1.5 inches) that changes its electrical resistance in response to applied force. From feather-light touches to heavy presses, it accurately detects pressure from 100 grams up to 10 kilograms, making it an essential component for any electronics enthusiast, robotics engineer, or student.

Whether you're building a touch-sensitive interface, a weight measurement system, or an interactive art installation, this FSR offers reliable, analog output that your microcontroller can easily read. Its simple two-wire connection and low power consumption make it a breeze to integrate into your next project.

Key Features

• Pressure Sensing Range: Detects forces from 100g to 10kg, covering a wide spectrum of applications.
• Large Square Sensing Area: 1.75 x 1.5 inches (44.45 x 38.1 mm) provides ample surface for pressure application.
• Analog Output: Resistance varies inversely with force, allowing precise measurement via ADC.
• Made in USA: High-quality construction from SparkFun ensures reliability and consistency.
• Simple Integration: Two-pin interface, compatible with most microcontrollers (Arduino, Raspberry Pi, etc.).
• Low Power: Suitable for battery-powered projects.

Technical Specifications

• Model: SparkFun Force Sensitive Resistor (Square)
• Sensing Area: 1.75 x 1.5 inches (44.45 x 38.1 mm)
• Force Sensitivity Range: 100g to 10kg
• Resistance Range: ~1MΩ (no pressure) to ~1kΩ (max pressure)
• Connector: 2-pin (0.1" header compatible)
• Operating Temperature: -20°C to +85°C
• Size: 1.75 x 1.5 inches
• Country of Origin: USA

Applications & Use Cases

• Touch Sensing: Replace buttons with pressure-sensitive surfaces for a modern feel.
• Weight Measurement: Build a simple scale or load monitor for small objects.
• Robotics: Enable tactile feedback for robotic grippers or pressure-sensitive bumpers.
• Interactive Art: Create pressure-responsive installations or musical instruments.
• Wearables: Integrate into smart clothing to detect posture or activity.
• Educational Projects: Perfect for teaching physics, electronics, and programming.

What's Included

• 1x Force Sensitive Resistor Sensor (Square) – Made in USA

Compatibility

• Microcontrollers: Works with all microcontrollers that have an analog input (Arduino, Raspberry Pi Pico, ESP32, STM32, etc.).
• Connection: Connect one pin to ground and the other to an analog input with a pull-down resistor (e.g., 10kΩ) for a voltage divider.
• Libraries: No special library required; simple analogRead() or ADC functions work.

MOKWN Recommendation

This FSR is a must-have for any maker or engineer in Egypt looking to add pressure sensing to their projects. Its high quality and wide sensing range make it ideal for both prototyping and final products. Pair it with an Arduino or Raspberry Pi from our store to get started immediately. For best results, use a stable mounting surface and calibrate the sensor with known weights for accurate measurements.
