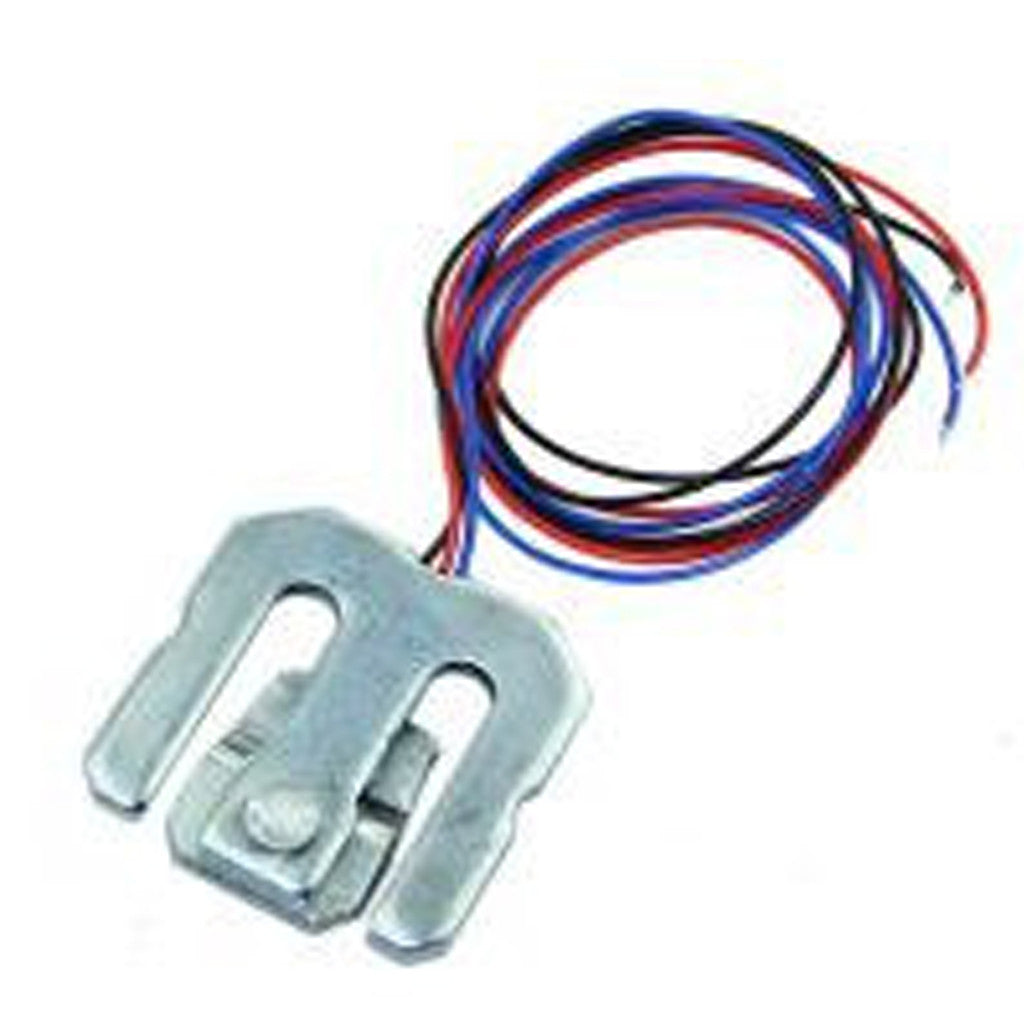

Weight Sensor (Load cell) 50kg

Overview

This 50kg weight sensor (load cell) is a fundamental component for any electronics project that requires accurate weight, force, or pressure measurement. It is a straight bar load cell that converts force into a measurable electrical signal, making it ideal for building digital scales, force gauges, and industrial automation systems. With a rated capacity of 50kg, it balances sensitivity and robustness, making it a versatile choice for both hobbyist and professional applications.

Key Features

• High Accuracy: Nonlinearity of 0.08% F.S. and repeatability of 0.05% F.S. ensure reliable measurements.
• Robust Construction: Designed to withstand up to 50kg load with a safe margin for typical applications.
• Standard Output: Rated output of 1.0 ± 0.1 mV/V, compatible with most load cell amplifiers and ADCs.
• Wide Operating Temperature: Works from -20°C to 65°C, suitable for most indoor and outdoor environments.
• Low Zero Balance: Zero balance of ±0.1000 mV/V ensures minimal offset for accurate readings.
• Easy to Integrate: Simple 4-wire configuration (excitation and signal) for quick connection to microcontrollers.

Technical Specifications

• Rated Load: 50kg
• Rated Output: 1.0 ± 0.1 mV/V
• Nonlinearity: 0.08% F.S.
• Hysteresis: 0.1% F.S.
• Repeatability: 0.05% F.S.
• Zero Balance: ±0.1000 mV/V
• Output Impedance: 1000 ± 10 Ω
• Temperature Effect on Zero: 0.02% F.S./°C
• Temperature Effect on Output: 0.02% F.S./°C
• Operating Temperature Range: -20°C to 65°C

Applications & Use Cases

• Digital Scales: Build precision scales for kitchen, laboratory, or industrial use.
• Force Measurement: Measure linear force in automation and robotics projects.
• Thrust Measurement: Monitor thrust in small engines or propellers.
• Weight-Based Monitoring: Create systems that trigger actions based on weight thresholds (e.g., fill-level detection).
• Educational Projects: Perfect for STEM and engineering students learning about sensors and instrumentation.

What's Included

• 1 x 50kg Load Cell (straight bar type)
• Note: Load cell amplifier (e.g., HX711) and wiring are not included but are available separately at MOKWN.

Compatibility

• Works with any microcontroller or PLC that can read analog voltage signals, such as Arduino, Raspberry Pi, ESP32, and STM32.
• Recommended to use with an HX711 load cell amplifier for best results (available separately).

MOKWN Recommendation

This 50kg load cell is an excellent choice for makers and engineers who need a reliable, cost-effective weight sensing solution. Pair it with our HX711 amplifier and an Arduino board to quickly prototype a digital scale. For industrial applications, consider our higher-capacity load cells. Always ensure proper mechanical mounting and calibration for optimal performance.
