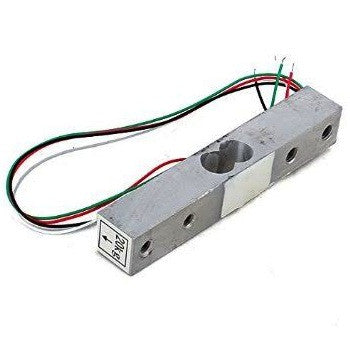

Weight Sensor (Load Cell) 20KG

Overview

Unlock precise weight measurement for your next project with the MOKWN 20KG Weight Sensor (Load Cell). This high-quality load cell is engineered for electronic balances, industrial scales, and DIY weighing systems, delivering accurate and repeatable force measurements. With a robust design and a 2mV/V output, it's the go-to choice for makers, students, and engineers across Egypt.

Key Features

• Precise 20KG Capacity: Ideal for a wide range of weighing applications, from kitchen scales to industrial monitoring.
• Reliable Output: Provides a stable 2mV/V output signal for easy interfacing with microcontrollers and ADCs.
• Wide Excitation Voltage Range: Compatible with 5-10VDC, making it versatile for various power supplies.
• Low Temperature Drift: Ensures accurate readings even with temperature variations (0.1% F.S zero drift, 0.05% F.S sensitivity drift).
• High Insulation Resistance: Over 2000MΩ, protecting against electrical interference for consistent performance.

Technical Specifications

• Rated Load: 20 Kg
• Output Sensitivity: 2 mV/V ± 0.15 mV/V
• Excitation Voltage: 5-10 VDC
• Insulation Resistance: ≥ 2000 MΩ
• Temperature Zero Drift: 0.1% F.S
• Temperature Sensitivity Drift: 0.05% F.S

Applications & Use Cases

• Electronic Balances: Build your own precision scale for laboratory or educational use.
• Industrial Weighing Systems: Integrate into conveyor belts, hoppers, or tank level monitoring.
• Robotics: Add force sensing to robotic arms or grippers for feedback control.
• IoT Projects: Create smart inventory systems that monitor stock levels in real-time.
• Agriculture: Measure produce weight for sorting and packaging lines.

What's Included

• 1x 20KG Weight Sensor (Load Cell)
• (Note: Load cell amplifier/HX711 not included; we recommend pairing with our HX711 module for easy Arduino interfacing.)

Compatibility

• Works with any microcontroller (Arduino, Raspberry Pi, ESP32, etc.) when paired with a load cell amplifier like the HX711.
• Compatible with our MOKWN HX711 Load Cell Amplifier Module (sold separately).

MOKWN Recommendation

For a complete weighing solution, pair this sensor with our HX711 amplifier and an Arduino or ESP32 board. This combination is perfect for creating accurate digital scales, smart bins, and industrial monitoring systems. Order now and start building with confidence!
