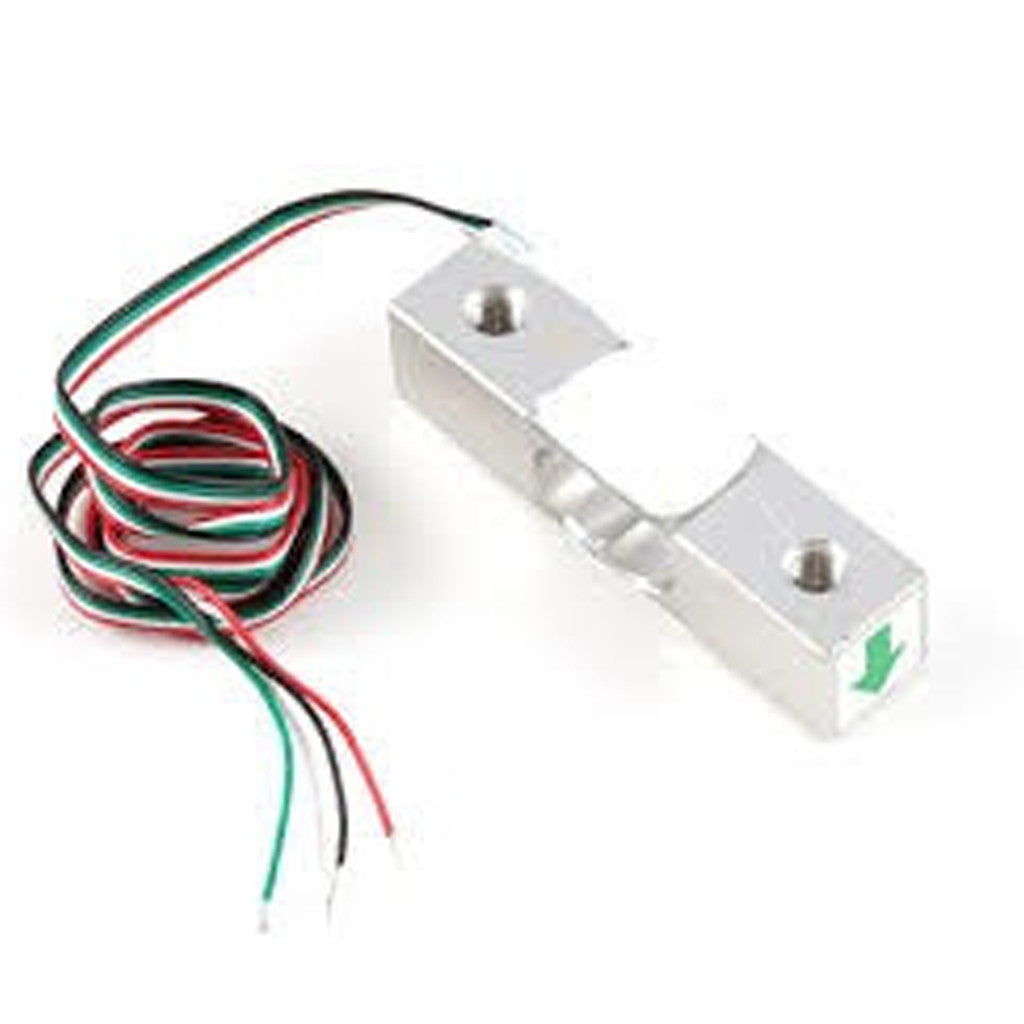

Weight Sensor (Load Cell) 10KG

Overview

Introducing the MOKWN 10KG Weight Sensor (Load Cell), a precision-engineered force sensor designed for electronic balances, industrial scales, and high-accuracy weighing applications. This load cell converts mechanical force into a measurable electrical signal, providing a reliable 1mV/V output for precise weight measurements. Whether you're building a smart scale, a force feedback system, or an automated dispensing machine, this sensor delivers the accuracy and durability you need.

Key Features

• 10kg Rated Load: Ideal for a wide range of weighing and force measurement applications.
• 1mV/V Output: Standard sensitivity ensures compatibility with most microcontroller ADCs and amplifier modules.
• High Accuracy: Output sensitivity of ±0.15mV/V guarantees precise and repeatable measurements.
• Robust Construction: Built to withstand demanding environments with excellent insulation resistance (≥2000MΩ).
• Low Drift: Temperature zero drift of 0.1% F.S and sensitivity drift of 0.05% F.S ensure stable performance across varying conditions.

Technical Specifications

• Rated Load: 10 Kg
• Output: 1 mV/V
• Excitation Voltage: 5-10 VDC
• Output Sensitivity: ±0.15 mV/V
• Insulation Resistance: ≥2000 MΩ
• Temperature Zero Drift: 0.1% F.S
• Temperature Sensitivity: 0.05% F.S

Applications & Use Cases

• Electronic Balances: Perfect for DIY digital scales and kitchen scales.
• Industrial Weighing: Use in hoppers, tanks, and conveyor belt scales.
• Robotics: Force sensing for grippers, end effectors, and load monitoring.
• IoT Projects: Build smart inventory systems that track weight in real-time.
• Educational Labs: Ideal for physics experiments and engineering coursework.

What's Included

• 1x 10KG Weight Sensor (Load Cell)
• (Note: Load cell amplifier like HX711 is not included but recommended for best results.)

Compatibility

• Works with any microcontroller (Arduino, ESP32, Raspberry Pi, etc.) when paired with an HX711 or similar load cell amplifier.
• Compatible with common load cell amplifier modules available at MOKWN.

MOKWN Recommendation

For a complete weighing solution, pair this load cell with our HX711 amplifier module and a microcontroller of your choice. This combination gives you accurate, real-time weight data for your projects. Order now and elevate your maker projects with professional-grade sensing!
