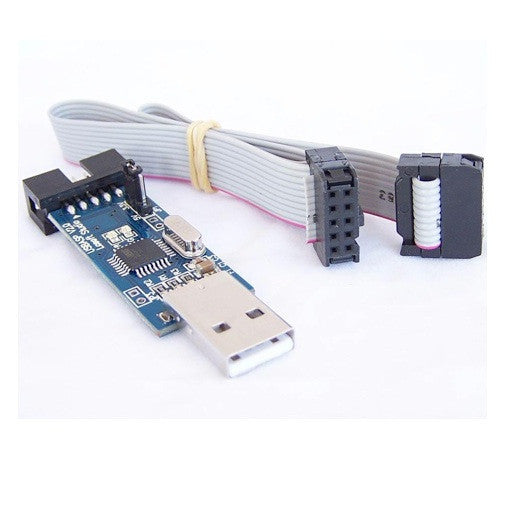

USBASP AVR Programmer

Overview

The USBASP AVR Programmer is a compact, USB-based in-circuit programmer designed for Atmel AVR microcontrollers. Based on the popular open-source design by Thomas Fischl, this programmer offers a reliable and cost-effective solution for flashing firmware onto AVR chips. It is an essential tool for hobbyists, students, and professionals working with embedded systems, robotics, and electronics projects. With its plug-and-play functionality and broad compatibility, the USBASP simplifies the programming process, making it accessible for both beginners and experienced developers.

Key Features

• USB Interface: Connects directly to your computer via USB, eliminating the need for a parallel port.
• In-Circuit Programming: Allows programming of AVR microcontrollers directly on the target board via ISP (In-System Programming).
• Fast Programming Speed: Supports high-speed programming modes for quick firmware updates.
• Wide Voltage Range: Operates with target voltages from 2.7V to 5.5V, ensuring compatibility with various AVR devices.
• Open-Source Design: Based on Thomas Fischl's open-source project, ensuring transparency and community support.
• LED Indicators: Provides visual feedback with power and programming status LEDs.
• Compact and Durable: Small form factor with a sturdy build, perfect for bench use and field projects.

Technical Specifications

• Interface: USB 1.1/2.0
• Target Voltage: 2.7V - 5.5V
• Programming Speed: Up to 5 kBytes/sec (with SCK option)
• Supported Microcontrollers: Atmel AVR series (ATmega, ATtiny, etc.)
• Dimensions: Approximately 45mm x 18mm
• Connector: 10-pin ISP header (standard 2x5 pin)
• LEDs: Power (green) and Programming (red/yellow)
• Firmware: Pre-loaded, compatible with AVRDUDE and other software

Applications & Use Cases

• Embedded Systems Development: Flash firmware onto AVR microcontrollers for custom projects.
• Robotics: Program motor controllers, sensors, and logic boards in robotic systems.
• Education: Ideal for students learning microcontroller programming and electronics.
• Prototyping: Quickly update code during development and testing.
• Repair and Maintenance: Reflash AVR chips in existing products or devices.
• DIY Electronics: Perfect for makers and hobbyists creating custom gadgets.

What's Included

• 1x USBASP AVR Programmer
• 1x 10-pin ISP ribbon cable
• (Optional) USB cable (if not built-in)

Compatibility

• Software: Compatible with AVRDUDE, Atmel Studio, and other AVR programming tools.
• Operating Systems: Windows, Linux, macOS (with appropriate drivers).
• Microcontrollers: Works with most Atmel AVR series, including ATmega8, ATmega328, ATtiny13, ATtiny85, and more.

MOKWN Recommendation

At MOKWN, we recommend the USBASP AVR Programmer for anyone starting with AVR microcontrollers or needing a reliable, budget-friendly programmer. It is a dependable tool that supports a wide range of AVR chips, making it a versatile addition to your electronics toolkit. Whether you are a student, hobbyist, or professional, this programmer will meet your programming needs efficiently.
