Arduino Mega Sensor Shield

Overview

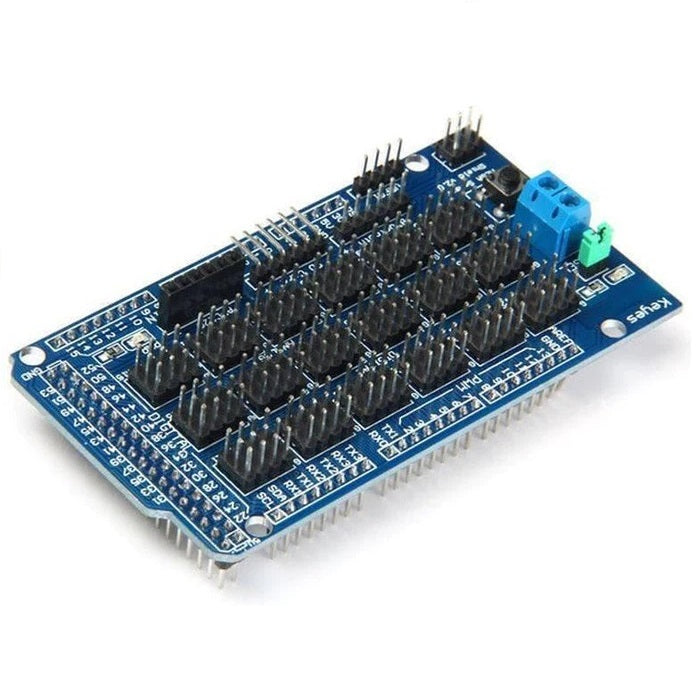

The Arduino Mega Sensor Shield is the ultimate expansion board for your Arduino Mega, designed to streamline your projects and make wiring a breeze. This shield breaks out all the pins of the Mega into a neatly organized layout, each labeled for easy identification, and adds dedicated power and ground rails. With this shield, you can connect multiple sensors, servos, and modules without the hassle of messy jumper wires, making it perfect for prototyping and permanent installations alike. It also includes an onboard SD card slot, allowing you to store data directly from your Arduino, ideal for data logging projects.

Key Features

• Effortless Connections: Clearly labeled pin headers for all Arduino Mega pins, making it easy to connect sensors, actuators, and modules.
• SD Card Slot: Onboard microSD card slot for data logging and storage, expanding your project's capabilities.
• Power & Ground Rails: Dedicated 5V, 3.3V, and GND rails provide convenient power distribution to multiple components.
• Robust Design: High-quality PCB with durable connectors, built to withstand repeated use.
• Easy to Use: Plug-and-play design, no soldering required – just stack it on your Arduino Mega and start wiring.

Technical Specifications

• Compatible with: Arduino Mega 2560 R3 and clones
• Board Dimensions: 101.5mm x 53.3mm (same as Arduino Mega)
• Pin Headers: All digital and analog pins broken out, labeled
• Power Rails: 5V, 3.3V, and GND rails
• SD Card Slot: MicroSD, supports SPI interface
• Connectors: Female and male headers for stacking and easy wiring
• Operating Voltage: 5V (supplied by Arduino Mega)

Applications & Use Cases

• Data Logging: Use the SD card slot to log sensor data for environmental monitoring, weather stations, or scientific experiments.
• Home Automation: Simplify wiring for multiple sensors and relays in home automation projects.
• Robotics: Connect multiple servos, motor drivers, and sensors to create complex robotic systems.
• Prototyping: Speed up prototyping by easily swapping out components without rewiring.
• Education: Ideal for teaching electronics and programming, making it easy for students to connect various modules.

What's Included

• 1x Arduino Mega Sensor Shield

Compatibility

• Arduino Mega 2560 R3 and compatible boards
• Works with all standard Arduino libraries and examples
• Supports a wide range of sensors and modules: ultrasonic, PIR, temperature/humidity, relays, and more.

MOKWN Recommendation

At MOKWN, we recommend the Arduino Mega Sensor Shield for makers and engineers who want to take their Mega projects to the next level. It's a must-have accessory for anyone working on complex projects that require multiple connections. Whether you're a hobbyist, student, or professional, this shield will save you time and reduce wiring errors. Pair it with our high-quality sensors and modules for a complete solution. Order yours today and experience the convenience!
