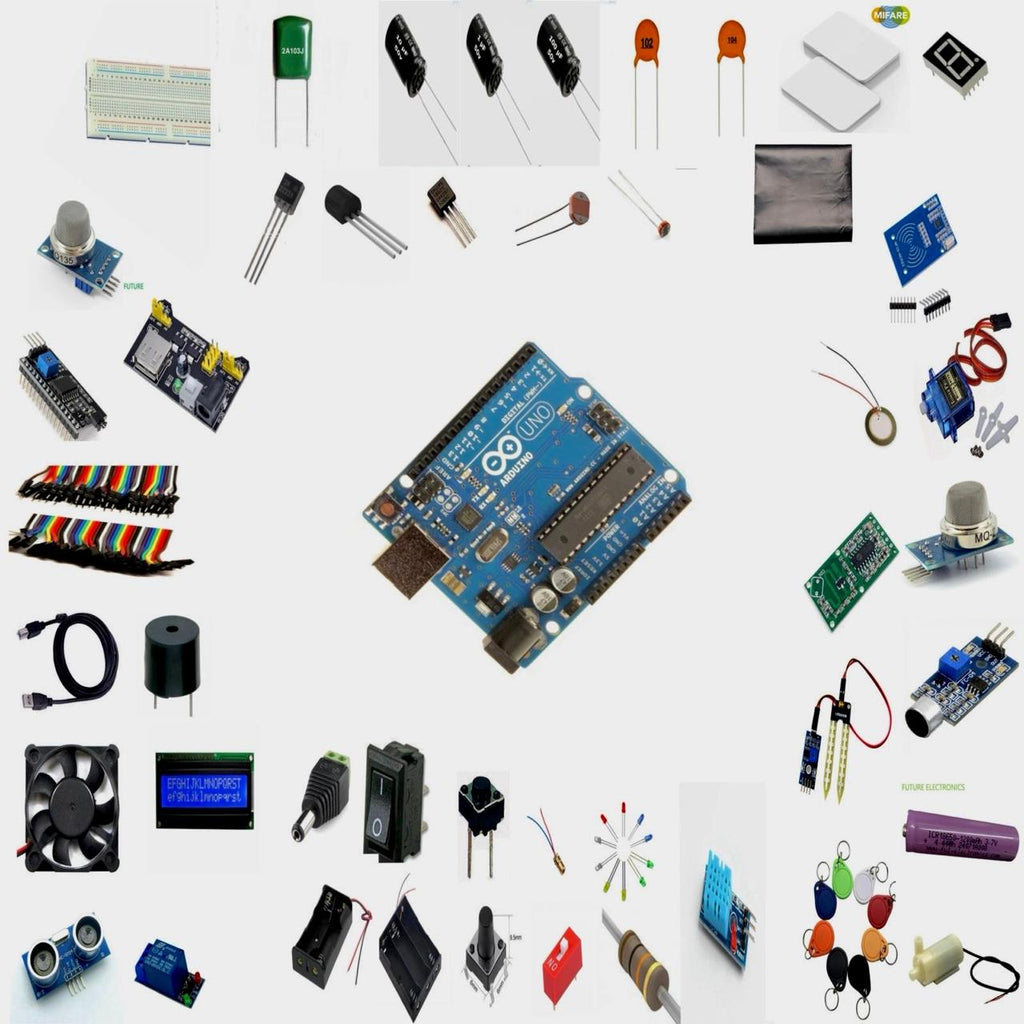

Arduino Advanced Starter Kit – 50+ Components

Included Components & Package Contents

• Arduino Uno R3 + USB Cable × 1
• Breadboard 840 Pin × 1
• Breadboard Jumper Wires × 65
• Male-Female Jumper Wires 200 mm × 40
• Female-Female Jumper Wires 200 mm × 40
• Male-Male Jumper Wires 120 mm × 40
• MB102 Breadboard Power Supply Module (3.3V / 5V) × 1
• 18650 Lithium-Ion Rechargeable Batteries (3.7V, 1200 mAh) × 5
• 2-Slot 18650 Battery Charger (Wall / Direct Plug) × 1
• 3-Cell 18650 Battery Holder (with Wire Leads) × 1
• 2-Cell 18650 Battery Holder × 1
• GP GREENCELL 9V Battery 6F22 (Model GP1604G-S1) × 1
• 9V Battery Adapters for Arduino × 2
• DC Barrel Jack Adapter (Male) × 1
• 16x2 LCD Shield with Push Keypad × 1
• I2C / SPI Character LCD Backpack Module × 1
• 7-Segment 4-Digit Display 0.56" (Common Cathode - Red) × 1
• 7-Segment Single-Digit Display 0.56" (Common Cathode - Red) × 2
• Membrane Keypad 16-Key (Matrix 4x4) × 1
• RFID Reader/Writer Module MFRC522 (13.56 MHz) × 1
• RFID Mifare Key Fob Tag (13.56 MHz) × 1
• RFID Proximity Card EM4100 (125 kHz) × 1
• Ultrasonic Distance Sensor Module (HC-SR04 type) × 1
• PIR Motion Sensor Module (Adjustable Sensitivity/Delay) × 1
• MQ-2 Smoke & Flammable Gas Sensor Module (Analog / Digital) × 1
• DHT11 Temperature & Humidity Sensor Module × 1
• DS18B20 Digital Temperature Sensor × 1
• Soil Moisture Sensor Module × 1
• Water Level / Raindrop Detection Sensor Module × 1
• Microphone Sound Detection Sensor Module × 1
• Large Photoresistor (LDR) × 1
• Standard Photoresistor (LDR / Photocell) × 1
• Piezo Vibration / Knock Sensor Element (35 mm) × 1
• SG90 Micro Servo Motor (180°, 1.6 kg·cm) × 1
• Submersible Mini DC Water Pump × 1
• 1-Channel Relay Module (5V) × 1
• Laser Diode Module (5mW, 650nm Red) × 1
• Piezo Buzzer (3V) × 1
• BC547 NPN Transistor (45V, 0.1A) × 1
• 2N2222 NPN Transistor × 1
• Resistors 10 kΩ × 40
• Resistors 220 Ω × 10
• Rotary Potentiometer (10 kΩ) × 1
• Polyester Film Capacitor 47nF 100V (2A473K) × 1
• Ceramic Capacitors 1nF 50V (102) × 2
• Red Round LEDs (5 mm) × 10
• Tactile Push Buttons (6×6 mm, 4-Pin) × 2
• Slide Switch (3-Pin SPDT) × 1
• Rocker Switch (On/Off) × 1
• Compartmentalized Plastic Storage Box × 1

---

Overview

Unlock the world of electronics and embedded programming with the Advanced Starter Kit for Arduino. Curated for students, hobbyists, educators, and makers, this all-in-one package provides everything required to progress from simple circuit experiments to complex, multi-sensor automation systems. By combining a genuine-form Arduino Uno R3 board, comprehensive power supplies, a wide sensor suite, and versatile actuators, this kit removes the friction of sourcing components individually.

---

Key Features

• Comprehensive Component & Sensor Selection: Includes atmospheric, acoustic, motion, distance, and gas sensors alongside essential mechanical and electronic actuators.
• Arduino Uno R3 Included: Pre-packaged with an ATmega328P-based microcontroller board and USB interface cable for immediate out-of-the-box coding.
• Versatile Display Options: Features a 16x2 LCD shield with onboard buttons, an I2C/SPI serial interface module, and multiple 7-segment LED display units.
• Complete Power System: Outfitted with rechargeable 18650 Li-ion cells, dedicated wall/direct charger, multi-cell battery holders, 9V supply with adapters, and an MB102 breadboard regulator module.
• Organized Storage: Housed in a durable, compartmentalized plastic container to protect pins and keep wiring neat and portable.

---

Technical Specifications

• Microcontroller Core: Arduino Uno R3 (ATmega328P, 16 MHz clock, 5V logic level)
• Sensing Modules: DHT11 (temperature/humidity), DS18B20 (1-Wire digital temperature), MQ-2 (gas/smoke), ultrasonic rangefinder, PIR infrared motion, analog soil hygrometer, water level detector, sound microphone, dual LDR light sensors, and piezo element.
• Actuation & Interface: SG90 9g servo motor, 5V relay module (up to 250VAC/10A switching), 5mW laser emitter, mini submersible pump, active buzzer, 4x4 matrix keypad, tactile switches, and potentiometer.
• Identification & Security: MFRC522 13.56 MHz RFID reader/writer module, Mifare key tag, and 125 kHz proximity ID card.
• Prototyping & Connectivity: Full-size 840-tie-point solderless breadboard, 65 flexible breadboard jumpers, and 120 ribbon jumper wires (M-F, F-F, M-M).

---

Applications & Project Ideas

• Automated Smart Irrigation: Combine the soil moisture sensor, relay module, and mini water pump to build an automated soil-monitoring and plant-watering rig.
• Home Security & Intrusion Detection: Deploy the PIR motion sensor, ultrasonic module, MQ-2 smoke detector, laser tripwire, and buzzer for full-room alarm systems.
• RFID Access Control: Implement secure door locks or check-in scanners using the MFRC522 RFID reader module and 4x4 matrix keypad.
• Environmental Weather Station: Read ambient temperature and humidity data using the DHT11 and DS18B20 sensors, rendering real-time graphs onto the 16x2 LCD shield or 4-digit display.

---

Compatibility

• Fully compatible with standard Arduino IDE, PlatformIO, and AVR-GCC toolchains.
• Uses standard Arduino pin spacing (2.54 mm / 0.1 in) and open-source library ecosystems (LiquidCrystal_I2C, DHT, OneWire, DallasTemperature, MFRC522, Servo, Keypad).

---

MOKWN Recommendation

At MOKWN, we believe the best way to master electronics is by hands-on experimentation. The Advanced Starter Kit for Arduino is our top recommendation for anyone entering embedded systems, IoT, and robotics. It provides all the necessary modules, power supplies, and wiring in a single portable kit, eliminating component hunting so you can concentrate entirely on building, programming, and learning.
