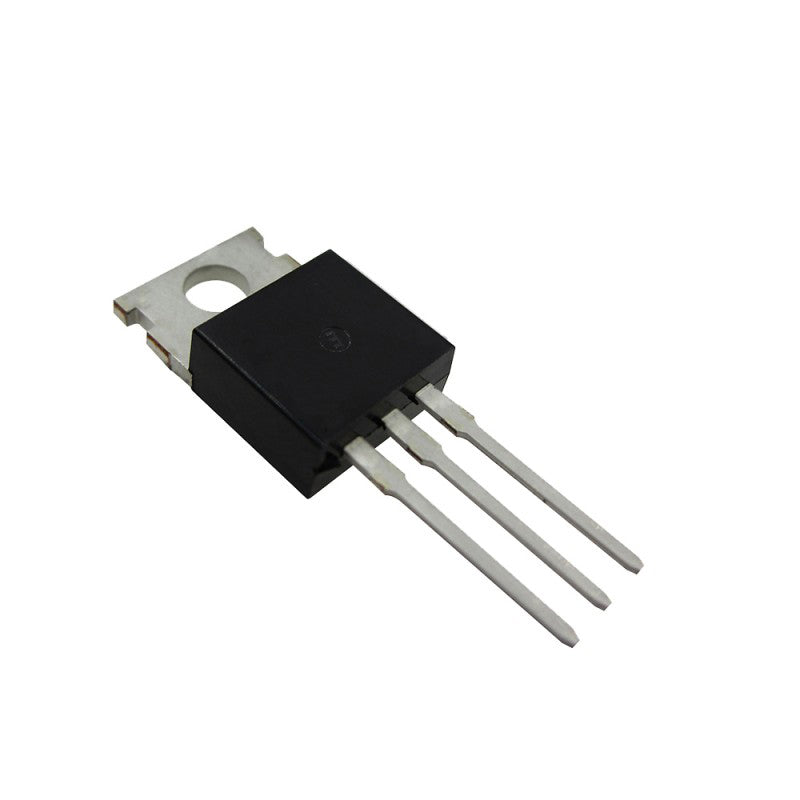

TIP42C Transistor (100V, 6A)

Overview

The TIP42C is a robust PNP silicon power transistor in a TO-220 package, designed for general-purpose switching and amplification in power electronics. With a collector-emitter breakdown voltage of 100V and a collector current rating of 6A, it can handle significant power loads (up to 65W). Its PNP polarity makes it a perfect complement to NPN transistors like the TIP41C, enabling efficient push-pull and H-bridge configurations. Whether you're driving motors, regulating power supplies, or building audio amplifiers, the TIP42C delivers reliable performance in a wide range of applications.

Key Features

• High Voltage & Current: 100V VCEO and 6A IC allow handling of moderately high-power loads.
• Power Dissipation: 65W maximum power dissipation ensures robust operation under demanding conditions.
• Complementary Pair: Pairs perfectly with the TIP41C (NPN) for push-pull and H-bridge circuits.
• Standard TO-220 Package: Easy to mount on heatsinks, widely available, and simple to solder.
• Reliable Switching: Fast switching and low saturation voltage make it suitable for PWM and switching regulators.

Technical Specifications

• Transistor Type: PNP
• Collector-Emitter Breakdown Voltage (VCEO): 100V (max)
• Collector Current (IC): 6A (max)
• Power Dissipation (PD): 65W
• Package: TO-220

Applications & Use Cases

• Motor Drivers: Control DC motors in robotics and automation projects.
• Power Supplies: Linear regulators, voltage regulators, and power switching circuits.
• Audio Amplifiers: Output stage in audio power amplifiers.
• H-Bridge Circuits: Used with TIP41C to drive bidirectional motors.
• General Switching: Relay drivers, solenoid drivers, and other high-current switching applications.

What's Included

• 1x TIP42C Transistor (TO-220 package)

Compatibility

• Complementary Pair: Use with TIP41C (NPN) for push-pull or H-bridge configurations.
• Microcontrollers: Can be driven by 5V logic via a base resistor or a driver IC (e.g., ULN2003) for higher current loads.
• Development Boards: Suitable for Arduino, Raspberry Pi, and other microcontroller projects when proper base drive is provided.

MOKWN Recommendation

The TIP42C is an essential component for any electronics enthusiast or professional working on power control projects. Its high current and voltage ratings make it versatile for a wide range of applications, and its compatibility with the TIP41C makes it a must-have for motor control and amplification circuits. We recommend stocking up on both TIP41C and TIP42C for your project needs. Order now and get same-day shipping across Egypt!
