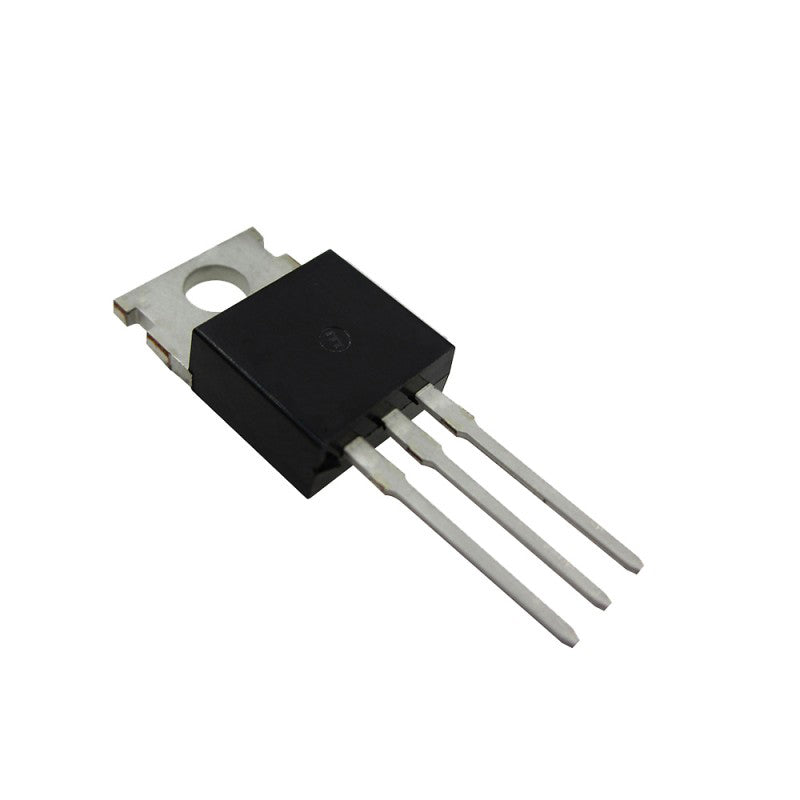

TIP102 Darlington Transistor (100V, 8A)

Overview

The TIP102 is a high-gain NPN Darlington transistor designed for demanding power-switching applications. With a collector-emitter breakdown voltage of 100V and a continuous collector current rating of 8A, it provides robust performance for controlling high-power loads. Its Darlington configuration delivers exceptionally high current gain, allowing low-current control signals to switch substantial loads, making it a staple component for motor drivers, solenoid actuators, and power supply circuits.

Key Features

• High Current Gain: Darlington pair configuration ensures extremely high current gain (hFE ≥ 1000), enabling direct control from microcontrollers with minimal base current.
• High Voltage Capability: Rated at 100V collector-emitter breakdown, suitable for a wide range of power applications.
• High Collector Current: Handles up to 8A continuous collector current, ideal for driving motors, relays, and high-power LEDs.
• TO-220 Package: Industry-standard package with excellent thermal performance, easy to mount on heatsinks.
• Low Saturation Voltage: Optimized for efficient switching with minimal power loss.
• Built-in Protection: Integrated free-wheeling diode prevents damage from inductive loads.

Technical Specifications

• Transistor Type: NPN Darlington
• Collector-Emitter Breakdown Voltage (Max): 100V
• Collector Current (Ic) (Max): 8A
• Power Dissipation (Max): 2W
• Package / Case: TO-220
• Mounting Type: Through Hole
• Operating Temperature Range: -65°C to +150°C (junction)

Applications & Use Cases

• Motor Control: Drive DC motors and stepper motors in robotics and automation projects.
• Power Switching: Control high-power loads such as relays, solenoids, and actuators.
• Power Supplies: Use in linear regulators and power switching circuits.
• LED Drivers: Drive high-current LED strips and lighting systems.
• Audio Amplifiers: Suitable for output stages in audio amplifier designs.
• Industrial Control: Interface low-voltage logic with high-power industrial equipment.

What's Included

• 1x TIP102 NPN Darlington Transistor (TO-220 package)

Compatibility

• Compatible with all major microcontrollers (Arduino, Raspberry Pi, ESP32, STM32) when used with appropriate base resistors.
• Drop-in replacement for TIP120, TIP121, TIP122, and similar Darlington transistors in most applications.
• Works with standard breadboards, PCBs, and prototyping systems.

MOKWN Recommendation

The TIP102 is an excellent choice for makers and engineers in Egypt looking for a reliable, high-current switching solution. Its high gain and robust specifications make it ideal for robotics, automation, and power control projects. We recommend pairing it with a suitable heatsink for continuous high-current operation. For your convenience, MOKWN also offers a wide range of complementary components, including resistors, heatsinks, and motor drivers.
