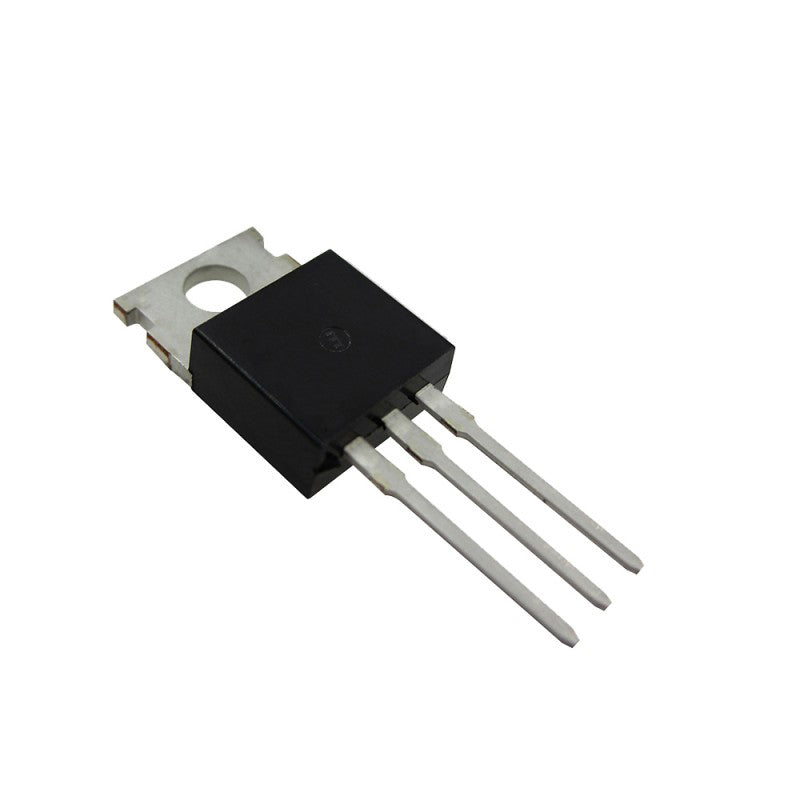

TIP125 Darlington Transistor (60V, 5A)

Overview

The TIP125 is a robust PNP Darlington transistor housed in a TO-220 package, designed for high-current switching and amplification applications. With a collector-emitter voltage rating of 60V and a continuous collector current of 5A, it excels at driving loads such as motors, relays, solenoids, and high-power LEDs. The Darlington configuration provides a very high current gain (hFE), allowing small base currents to control much larger load currents, making it ideal for interfacing microcontrollers with power-hungry peripherals.

Key Features

• High Current Gain: Darlington pair configuration ensures extremely high current gain (typically 1000 or more), enabling sensitive control.
• High Voltage & Current Ratings: 60V VCEO and 5A IC handle demanding power applications.
• Power Dissipation: Capable of dissipating up to 2W of power, suitable for moderate power loads.
• Standard TO-220 Package: Easy to mount on heatsinks for thermal management; compatible with standard prototyping techniques.
• PNP Polarity: Complements NPN transistors like TIP120 for push-pull and H-bridge circuits.

Technical Specifications

• Type: PNP Darlington
• Collector-Emitter Voltage (VCEO): 60V
• Collector Current (IC): 5A
• Power Dissipation (PD): 2W
• Package: TO-220
• DC Current Gain (hFE): 1000 (minimum at 3A)
• Transition Frequency (fT): 5 MHz (typical)

Applications & Use Cases

• Motor Control: Drive DC motors, stepper motors, and gear motors in robotics and automation projects.
• Relay & Solenoid Driving: Activate relays and solenoids with low-power logic signals.
• Power Switching: Switch high-current loads such as lamps, heaters, and power LEDs.
• Audio Amplification: Use as a power output stage in audio amplifier circuits.
• H-Bridge Circuits: Pair with NPN transistors (e.g., TIP120) to create H-bridges for bidirectional motor control.

What's Included

• 1 x TIP125 Darlington Transistor (TO-220 package)

Compatibility

• Microcontrollers: Works with Arduino, Raspberry Pi, ESP32, PIC, and other 3.3V/5V logic systems when using proper base resistors.
• Complementary Pair: Pairs with TIP120 (NPN) for complementary symmetry circuits.
• Prototyping: Compatible with breadboards, perfboards, and PCBs.

MOKWN Recommendation

For Egyptian makers and engineers, the TIP125 is a reliable, cost-effective choice for controlling high-power loads. Its TO-220 package makes it easy to mount on heatsinks, and its high gain simplifies interfacing with microcontrollers. Whether you're building a robot, an automation system, or an audio amplifier, this transistor delivers dependable performance. Pair it with a proper base resistor (typically 1kΩ to 4.7kΩ) to ensure safe operation with your logic signals.
