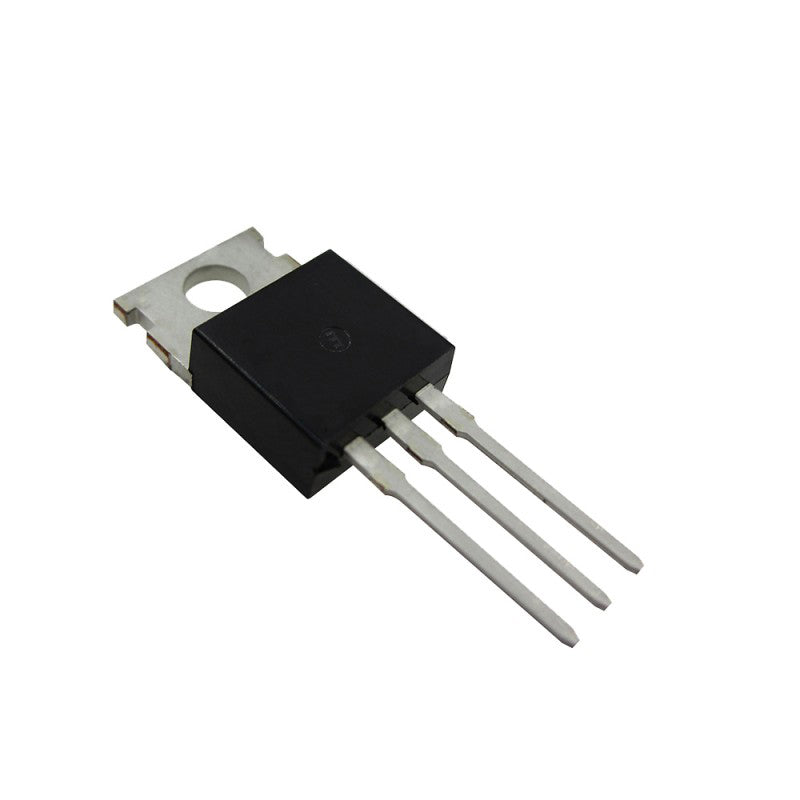

TIP132 Darlington Transistor (100V, 8A)

Overview

The TIP132 Darlington Transistor is a robust NPN Darlington pair designed for high-current switching and amplification applications. With a collector-emitter breakdown voltage of 100V and a continuous collector current of up to 8A, this TO-220 packaged device is engineered to handle demanding loads with ease. The Darlington configuration provides exceptionally high current gain (hFE), making it ideal for driving motors, relays, solenoids, and other power-hungry components directly from low-current control signals.

Whether you're building an industrial control system, a robotics project, or an audio amplifier, the TIP132 offers reliable performance and straightforward integration into your designs.

Key Features

• High Current Gain (hFE): Darlington pair ensures high current amplification, reducing the drive current required from your control circuit.
• High Voltage Rating: 100V collector-emitter breakdown voltage allows switching higher voltage loads.
• High Collector Current: Supports up to 8A continuous collector current, suitable for heavy loads.
• TO-220 Package: Industry-standard package with excellent thermal performance and easy mounting on heatsinks.
• Power Dissipation: 2W maximum power dissipation (with proper heatsinking) for reliable operation.

Technical Specifications

| Parameter | Value | |-----------|-------| | Type | NPN Darlington Transistor | | Collector-Emitter Voltage (Vceo) | 100V | | Collector Current (Ic) | 8A | | Power Dissipation (Max) | 2W | | Package / Case | TO-220 |

Applications & Use Cases

• Motor Control: Drive DC motors, stepper motors, and solenoid actuators in robotics and automation projects.
• Relay Driving: Activate high-power relays with low-current logic signals.
• Power Switching: Control high-current loads in power supplies, inverters, and lighting systems.
• Audio Amplification: Use in audio amplifier output stages where high current gain is required.
• LED Drivers: Drive high-power LED arrays and strips.
• General Power Switching: Replace multiple discrete components in switching circuits.

What's Included

• 1x TIP132 Darlington Transistor (TO-220 package)

Compatibility

• Works with standard microcontrollers (Arduino, Raspberry Pi) via a base resistor.
• Compatible with TIP120, TIP121, TIP122, and TIP125 series footprints (same TO-220 pinout).
• Can be used as a substitute for other Darlington transistors with similar ratings (e.g., TIP110, TIP111, TIP112).

MOKWN Recommendation

The TIP132 is an excellent choice for hobbyists and professionals who need a reliable high-current switching solution. Its high gain means you can drive it directly from a microcontroller pin (with a suitable base resistor), simplifying your circuit design. For best thermal performance, always mount it on a heatsink when operating at high currents. At MOKWN, we recommend stocking the TIP132 for your power control and motor driving projects—it's a versatile component that belongs in every maker's toolbox.

Order the TIP132 today and power up your projects with confidence!
