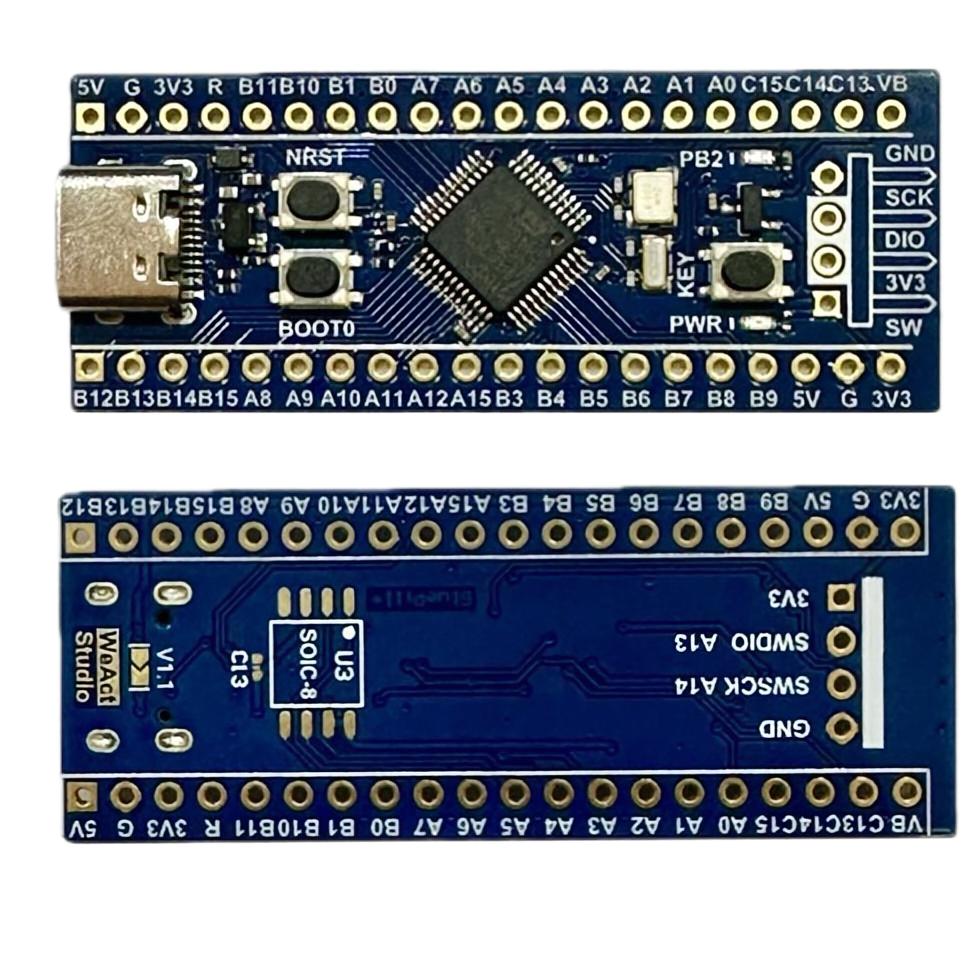

STM32F103C8T6 - STM32 Development Board original (The Blue Pill) WEACT

Overview

The STM32F103C8T6 (Blue Pill) is a highly popular and powerful ARM Cortex-M3 development board, originally designed by WEACT. It has become a staple for hobbyists, students, and professionals alike. With its 72 MHz CPU, 64 KB of Flash, and 20 KB of SRAM, it offers significantly more processing power and memory than typical 8-bit boards. This version features a USB Type-C connector, making it modern and convenient for development and power.

Key Features

• Powerful ARM Cortex-M3 Core: 32-bit CPU running at up to 72 MHz, providing high performance for complex applications.
• Ample Memory: 64 KB Flash and 20 KB SRAM for code and data storage.
• Versatile Connectivity: Includes I2C, SPI, UART, CAN, and USB interfaces for a wide range of peripherals.
• Modern USB Type-C Port: Easy to connect and program, with no need for a separate USB-to-serial adapter.
• Arduino IDE Compatible: Program it using the familiar Arduino IDE, making it easy for beginners to get started.
• Low Power Consumption: Operates from 2V to 3.6V, suitable for battery-powered projects.
• Original WEACT Design: High-quality board with proper components and layout, ensuring reliability.

Technical Specifications

• Microcontroller: STM32F103C8T6
• CPU: ARM 32-bit Cortex-M3
• CPU Frequency: 72 MHz
• Flash Memory: 64 KB
• SRAM: 20 KB
• Operating Voltage: 2 V to 3.6 V
• Communication Interfaces: I2C, SPI, UART, CAN, USB Type-C

Applications & Use Cases

• Robotics: Control motors, sensors, and actuators in autonomous robots.
• IoT Projects: Connect to the internet via ESP8266/ESP32 modules or Ethernet shields.
• Home Automation: Build smart home devices with relays, sensors, and displays.
• Data Logging: Record sensor data to SD cards or via USB.
• Education: Perfect for learning embedded systems and ARM architecture.
• Prototyping: Rapidly develop and test firmware before moving to custom PCBs.

What's Included

• 1x STM32F103C8T6 (Blue Pill) Development Board (WEACT original)

Compatibility

• Arduino IDE: Fully compatible with the STM32duino core.
• Programming: Can be programmed via USB Type-C (using the built-in bootloader) or via SWD (Serial Wire Debug) pins.
• Peripherals: Works with a wide range of sensors, actuators, and modules that support 3.3V logic.

MOKWN Recommendation

The STM32F103C8T6 is an excellent choice for makers looking to upgrade from 8-bit boards. Its high performance and rich features make it ideal for advanced projects. We recommend it for robotics, IoT, and educational purposes. At MOKWN, we ensure you receive the original WEACT version with the USB Type-C port for a seamless experience. Order now to take your projects to the next level!
