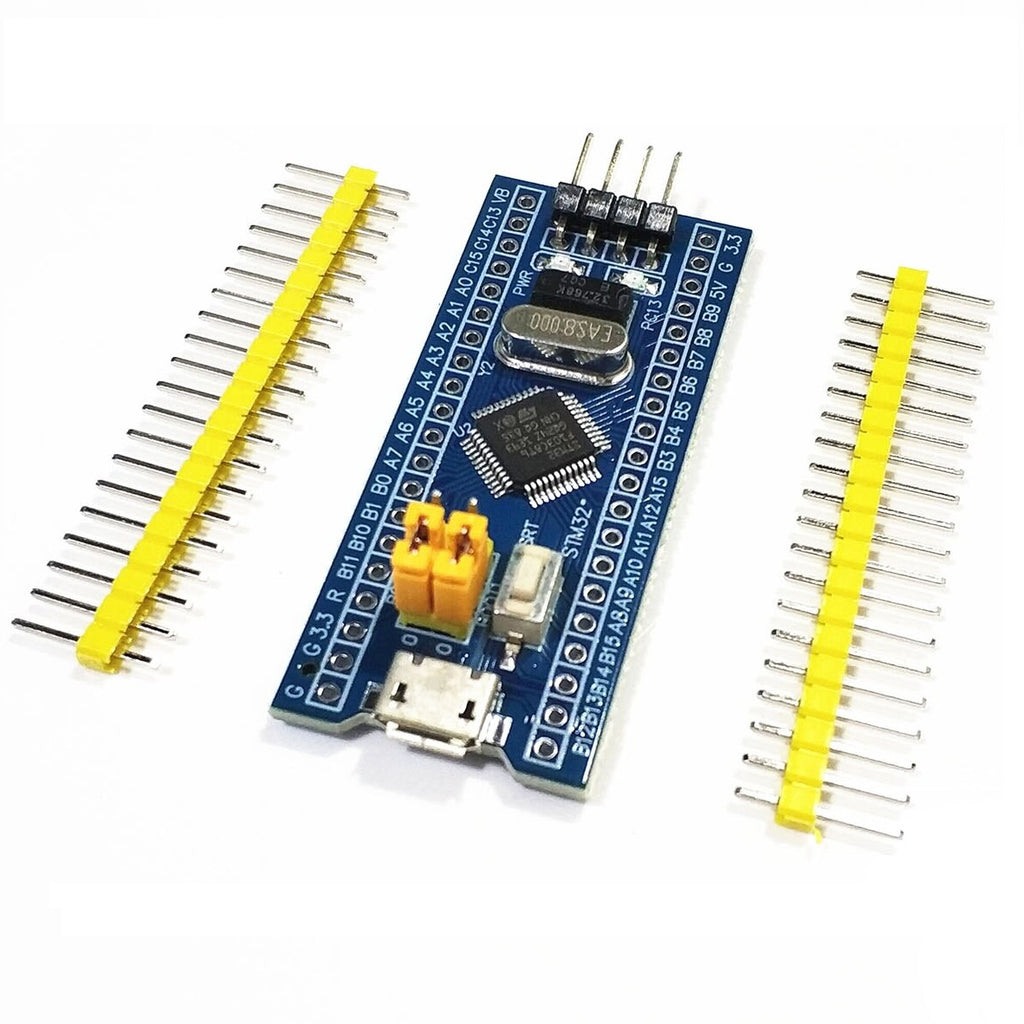

STM32F103C6T6 (STM32 Minimum System Development Board)

Overview

The STM32F103C6T6 Minimum System Development Board is a compact and cost-effective development platform built around the STMicroelectronics STM32F103C6T6 microcontroller. This board is designed for makers, students, and engineers who need a powerful ARM Cortex-M3 core for their projects. With its minimal footprint and essential components, it's perfect for prototyping, learning embedded systems, and integrating into custom PCBs or IoT devices.

Key Features

• ARM Cortex-M3 Core: High-performance 32-bit processor running at up to 72 MHz.
• Compact Design: Minimal system board with all necessary components for quick start.
• Arduino IDE Support: Program easily using the familiar Arduino environment.
• Rich Peripherals: Includes I2C, SPI, UART, CAN, and USB interfaces for versatile connectivity.
• Wide Voltage Range: Operates from 2V to 3.6V, allowing flexible power options.
• Ample Memory: 32KB Flash and 10KB SRAM for moderate complexity applications.

Technical Specifications

• Microcontroller: STM32F103C6T6 (ARM Cortex-M3)
• Max CPU Frequency: 72 MHz
• Flash Memory: 32 KB
• SRAM: 10 KB
• Operating Voltage: 2V to 3.6V
• Communication Interfaces: I2C, SPI, UART, CAN, USB

Applications & Use Cases

• Embedded Systems Education: Ideal for learning ARM programming and microcontroller fundamentals.
• Prototyping: Quickly test firmware and hardware designs before mass production.
• IoT Projects: Connect sensors and actuators for smart home, environmental monitoring, and automation.
• Robotics: Use as the brain for small robots, motor control, and sensor fusion.
• DIY Electronics: Build custom gadgets, data loggers, and control systems.

What's Included

• 1x STM32F103C6T6 Minimum System Development Board

Compatibility

• Programming: Compatible with STM32CubeIDE, Keil MDK, and Arduino IDE (via STM32duino).
• Debugging: Supports SWD (Serial Wire Debug) via standard header.
• Power: Can be powered via USB (with external adapter) or 3.3V/5V pins.

MOKWN Recommendation

For Egyptian makers and engineers, this board is a fantastic entry point into the world of 32-bit ARM microcontrollers. Its low cost and Arduino IDE support make it accessible for beginners, while its performance and communication options satisfy advanced projects. Pair it with MOKWN's range of sensors and modules to accelerate your development.
