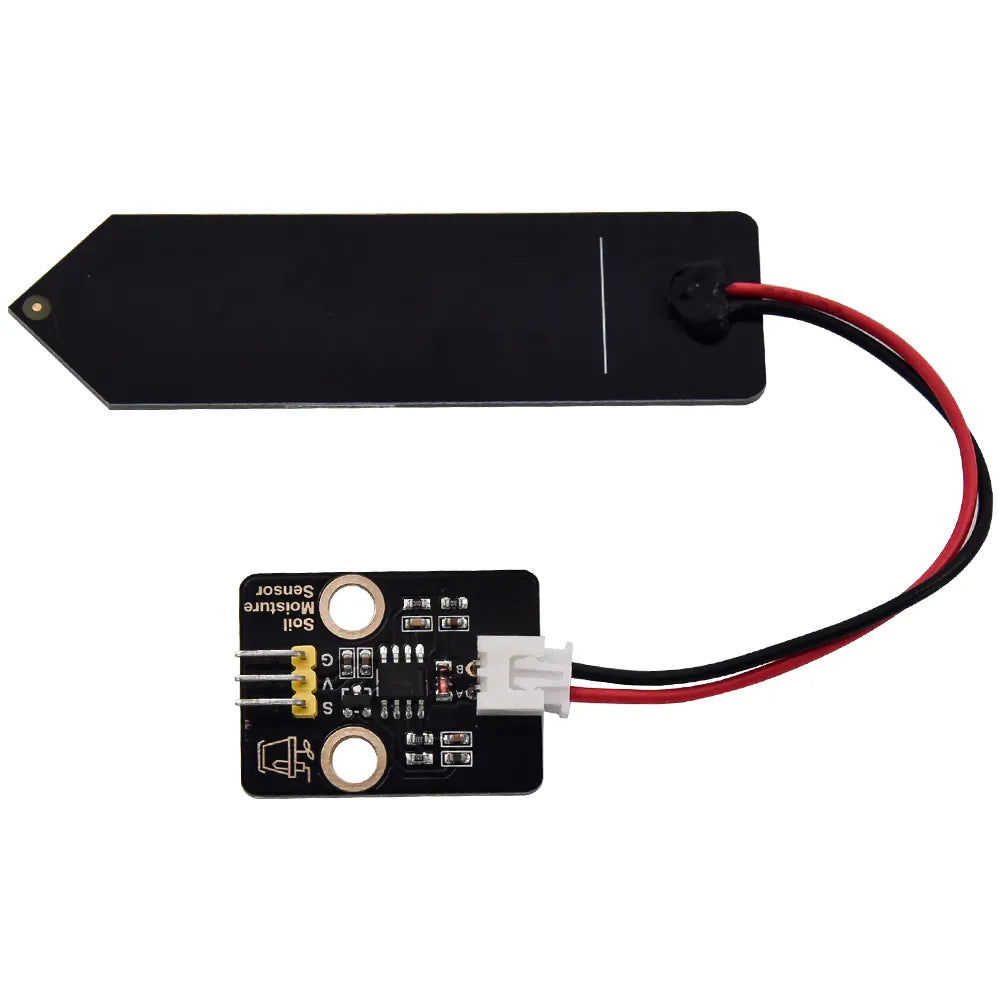

Soil Humidity / Moisture Sensor (New Type - Capacitive Sensor)

Overview

Monitor soil moisture levels with precision using the New Type Capacitive Soil Moisture Sensor. Unlike traditional resistive sensors, this capacitive sensor measures soil moisture without metal probes touching the soil, preventing corrosion and ensuring long-term reliability. Ideal for smart gardening, greenhouse automation, and agricultural IoT projects, this sensor is compatible with Arduino, ESP32, and other microcontrollers.

Key Features

• Capacitive sensing technology: No exposed metal probes, reducing corrosion and extending sensor lifespan.
• Corrosion-resistant: Suitable for long-term installation in soil.
• Analog output: Provides a voltage signal proportional to soil moisture, easy to read with any ADC.
• Low power consumption: Ideal for battery-powered IoT applications.
• Wide compatibility: Works with Arduino, ESP32, Raspberry Pi, and other microcontrollers.
• Easy to use: Simple wiring and code examples available.

Technical Specifications

• Operating Voltage: 3.3V – 5.5V DC
• Output Signal: Analog voltage (0-3.0V typical)
• Sensor Type: Capacitive
• Probe Material: Anti-corrosion coating (no exposed metal)
• Dimensions: 98mm x 23mm (approx.)
• Cable Length: 20cm (approx.)
• Connector: 3-pin header (VCC, GND, SIG)
• Compatibility: All microcontrollers with analog input

Applications & Use Cases

• Smart gardening: Automate watering systems for indoor plants and greenhouses.
• Agricultural monitoring: Track soil moisture in farms and orchards.
• Environmental science projects: Collect data for research and education.
• IoT systems: Integrate with ESP32 or Raspberry Pi for remote monitoring.
• Home automation: Trigger irrigation based on real-time soil conditions.

What's Included

• 1x Capacitive Soil Moisture Sensor Module
• 1x 3-pin connector cable (optional, depending on package)

Compatibility

• Arduino (Uno, Mega, Nano, etc.)
• ESP32, ESP8266
• Raspberry Pi (with ADC)
• STM32, PIC, and other microcontrollers with analog input

MOKWN Recommendation

This capacitive sensor is a must-have for any smart agriculture or gardening project. Its durability and accuracy make it a superior choice over resistive sensors. For a complete setup, consider pairing it with a relay module and a water pump to build an automated irrigation system. Available now at MOKWN Egypt – your trusted source for electronics components.
