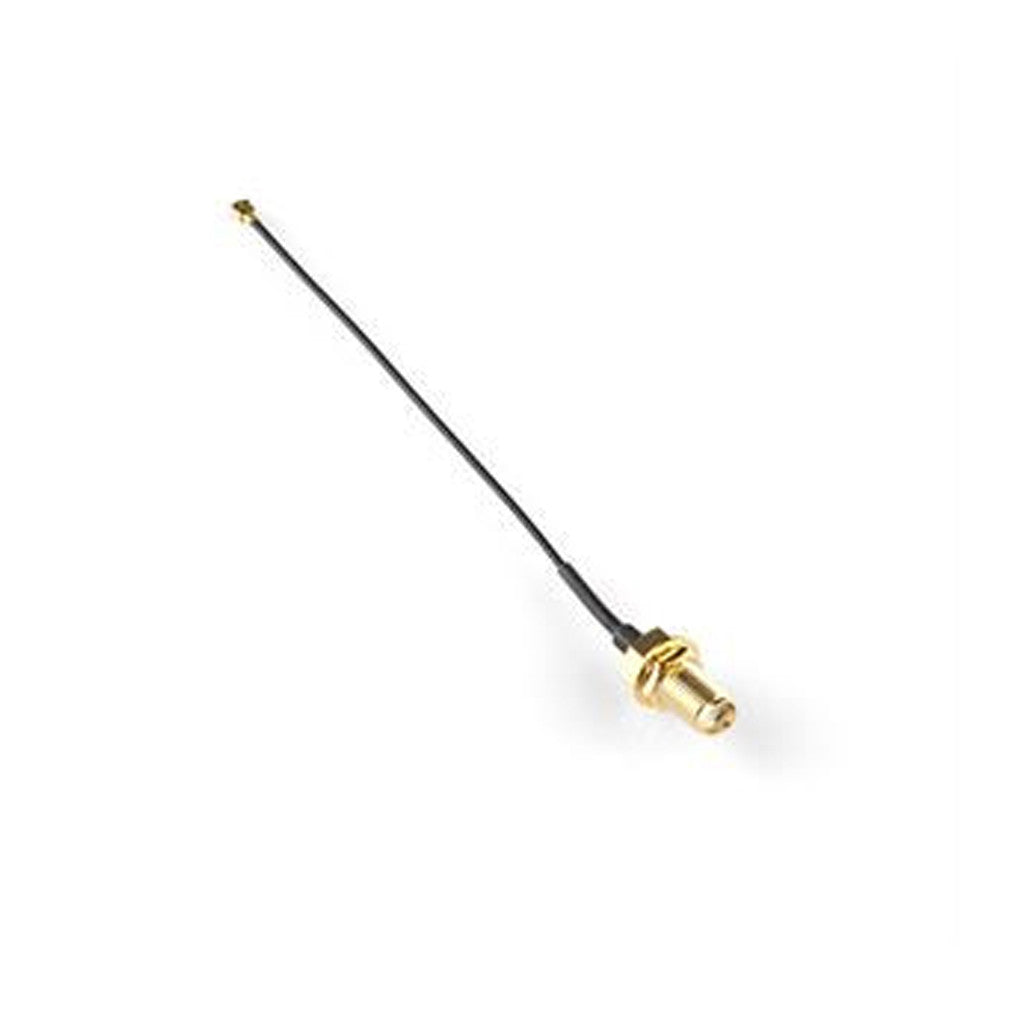

SMA female to UFL Cable

Overview

Connect your RF modules and antennas with confidence using the MOKWN SMA Female to UFL Cable. This precision-engineered cable is an essential tool for any maker, hobbyist, or engineer working with wireless projects. It bridges the gap between devices that use the compact UFL (also known as IPEX) connector and those that require the standard SMA connector, enabling seamless integration of Wi-Fi modules, GSM/GPS modules, LoRa transceivers, and external antennas. Designed for minimal signal loss and reliable performance up to 12.4 GHz, this cable ensures your RF projects operate at their peak.

Key Features

• High-Frequency Performance: Supports frequencies from DC to 12.4 GHz, making it suitable for a wide range of wireless applications.
• Low VSWR: With a VSWR of ≤1.10 + 0.02f, signal reflection is minimized, ensuring efficient power transfer.
• Standard 50Ω Impedance: Matches the impedance of most RF modules and antennas, preventing signal degradation.
• Durable Construction: Built with quality materials to withstand repeated bending and connection cycles.
• Compact and Flexible: The 150mm length provides flexibility in tight enclosures, while the slim 1.13mm profile fits into small spaces.

Technical Specifications

• Connector Type: SMA Female to UFL (IPEX)
• Impedance: 50Ω
• Frequency Range: DC ~ 12.4 GHz
• VSWR: ≤1.10 + 0.02f
• Cable Length: 150mm
• Cable Dimensions: 1.13mm x 1.13mm

Applications & Use Cases

• IoT Prototyping: Connect UFL-equipped Wi-Fi modules (ESP8266, ESP32) to external SMA antennas for extended range.
• GPS/GNSS Systems: Interface GPS modules with external antennas for better satellite reception.
• LoRa Communication: Enhance LoRa transceiver range by connecting to high-gain SMA antennas.
• GSM/4G Modules: Attach external antennas to cellular modules for improved signal strength.
• RF Testing: Use as a test lead for RF equipment that requires SMA connections.

What's Included

• 1x SMA Female to UFL Cable (150mm)

Compatibility

• Works with any device that has a UFL/IPEX connector and any antenna or device with an SMA male connector. Commonly used with ESP32, ESP8266, nRF24L01, SIM800, SIM7600, and various GPS modules.

MOKWN Recommendation

This cable is a must-have for any wireless project where signal quality is critical. Whether you're building a smart home device, a drone, or a remote monitoring system, the MOKWN SMA Female to UFL Cable ensures reliable connectivity. Order today and experience the difference in your RF performance!
