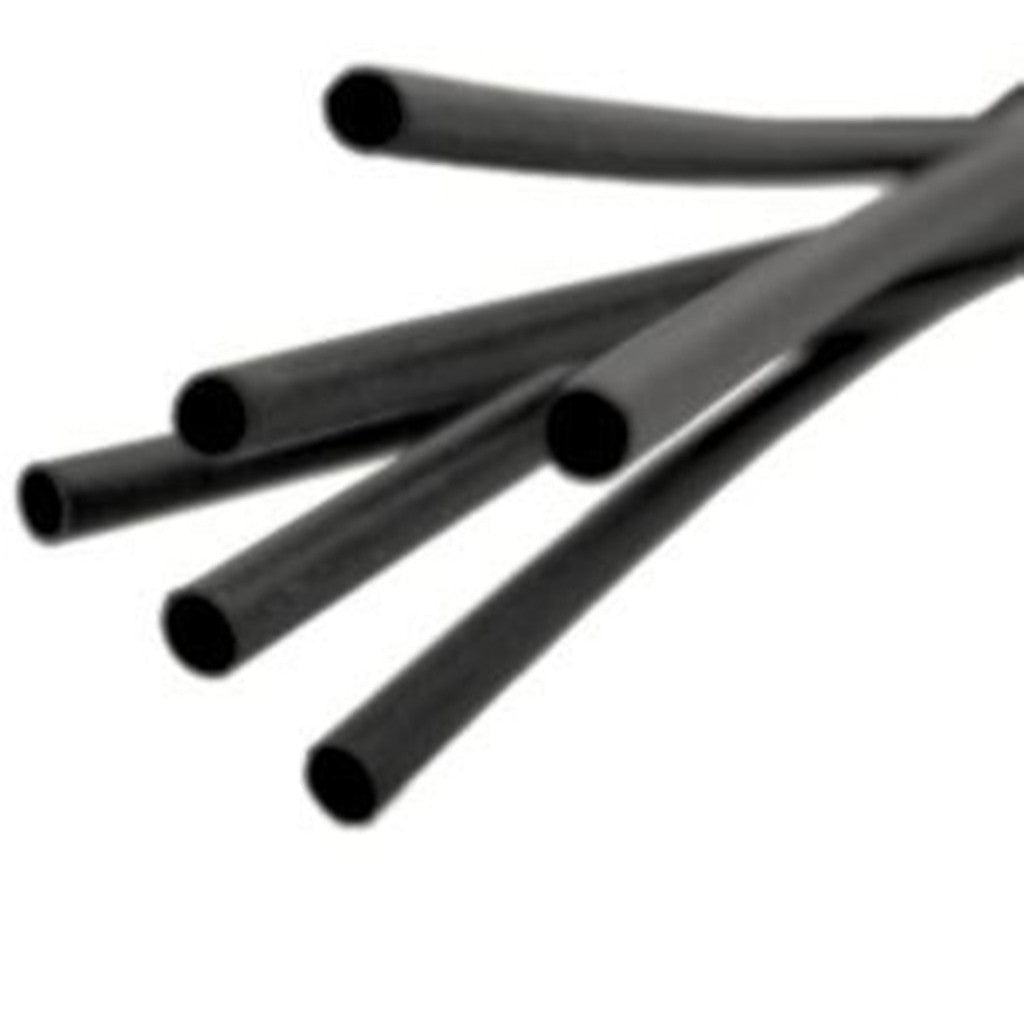

Heat Shrink (16mm - 100cm)

Overview

Give your electronics projects a professional finish and durable protection with the MOKWN Heat Shrink (16mm - 100cm). This high-quality, flexible polyolefin tubing shrinks to half its diameter when heated, creating a secure, insulating seal around wire splices, connectors, terminals, and components. Perfect for DIY enthusiasts, robotics builders, and professional technicians in Egypt, this 1-meter length offers ample material for multiple applications.

Key Features

• Reliable Insulation: Provides excellent electrical insulation and protection against short circuits.
• Secure Fit: Radially shrinks by at least 50%, conforming tightly to the underlying component.
• Durable Construction: Made from flexible, flame-retardant, cross-linked polyolefin for long-lasting performance.
• Wide Temperature Range: Operates effectively from -55°C to 125°C, suitable for demanding environments.
• Easy to Use: Simply slide over the connection and apply heat with a heat gun or lighter for a quick, clean finish.

Technical Specifications

• Diameter (Before Shrink): 16mm
• Diameter (After Shrink): 8mm
• Radial Shrinkage: 50% Min
• Longitudinal Shrinkage: 5% Max
• Material: Flexible Flame Retardant & Cross-Linked Polyolefin
• Shrink Temperature: 90°C
• Operating Temperature: -55°C ~ 125°C
• Tensile Strength: 10.4 MPa
• Length: 100cm (1 meter)

Applications & Use Cases

• Wire & Cable Insulation: Protect soldered joints and wire splices in electronics projects.
• Connector Protection: Insulate and strain-relieve connectors, terminals, and lugs.
• Robotics & Drones: Safely route and protect wiring in robots, drones, and RC vehicles.
• Automotive & Marine: Repair and protect wiring harnesses in vehicles and boats.
• 3D Printer Builds: Secure and insulate wiring in custom 3D printer builds and upgrades.
• General Repairs: Use for cable management, color-coding, and protecting cables from abrasion.

What's Included

• 1 x Heat Shrink Tube (16mm diameter, 100cm length)

Compatibility

This heat shrink is ideal for wires and cables with diameters up to 15mm (before shrinking). It provides a tight, secure fit around connectors, terminals, and components up to 8mm in diameter after shrinking. Compatible with most heat guns, soldering stations, or a lighter.

MOKWN Recommendation

For best results, cut the heat shrink to the desired length, slide it over the connection before soldering or crimping, and then apply heat evenly until it conforms tightly. This heat shrink is an essential addition to any electronics toolkit in Egypt, ensuring your projects are safe, durable, and professional.
