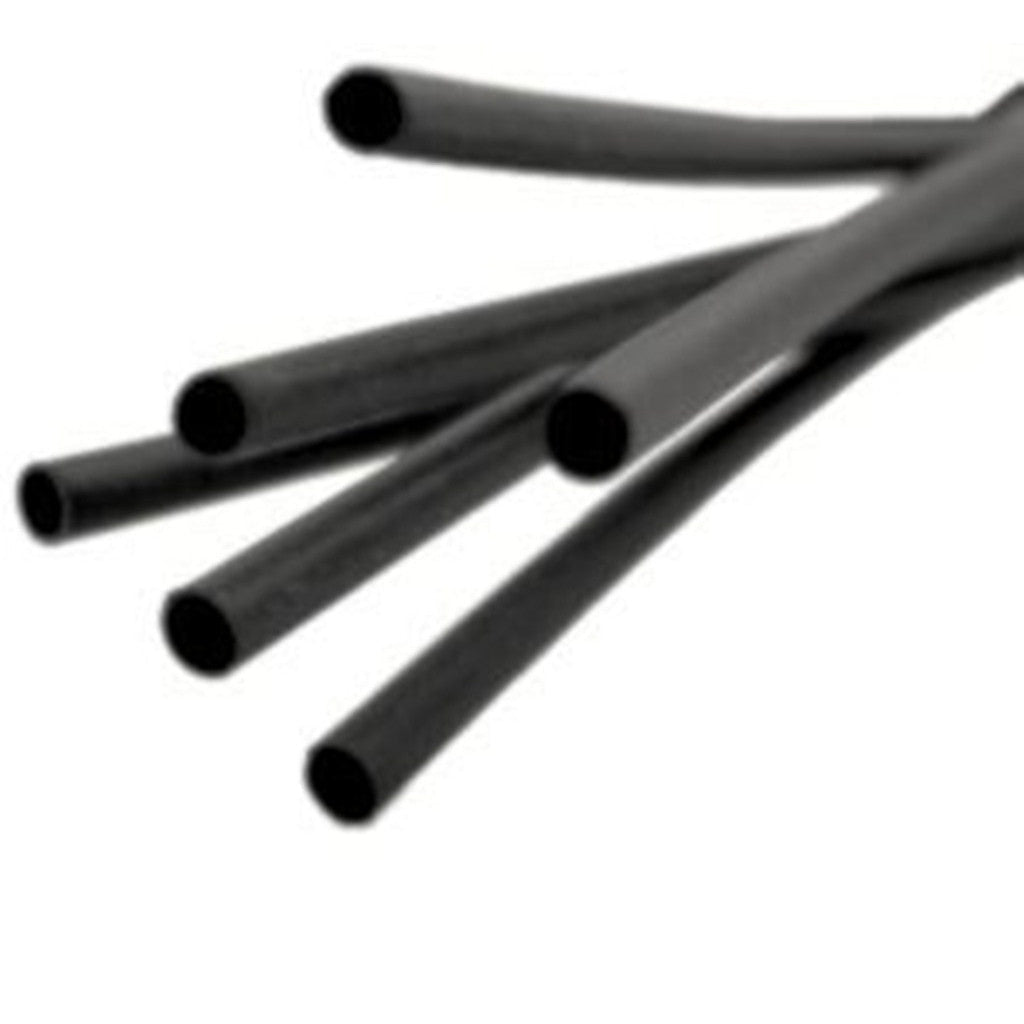

Heat Shrink (14mm - 100cm)

Overview

Protect your electronic projects with the MOKWN Heat Shrink Tubing (14mm - 100cm). This high-quality tubing is engineered for durability and safety, making it essential for insulating wires, cable bundling, and component protection. With a 14mm diameter before shrinking and 7mm after, it provides a secure, tight fit for a variety of applications. Made from flexible, flame-retardant, cross-linked polyolefin, it offers excellent electrical insulation and mechanical protection.

Key Features

• High Shrink Ratio: 2:1 shrink ratio (14mm to 7mm) ensures a snug fit.
• Flame Retardant: VW-1 rated for enhanced safety.
• Wide Temperature Range: Operates from -55°C to 125°C.
• Fast Shrinking: Shrinks at 90°C with a heat gun or hot air tool.
• Durable Material: Cross-linked polyolefin resists abrasion and chemicals.
• Convenient Length: 100cm length provides ample material for multiple projects.

Technical Specifications

• Material: Flexible Flame Retardant & Cross-Linked Polyolefin
• Flammability Rating: VW-1
• Diameter Before Shrink: 14mm
• Diameter After Shrink: 7mm
• Radial Shrinkage: 50% Min
• Longitudinal Shrinkage: 5% Max
• Shrink Temperature: 90°C
• Operating Temperature: -55°C to 125°C
• Tensile Strength: ≥10.4 MPa

Applications & Use Cases

• Wire Insulation: Cover exposed wires and solder joints to prevent short circuits.
• Cable Bundling: Group wires together neatly for organized wiring.
• Component Protection: Shield sensors, connectors, and terminals from moisture and abrasion.
• Robotics Projects: Insulate motor wires and connections in DIY robots.
• Automotive & Home: Repair and protect cables in cars, appliances, and electronics.

What's Included

• 1 x Heat Shrink Tubing (14mm - 100cm)

Compatibility

• Works with wires and cables up to 14mm diameter (before shrinking).
• Ideal for use with MOKWN's range of connectors, sensors, and microcontrollers.
• Requires a heat gun, hair dryer, or hot air tool for shrinking (not included).

MOKWN Recommendation

For reliable insulation and protection in your electronics projects, the MOKWN Heat Shrink Tubing is a must-have. Its flame-retardant properties and durable construction make it perfect for both beginners and professionals. Order now and ensure your connections are safe and secure!
