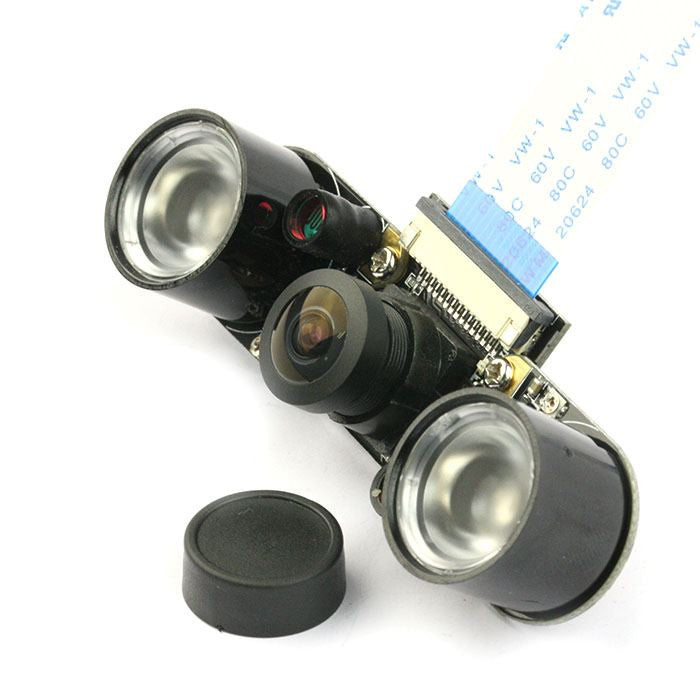

Raspberry Pi Infrared Night Vision Camera (5MP - 160øFOV)

Overview

Unlock the full potential of your Raspberry Pi with the MOKWN Infrared Night Vision Camera. This 5MP camera module is engineered for exceptional performance in both bright daylight and complete darkness, making it the ultimate choice for security, surveillance, robotics, and creative low-light photography projects. Built around the reliable Omnivision OV5647 sensor and equipped with powerful IR LEDs, it delivers crisp, clear images around the clock.

Key Features

• 5MP Omnivision OV5647 Sensor: Capture high-resolution stills at 2592 x 1944 pixels.
• Infrared Night Vision: Integrated IR LEDs illuminate scenes in total darkness for 24/7 monitoring.
• Wide 160° Field of View: Cover more area with a broad, fish-eye perspective.
• Full HD Video: Record smooth 1080p video at 30fps.
• Direct Raspberry Pi Compatibility: No additional hardware required; connects via CSI ribbon cable.
• Compact & Lightweight: Perfect for drones, robots, and portable projects.

Technical Specifications

• Sensor: Omnivision OV5647
• Still Resolution: 2592 x 1944 pixels
• Max Video Resolution: 1080p (1920 x 1080)
• Max Frame Rate: 30fps
• Field of View: 160°
• Interface: Raspberry Pi CSI (Camera Serial Interface)
• Infrared: Built-in IR LEDs for night vision

Applications & Use Cases

• Home Security & Surveillance: Monitor your property day and night.
• Wildlife Observation: Capture nocturnal animals without disturbing them.
• Robotics & Automation: Give your robot vision for navigation and object detection.
• Smart Agriculture: Monitor crops or livestock in low-light conditions.
• Creative Photography: Experiment with IR and night-time imagery.
• Educational Projects: Teach computer vision and image processing in schools.

What's Included

• 1x Raspberry Pi Infrared Night Vision Camera Module
• 1x 15cm CSI Ribbon Cable
• (Note: Raspberry Pi board not included)

Compatibility

• Raspberry Pi 4 Model B
• Raspberry Pi 3 Model B / B+
• Raspberry Pi 2 Model B
• Raspberry Pi 1 Model B+
• Raspberry Pi Zero / Zero W (requires a separate adapter cable)

MOKWN Recommendation

Ideal for makers, security enthusiasts, and educators in Egypt. Whether you're building a smart doorbell, a wildlife camera, or a robot that navigates in the dark, this camera delivers reliable performance. Pair it with a Raspberry Pi and a MOKWN power supply for a complete setup. For any questions about integration, our Cairo-based support team is here to help.
