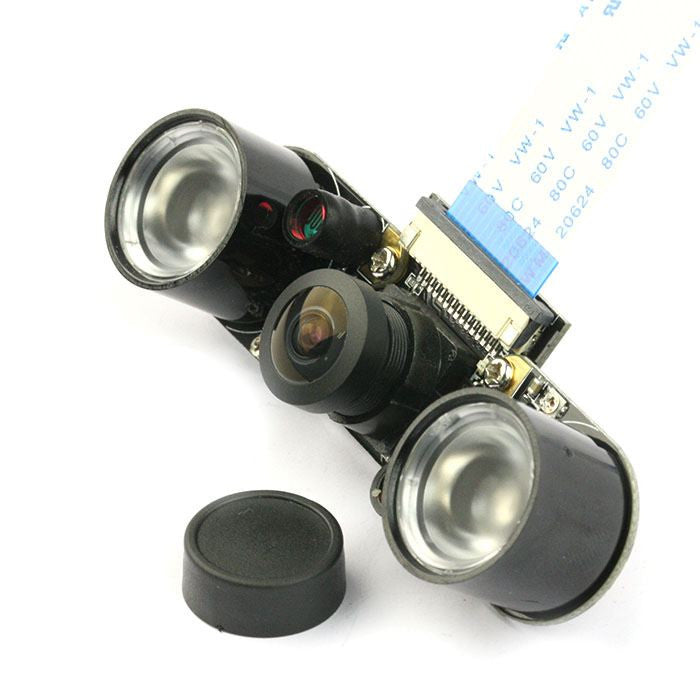

Raspberry Pi Infrared Night Vision Camera (5MP, 130° FOV)

Overview

Illuminate the dark and see beyond the visible spectrum with the Raspberry Pi Infrared Night Vision Camera (5MP, 130° FOV). This advanced camera module, built on the reliable OmniVision OV5647 sensor, brings crystal-clear imaging to your Raspberry Pi projects, even in complete darkness. Featuring a wide 130° fisheye lens, an IR-CUT filter, and dual 850nm infrared LEDs, it automatically transitions between vibrant daytime color and sharp black-and-white night vision. Whether you're building a security system, a wildlife monitor, or an autonomous robot, this camera is your eye in the dark.

Key Features

• 5MP High-Resolution Sensor: OmniVision OV5647 delivers crisp 2592 x 1944 still images and smooth 1080p video at 30fps.
• Dual IR LEDs & IR-CUT Filter: Provides clear night vision up to several meters and automatically switches modes for optimal color accuracy in daylight.
• 130° Wide-Angle Lens: Captures a broad field of view, ideal for surveillance and monitoring large areas.
• Universal Raspberry Pi Compatibility: Works with all Raspberry Pi models featuring a CSI camera interface (Pi 2, 3, 4, 5, Zero, etc.).
• Plug-and-Play: Simple ribbon cable connection, no soldering required.

Technical Specifications

• Sensor: OmniVision OV5647 CMOS
• Still Picture Resolution: 2592 x 1944 pixels (5MP)
• Video Resolution: 1080p @ 30fps, 720p @ 60fps
• Field of View: 130°
• IR Sensitivity: 850nm
• IR LEDs: Dual, for night vision up to ~2 meters
• Interface: CSI (Camera Serial Interface)
• Dimensions: 25mm x 24mm x 9mm (approx.)
• Weight: 3g (approx.)

Applications & Use Cases

• Security & Surveillance: Monitor your home, office, or workshop with night vision capabilities.
• Robotics: Enable vision-based navigation and obstacle detection in low-light environments.
• Wildlife Monitoring: Capture nocturnal animal behavior without disturbing it.
• AI & Machine Vision: Perfect for computer vision projects that require 24/7 operation.
• Time-Lapse Photography: Create stunning night-time time-lapses.

What's Included

• 1x Raspberry Pi Infrared Night Vision Camera Module
• 1x 15cm CSI ribbon cable
• 1x IR-CUT filter (pre-installed)
• 1x Mounting bracket (optional, for easy setup)

Compatibility

Works with all Raspberry Pi models that have a CSI camera connector:

• Raspberry Pi 5, 4 Model B, 3 Model B+, 3 Model B, 2 Model B, 1 Model B+
• Raspberry Pi Zero, Zero W, Zero 2 W (requires a Zero camera adapter cable)

Compatible with all Raspberry Pi operating systems and Python libraries like Picamera, OpenCV, and TensorFlow Lite.

MOKWN Recommendation

For Egyptian makers, students, and engineers, this camera is an excellent choice for projects requiring reliable night vision without breaking the bank. Pair it with a Raspberry Pi 4 or 5 and a good power supply for a robust surveillance or robotics setup. For extended night range, consider adding an external IR illuminator.

Upgrade your vision – see in the dark with MOKWN!
