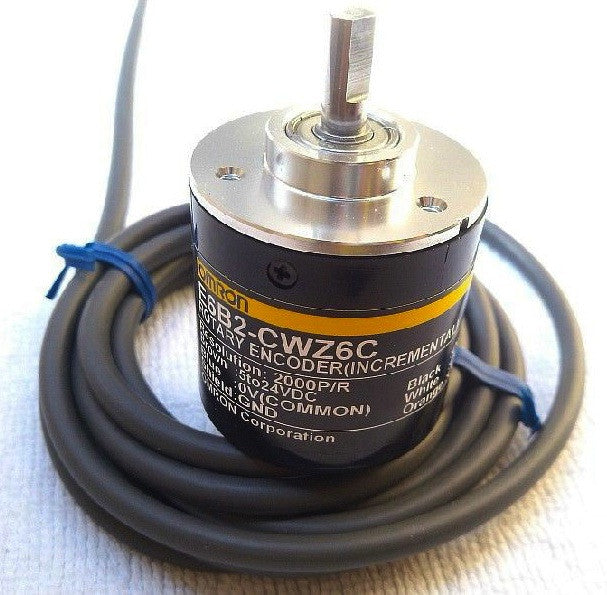

Omron Rotary Encoder E6B2-CW6C (2000 P/R)

Overview

Take your motion control projects to the next level with the Omron E6B2-CW6C Rotary Encoder (2000 P/R). This high-resolution incremental encoder delivers precise position and speed feedback, making it an essential component for CNC machines, robotics, and automation systems. With a robust design and reliable performance, the E6B2-CW6C ensures your projects run smoothly and accurately.

Key Features

• High Resolution: 2000 pulses per revolution (P/R) for precise position and speed detection.
• Wide Voltage Range: Operates from 5 to 24 VDC, compatible with most microcontrollers and PLCs.
• Incremental Output: Provides A, B, and Z phase signals for direction and zero-reference detection.
• Robust Construction: Built to withstand industrial environments, ensuring long-term reliability.
• Easy Integration: Standard shaft coupling and mounting options simplify installation.

Technical Specifications

• Resolution: 2000 P/R
• Power Supply: 5–24 VDC
• Output Type: Open collector (NPN) or line driver (check variant)
• Output Phases: A, B, Z
• Max Response Frequency: 100 kHz
• Shaft Diameter: 6 mm
• Protection Rating: IP50 (varies by model)

Applications & Use Cases

• CNC Machines: Accurate spindle and axis position control.
• Robotics: Precise joint angle feedback for servo and stepper systems.
• 3D Printers: High-resolution filament and bed positioning.
• Industrial Automation: Conveyor speed monitoring and motor control.
• Test & Measurement: Speed and displacement measurement in lab setups.

What's Included

• 1 x Omron E6B2-CW6C Rotary Encoder (2000 P/R)
• Mounting bracket and screws
• Instruction manual

Compatibility

• Works with Arduino, Raspberry Pi, STM32, ESP32, and other microcontrollers.
• Compatible with most CNC controllers (GRBL, Mach3, LinuxCNC) and PLCs.
• Pairs with stepper and servo drivers for closed-loop control.

MOKWN Recommendation

For makers and engineers in Egypt seeking reliable rotary feedback, the Omron E6B2-CW6C is our top choice. Its high resolution and wide voltage range make it versatile for various projects. Combine it with our stepper drivers and CNC shields for a complete motion control solution. Order now to elevate your automation projects!
