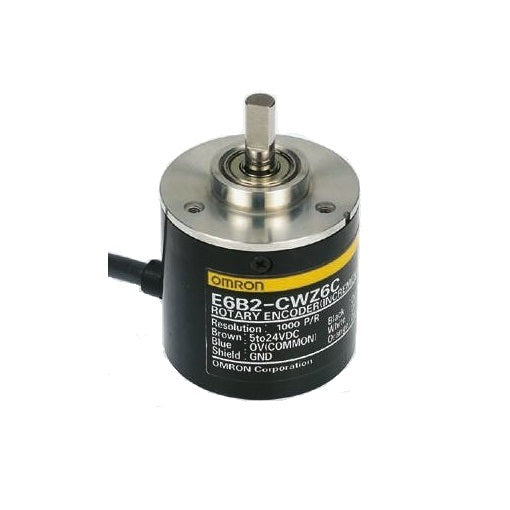

Omron Rotary Encoder E6B2-CW6C (1000 P/R)

Overview

Take your motion control projects to the next level with the Omron Rotary Encoder E6B2-CW6C (1000 P/R). This high-precision incremental encoder delivers 1000 pulses per revolution, providing accurate position and speed feedback essential for demanding applications. Whether you're building a CNC machine, a robotic arm, or an industrial automation system, this encoder ensures your system knows exactly where it is and how fast it's moving.

Key Features

• 1000 Pulses per Revolution: High resolution for precise position and speed control.
• Wide Voltage Range (5–24 VDC): Works with most logic levels and microcontrollers.
• Incremental Output: Simple A/B phase signals for easy integration with counters, PLCs, and MCUs.
• Robust Omron Build Quality: Reliable performance in industrial environments.
• Compact and Durable: Designed for long service life and easy mounting.

Technical Specifications

| Parameter | Value | |-----------|-------| | Resolution | 1000 P/R (pulses per revolution) | | Input Voltage | 5–24 VDC | | Encoding Method | Incremental (A/B phase) | | Output Type | Open collector (typical) | | Shaft Type | Solid shaft (standard) | | Operating Temperature | -10°C to 70°C (typical) |

Applications & Use Cases

• CNC Machines: Precise axis position feedback for milling, routing, and 3D printing.
• Robotics: Motor shaft feedback for accurate joint positioning and velocity control.
• Industrial Automation: Conveyor speed monitoring, cut-to-length systems, and position verification.
• Motion Control Systems: Closed-loop control for stepper or servo motors.
• Test & Measurement: Angle and RPM measurement in laboratory setups.

What's Included

• 1x Omron E6B2-CW6C Rotary Encoder (1000 P/R)
• Mounting bracket and screws (as per manufacturer packaging)

Compatibility

• Works with Arduino, Raspberry Pi, STM32, ESP32, and any microcontroller with digital inputs.
• Compatible with most PLCs, motor drivers, and CNC controllers that accept incremental encoder signals (A/B).
• Pairs perfectly with stepper motor drivers for closed-loop stepper systems.
