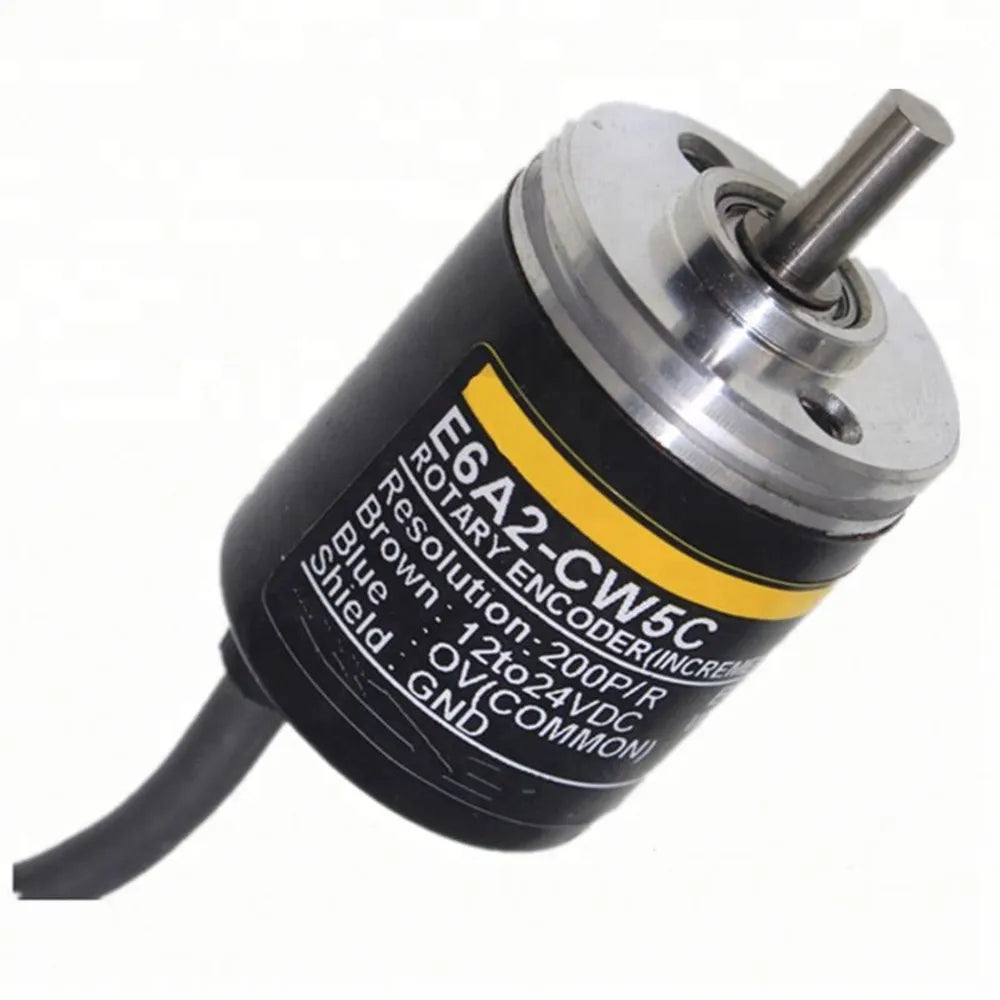

Omron Rotary Encoder E6A2-CW5C 200P/R 0.5M

Overview

Enhance your motion control projects with the Omron Rotary Encoder E6A2-CW5C, a precision incremental encoder delivering 200 pulses per revolution (P/R). This compact, reliable encoder is engineered for accurate position and speed feedback, making it an essential component for CNC machines, robotics, and industrial automation. Its robust design and easy integration ensure consistent performance in demanding applications.

Key Features

• High Resolution: 200 pulses per revolution for precise position feedback.
• Wide Voltage Range: Operates on 12-24 VDC, compatible with most control systems.
• Incremental Output: Provides A and B phase signals for direction detection.
• High-Speed Operation: Supports up to 5000 rpm, suitable for dynamic applications.
• Compact & Durable: Small footprint with a sturdy housing for easy installation and long service life.
• Pre-wired: Comes with a 0.5-meter cable for convenient connectivity.

Technical Specifications

• Resolution: 200 P/R (pulses per revolution)
• Input Voltage: 12-24 VDC
• Encoding Method: Incremental
• Maximum Rotating Speed: 5000 rpm
• Output Phases: A, B (typical)
• Cable Length: 0.5 meters
• Brand: Omron
• Model: E6A2-CW5C

Applications & Use Cases

• Motor Feedback: Close the loop in servo and stepper motor systems for accurate position control.
• CNC Machinery: Monitor spindle speed and axis position for precise machining.
• Robotics: Provide joint position feedback for robotic arms and automated guided vehicles.
• Conveyor Systems: Track belt speed and product position for synchronization.
• 3D Printers: Ensure precise layer positioning and filament feed monitoring.
• Industrial Automation: Integrate into PLC and microcontroller-based control systems.

What's Included

• 1x Omron Rotary Encoder E6A2-CW5C (200 P/R, 0.5M cable)

Compatibility

• Compatible with most microcontrollers (Arduino, Raspberry Pi, STM32) and PLCs.
• Works with motor drivers and controllers that accept incremental encoder signals.
• Pairs well with MOKWN's range of stepper motors and motor drivers.

MOKWN Recommendation

For makers and engineers seeking reliable position feedback, the Omron E6A2-CW5C is a top-tier choice. Its proven Omron quality and high resolution make it ideal for precision projects. We recommend combining it with our high-performance stepper motors and drivers for a complete motion control solution. Order today and elevate your project's accuracy!
