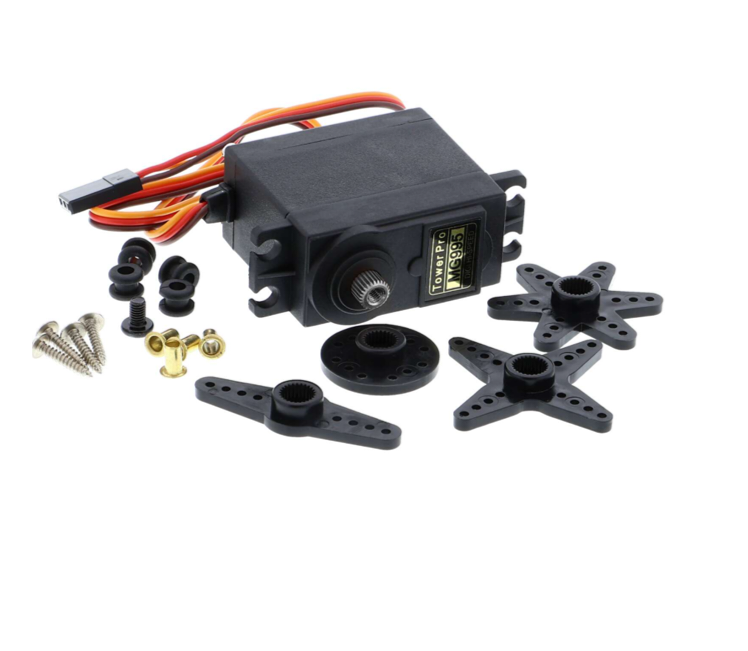

MG995 High-Torque Servo Motor 180° (Semi-Metal Gear)

MG995 High-Torque Servo High-torque MG995 analog servo motor features a durable semi-metal gear train and precise 180° position control. Ideal for heavy-duty robotics, RC vehicles, and dynamic mechanical projects. Includes a full set of mounting horns and hardware accessories.

Key Features:

• Hybrid Semi-Metal Gears: Combines metal gears at critical high-stress points with durable composite gears for optimized strength and reduced operational noise.
• 180° Precise Positional Control: Delivers accurate angular positioning via standard PWM signals, making it ideal for robotic joints and mechanical linkages.
• High Torque Output: Built to handle moderate to heavy mechanical loads effortlessly.
• Complete Accessory Kit: Ships with multiple plastic servo horns, mounting screws, brass eyelets, and vibration-damping rubber grommets.
• Universal Compatibility: Plugs seamlessly into Arduino, ESP32, Raspberry Pi, and standard PWM servo controllers.

Technical Specifications:

• Model: MG995
• Operating Voltage: 4.8V – 7.2V DC
• Rotation Angle: 180° (Positional Control)
• Gear Type: Semi-Metal / Hybrid Gear
• Stall Torque: 9.4 kg·cm @ 4.8V / 11.0 kg·cm @ 6.0V
• Operating Speed: 0.20 sec/60° @ 4.8V / 0.16 sec/60° @ 6.0V
• Control Signal: PWM (Pulse Width Modulation)
• Weight: ~55g
• Connector Wire Length: ~300mm

Applications:

• Robotic arms, grippers, and bipedal walkers.
• RC car steering mechanisms and throttle controls.
• Smart home automation (automated locks, valves, and mechanisms).
• Graduation projects, Mechatronics labs, and DIY IoT setups.

Package Includes:

• 1x MG995 180° Servo Motor
• 4x Servo Horns (various shapes)
• 1x Mounting Hardware Set (Screws, rubber grommets, brass bushings)
