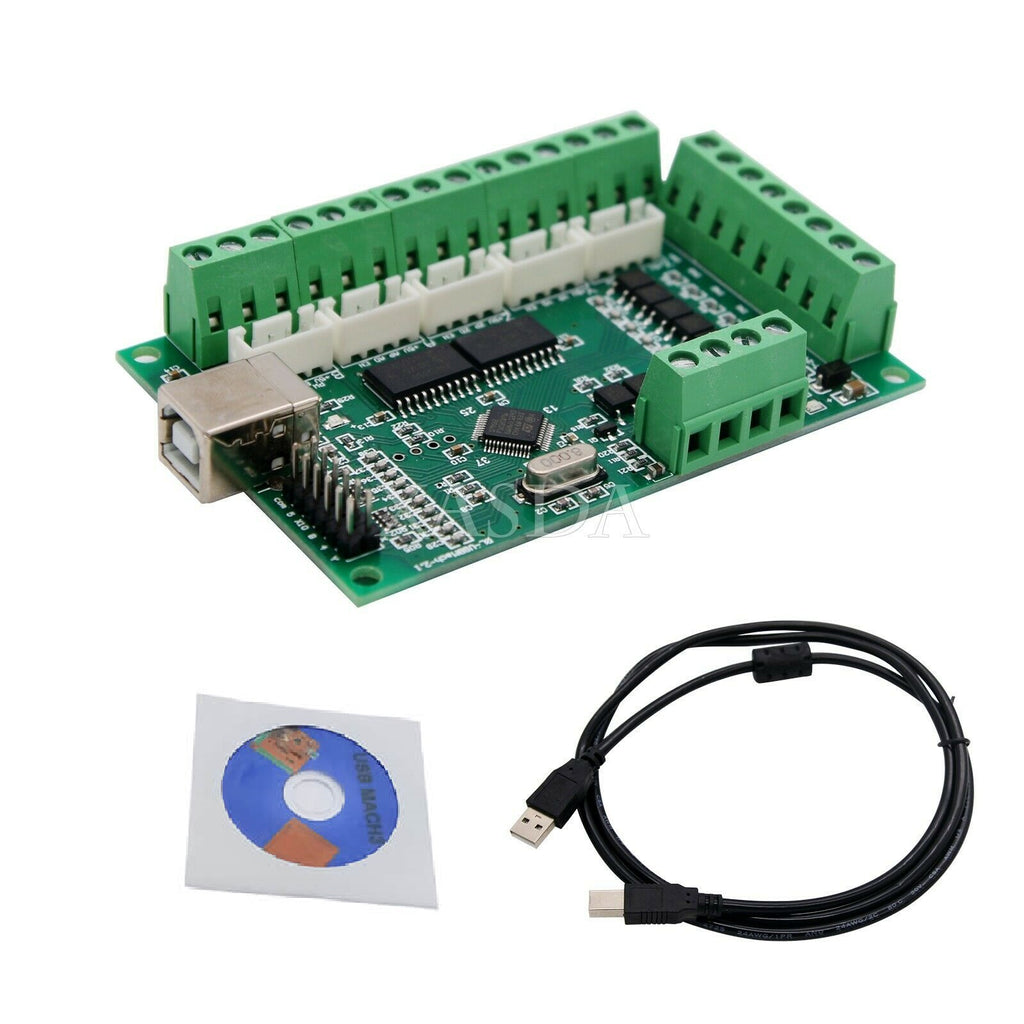

5-Axis USB CNC Motion Controller for Mach3 (BL-USBMach V2)

Overview

Upgrade your CNC machine to 5-axis capability with the BL-USBMach V2, a high-performance USB motion controller designed for Mach3. This plug-and-play device eliminates the need for a parallel port, offering a modern, reliable interface between your PC and stepper or servo drivers. Whether you're retrofitting an existing mill or building a custom router, this controller delivers smooth, precise motion control with minimal setup.

Key Features

• 5-Axis Control: Drives up to 5 stepper or servo motors simultaneously, perfect for complex 3D machining and 5-axis applications.
• USB Connectivity: Simple USB 2.0 connection, no parallel port required. Works with laptops and desktops.
• Mach3 Compatible: Seamlessly integrates with Mach3 software (version R3.043.066 or later), a widely used CNC control platform.
• High-Speed Processing: Supports up to 100kHz pulse frequency for smooth, high-speed operation.
• Isolated Power: Opto-isolated inputs protect your PC and controller from electrical noise and interference.
• Easy Setup: Plug-and-play installation, with clear indicators for power and communication status.

Technical Specifications

• Interface: USB 2.0 (full speed)
• Supported Software: Mach3 (version R3.043.066 or later)
• Axis Control: 5 axes (X, Y, Z, A, B)
• Pulse Output Frequency: Up to 100kHz
• Inputs: 10 isolated digital inputs (including limit switches, emergency stop, etc.)
• Outputs: 2 isolated digital outputs (spindle on/off, coolant, etc.)
• Power Supply: USB powered (5V) – no external power needed for logic
• Dimensions: 85mm x 55mm x 20mm
• Operating Temperature: 0°C to 50°C

Applications & Use Cases

• 5-Axis CNC Milling: Ideal for machining complex parts with undercuts and contoured surfaces.
• CNC Router Retrofit: Upgrade your existing 3-axis router to 4 or 5 axes for advanced projects.
• Robotics: Control multi-axis robotic arms or positioning systems.
• Engraving & Carving: Achieve intricate 3D engraving and carving with high precision.
• Education & Research: Perfect for university labs and maker spaces exploring advanced CNC technology.

What's Included

• 1x BL-USBMach V2 5-Axis USB CNC Motion Controller
• 1x USB cable (type A to B)
• 1x Quick start guide

Compatibility

• Software: Mach3 (version R3.043.066 or later)
• Operating Systems: Windows XP/Vista/7/8/10 (32-bit and 64-bit)
• Drivers: Compatible with most stepper and servo drivers that accept step/direction signals (e.g., TB6600, DM542, etc.)
• Machines: Suitable for CNC mills, routers, plasma cutters, laser engravers (with appropriate drivers), and 3D printers (with Mach3 setup)

MOKWN Recommendation

For Egyptian CNC enthusiasts, the BL-USBMach V2 is the perfect upgrade to bring your machine into the modern USB era. It's reliable, easy to use, and backed by MOKWN's local support. Whether you're a hobbyist or a professional, this controller will enhance your machining capabilities. Order now and enjoy fast delivery across Egypt!
