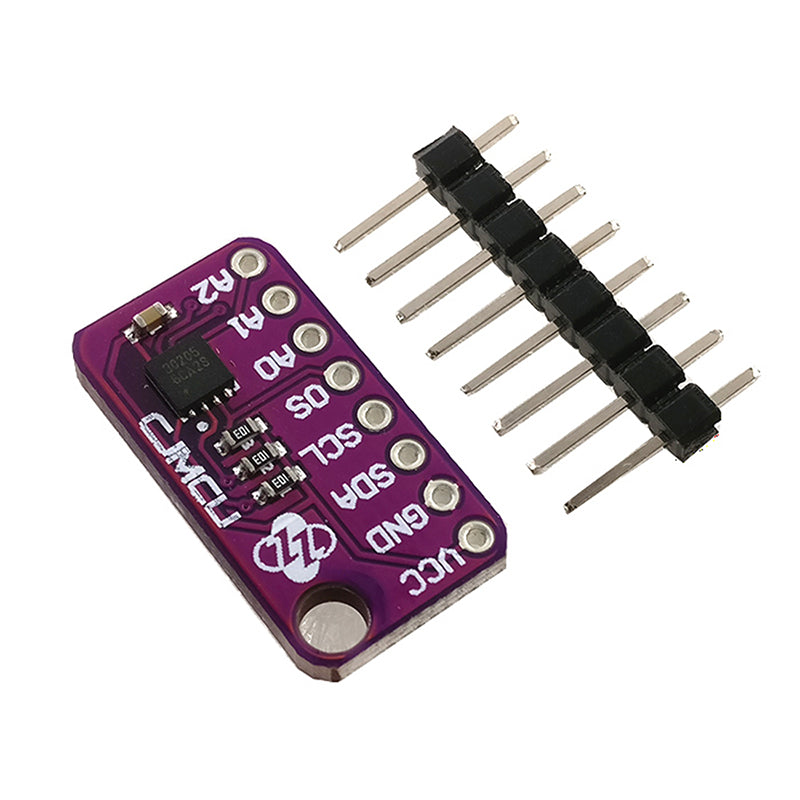

MAX30205 Human Body Temperature Sensor
790 EGP · In stock
### Overview Monitor human body temperature with clinical-grade precision using the MAX30205 Human Body Temperature Sensor from MOKWN. This compact, digital sensor is engineered for accuracy, meeting medical thermometer specifications with a remarkable ±0.1°C accuracy. The built-in high-resolution analog-to-digital converter (ADC) ensures reliable and consistent temperature readings, making it the ideal choice for medical devices, wearable health monitors, and fitness trackers. Whether you're developing a smart thermometer, a continuous monitoring system, or a research prototype, the MAX30205 provides the precision and reliability you need. ### Key Features - **Clinical Accuracy:** ±0.1°C accuracy from 37°C to 39°C, meeting ASTM E1112 and EN 12470-3 standards. - **High-Resolution ADC:** 16-bit resolution with 0.00390625°C (LSB) temperature resolution. - **Digital Interface:** I2C communication for easy integration with microcontrollers like Arduino, Raspberry Pi, and ESP32. - **Wide Measurement Range:** Measures from 0°C to +50°C, suitable for body temperature and ambient monitoring. - **Low Power Consumption:** 600µA typical supply current, ideal for battery-powered wearables. - **Programmable Thresholds:** Set over-temperature and under-temperature limits with interrupt output. - **Compact Form Factor:** Small TDFN package, perfect for space-constrained designs. ### Technical Specifications - **Supply Voltage:** 2.0V to 3.6V - **Accuracy:** ±0.1°C (37°C to 39°C), ±0.2°C (39°C to 43°C) - **Resolution:** 16-bit, 0.00390625°C - **Measurement Range:** 0°C to +50°C - **Interface:** I2C (up to 400kHz) - **Current Consumption:** 600µA (typical) - **Package:** 8-pin TDFN (2mm x 3mm) - **Operating Temperature:** -20°C to +125°C ### Applications & Use Cases - **Medical Devices:** Digital thermometers, patient monitoring systems, and incubator temperature control. - **Wearable Health Tech:** Smartwatches, fitness bands, and continuous body temperature patches. - **Fitness & Wellness:** Heat stress monitoring, ovulation tracking, and sleep tracking. - **Research & Development:** Laboratory experiments requiring precise temperature measurement. - **Industrial:** Temperature monitoring in process control and HVAC systems. ### What's Included - 1x MAX30205 Human Body Temperature Sensor (breakout board with pin headers) - 1x I2C interface header (pre-soldered) - (Note: The sensor is shipped as a module; no additional components are included.) ### Compatibility - **Arduino:** Works with Arduino Uno, Nano, Mega, and other I2C-compatible boards. - **Raspberry Pi:** Compatible with Raspberry Pi via I2C. - **ESP32/ESP8266:** Easy integration with I2C. - **Other Microcontrollers:** Any MCU with I2C support. ### MOKWN Recommendation For Egyptian makers and engineers, the MAX30205 is the perfect choice when you need medical-grade temperature sensing. It's ideal for developing health monitoring devices that require high accuracy. Pair it with an Arduino or ESP32 and a display to create a professional digital thermometer. We recommend using it in projects where precision matters, such as fever detection or continuous health monitoring. Available now at MOKWN with fast delivery across Egypt.
