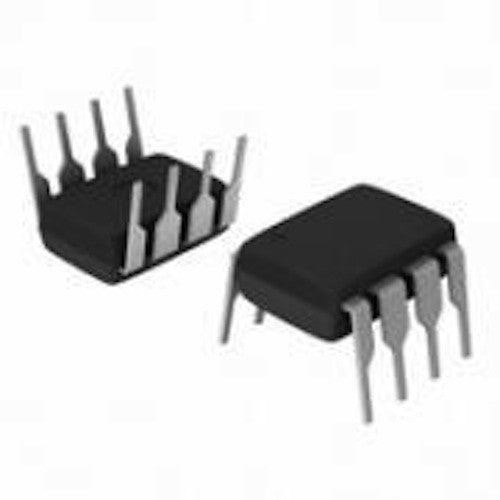

LM741 General Purpose Amplifier

Overview

The LM741 is a classic, general-purpose operational amplifier (op-amp) that has been a staple in analog electronics for decades. Known for its versatility and ease of use, the LM741 is ideal for a wide range of applications, from simple voltage followers to more complex signal conditioning circuits. Whether you're a hobbyist experimenting with analog circuits or an engineer prototyping a new design, the LM741 provides reliable performance in a compact 8-pin DIP package.

Key Features

• General Purpose Op-Amp: Suitable for a wide variety of analog applications.
• Wide Supply Voltage Range: Operates from ±5V to ±18V, making it compatible with many power supplies.
• High Gain: Open-loop voltage gain of 200,000 (typical), ensuring accurate amplification.
• Short-Circuit Protection: Built-in protection against output short circuits.
• No Latch-Up: Designed to avoid latch-up when the common-mode range is exceeded.
• Offset Null Capability: Pin for offset voltage adjustment to fine-tune output.
• Standard 8-Pin DIP Package: Easy to use on breadboards and PCBs.

Technical Specifications

• Supply Voltage: ±5V to ±18V (typical ±15V)
• Open-Loop Voltage Gain: 200,000 (typical)
• Input Offset Voltage: 2mV (typical)
• Input Bias Current: 80nA (typical)
• Input Resistance: 2MΩ (typical)
• Output Short-Circuit Current: 25mA (typical)
• Slew Rate: 0.5V/µs (typical)
• Bandwidth (Unity Gain): 1MHz (typical)
• Operating Temperature Range: 0°C to +70°C
• Package: 8-pin DIP (DIP-8)

Applications & Use Cases

• Voltage Followers: Buffer circuits to isolate signal sources.
• Active Filters: Low-pass, high-pass, and band-pass filter designs.
• Comparators: Voltage comparison circuits (with external hysteresis if needed).
• Amplifiers: Audio preamps, instrumentation amplifiers, and general signal amplification.
• Oscillators: Generate square or sine wave signals.
• Sensor Signal Conditioning: Amplify and scale signals from sensors like thermocouples, photodiodes, and strain gauges.
• Educational Projects: Ideal for learning op-amp fundamentals in electronics courses.

What's Included

• 1 x LM741 General Purpose Operational Amplifier (DIP-8)

Compatibility

• Breadboard and PCB: Compatible with standard 0.1-inch pitch breadboards and PCBs.
• Power Supply: Requires dual supply (e.g., ±12V or ±15V) for best performance, but can also operate with a single supply (e.g., 10V to 36V) with proper biasing.
• Other Components: Works with standard resistors, capacitors, and diodes to build various circuits.

MOKWN Recommendation

The LM741 is a reliable and affordable op-amp that every electronics enthusiast should have in their toolkit. While it may not have the high-speed performance of modern op-amps, its simplicity and robustness make it perfect for learning and prototyping. For more demanding applications, consider our other op-amp options. For most general-purpose analog projects, the LM741 is an excellent choice.

Order now from MOKWN Egypt and get fast delivery across Egypt. Perfect for students, hobbyists, and professionals alike!
