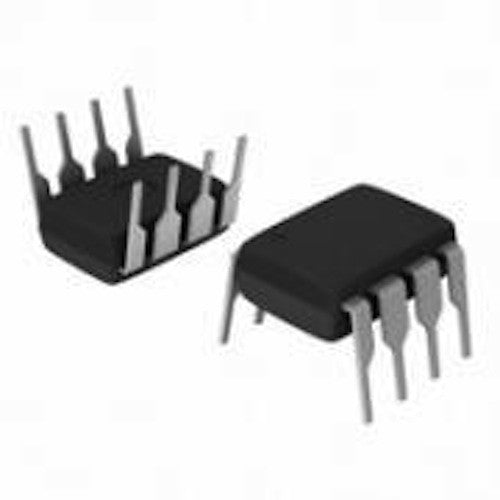

AD620AN - Low Power Instrumentation Amplifier

Overview

The AD620AN is a low-power, high-performance instrumentation amplifier that delivers precise signal amplification in a compact, easy-to-use package. Engineered for applications where weak signals must be extracted from noisy environments, it offers excellent DC and AC performance while consuming minimal power. Whether you're building a biomedical monitor, a data acquisition system, or a precision sensor interface, the AD620AN provides the reliability and accuracy you need.

Key Features

• Single Resistor Gain Setting: Gain is set from 1 to 1000 with a single external resistor, offering flexibility and simplicity.
• Low Power Consumption: With a maximum supply current of only 1.3 mA, it's ideal for battery-powered and portable devices.
• Wide Supply Range: Operates from ±2.3V to ±18V, accommodating a variety of power configurations.
• Fast Settling Time: Settles to 0.01% in just 15 µs, ensuring accurate readings in high-speed applications.
• High Accuracy: Low offset voltage and drift provide precise amplification of small signals.

Technical Specifications

• Gain Range: 1 to 1000 (set by external resistor)
• Settling Time: 15 µs to 0.01%
• Supply Current: 1.3 mA max
• Power Supply Range: ±2.3V to ±18V
• Package: 8-pin DIP

Applications & Use Cases

• ECG and Biomedical Monitoring: Amplify tiny bio-signals with high common-mode rejection.
• Data Acquisition Systems: Precision amplification for sensors and transducers.
• Industrial Process Control: Interface with strain gauges, thermocouples, and pressure sensors.
• Weighing Scales: Accurate load cell signal conditioning.
• Portable Instruments: Low power consumption extends battery life.

What's Included

• 1 x AD620AN Instrumentation Amplifier (DIP-8 package)

Compatibility

• Works with standard breadboards and prototyping boards.
• Compatible with Arduino, Raspberry Pi, and other microcontrollers via analog inputs (with appropriate level shifting).
• Gain resistor (not included) required to set desired gain.

MOKWN Recommendation

For Egyptian makers and engineers seeking a dependable instrumentation amplifier for precision projects, the AD620AN is a top choice. Its low power draw and wide supply range make it versatile for both educational and professional applications. Combine it with our range of sensors and microcontrollers to build robust signal conditioning circuits. Order now and experience accurate amplification in your next project!
