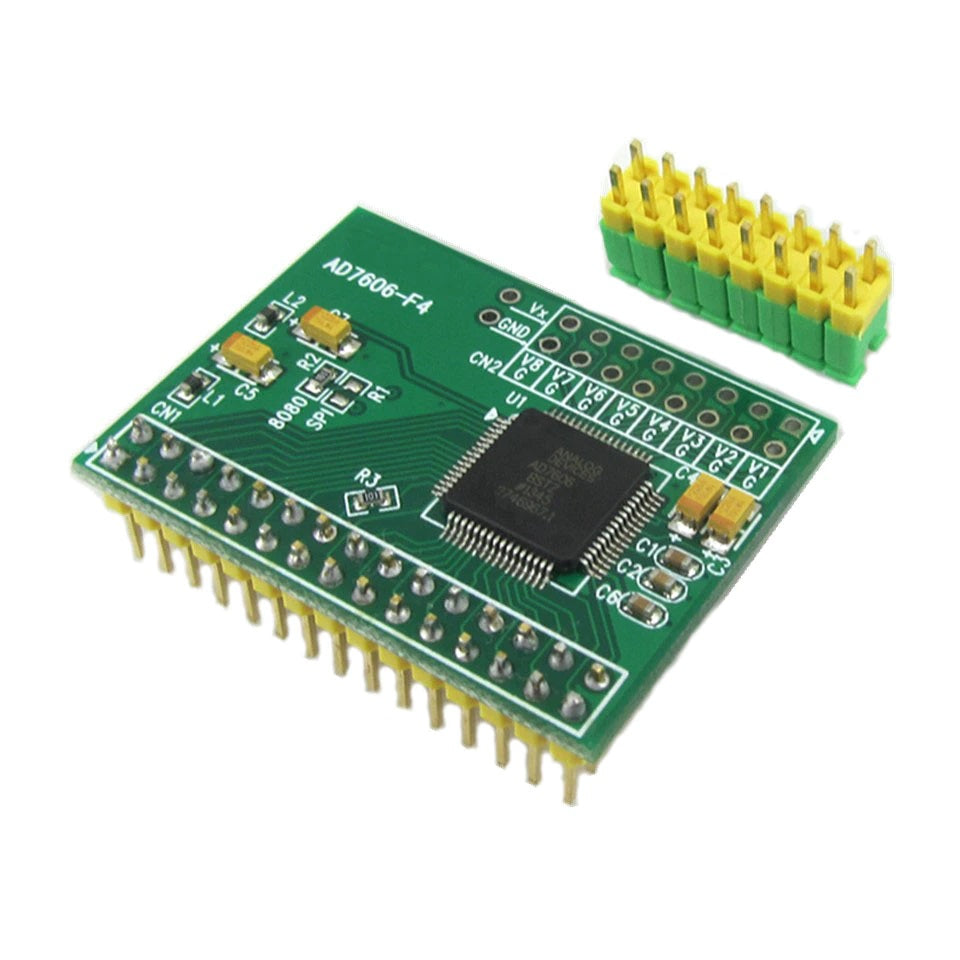

AD7606 Data Acquisition Module (16Bit ADC - 8 Ch) 200Ksps

Overview

Unlock precise multi-channel analog data acquisition with the AD7606 Data Acquisition Module. This high-performance module integrates the Analog Devices AD7606, a 16-bit, 8-channel simultaneous sampling ADC, capable of capturing up to 200,000 samples per second. Featuring true bipolar inputs, it simplifies interfacing with both positive and negative analog signals, making it ideal for demanding measurement and control applications. Whether you're building a power monitoring system, an industrial controller, or a scientific instrument, the AD7606 provides the accuracy and speed you need.

Key Features

• 16-Bit Resolution: High precision conversion for detailed and accurate measurements.
• 8 Bipolar Channels: Accepts both positive and negative analog inputs without complex level shifting.
• 200 kSPS Sampling Rate: Simultaneous sampling at up to 200,000 samples per second ensures fast, synchronized data capture.
• True Bipolar Input Range: Supports input ranges of ±5V and ±10V, selectable via hardware.
• 5V Single Supply Operation: Simple power requirement makes integration easy.
• On-Board Signal Conditioning: Includes input clamping protection and anti-aliasing filtering.
• Parallel and Serial Interface: Flexible data readout options to suit various microcontrollers and DSPs.
• SPI Compatible: Easy to interface with popular platforms like Arduino, Raspberry Pi, and STM32.

Technical Specifications

• Resolution: 16 bits
• Number of Channels: 8 (simultaneous sampling)
• Sampling Rate: 200 kSPS (max)
• Input Type: Bipolar, true differential
• Input Ranges: ±5V, ±10V (hardware selectable)
• Supply Voltage: 5V DC
• Interface: Parallel / Serial (SPI)
• Package: Module with pin headers

Applications & Use Cases

• Power Monitoring: Measure voltage and current in 3-phase systems.
• Industrial Automation: Data acquisition for PLCs and process control.
• Medical Instrumentation: High-precision biosignal acquisition (ECG, EEG).
• Audio & Vibration Analysis: Capture high-speed waveforms for FFT analysis.
• Robotics: Multi-sensor feedback for precise control.
• Scientific Research: General-purpose laboratory data logging.

What's Included

• 1x AD7606 Data Acquisition Module

Compatibility

• Works with any microcontroller or single-board computer that supports SPI or parallel communication, including Arduino, Raspberry Pi, STM32, ESP32, and FPGA boards. No external level shifting required for 3.3V or 5V logic.

MOKWN Recommendation

For makers and engineers in Egypt looking for reliable, high-resolution analog data acquisition, the AD7606 module is a top choice. Its 8-channel simultaneous sampling and true bipolar input capability set it apart from typical 12-bit ADCs. Whether you are a student working on a final year project or a professional developing an industrial solution, this module delivers professional-grade performance at an affordable price. Order today from MOKWN and take your embedded projects to the next level.
