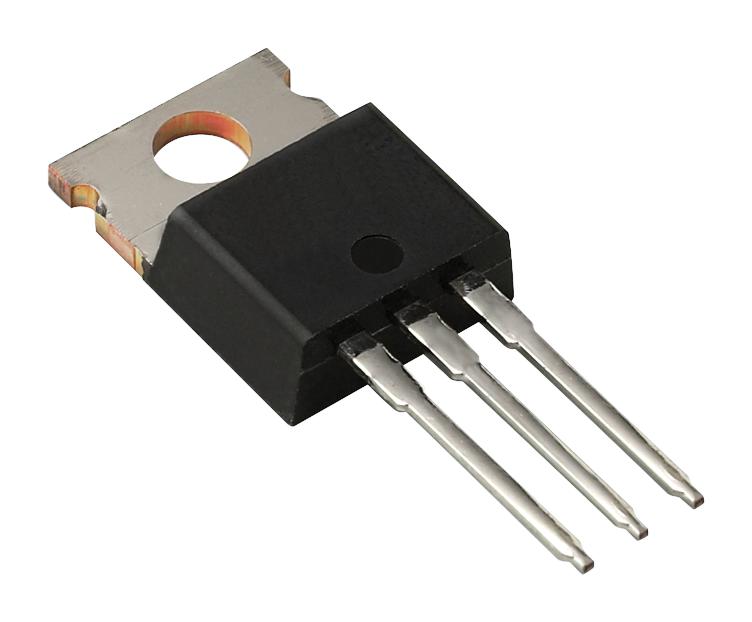

LM323T - 1.2V to 37V Adjustable Voltage Regulator

Overview

The LM323T is a versatile adjustable voltage regulator that allows you to create custom power supplies tailored to your exact project requirements. With an output voltage range from 1.2V to 37V and a current capability exceeding 1.5A, this regulator offers the flexibility and power needed for a wide array of electronic applications. Whether you're a hobbyist, student, or professional engineer, the LM323T is an essential component for building reliable and efficient power circuits.

Key Features

• Wide Output Voltage Range: Adjustable from 1.2V to 37V, accommodating diverse circuit needs.
• High Output Current: Delivers over 1.5A, suitable for powering demanding loads.
• Thermal Overload Protection: Built-in safeguards protect the device from overheating.
• Short Circuit Protection: Ensures safe operation under fault conditions.
• TO-220 Package: Standard, easy-to-mount package for breadboards and PCBs.
• Low Dropout Voltage: Maintains regulation with minimal input-output voltage difference.

Technical Specifications

• Output Voltage Range: 1.2V to 37V (adjustable)
• Output Current: >1.5A (with adequate heat sinking)
• Input Voltage Range: Up to 40V (maximum)
• Dropout Voltage: Typically 3V at full load
• Line Regulation: 0.01% per Volt (typical)
• Load Regulation: 0.1% (typical)
• Operating Temperature Range: 0°C to 125°C (junction)
• Package: TO-220

Applications & Use Cases

• Custom Power Supplies: Build bench supplies or dedicated power sources for your projects.
• Battery Chargers: Create adjustable charging circuits for various battery chemistries.
• Audio Amplifiers: Supply clean, stable power to audio circuits.
• Microcontroller Projects: Power Arduino, ESP32, and other MCU boards with precise voltage.
• Test and Measurement Equipment: Provide accurate reference voltages.

What's Included

• 1x LM323T Adjustable Voltage Regulator
• (No additional accessories; resistors and capacitors may be required for operation as per datasheet.)

Compatibility

• Works with standard TO-220 heatsinks and mounting kits.
• Suitable for use with common PCB prototyping tools like breadboards and perfboards.
• Pair with external resistors to set desired output voltage (see datasheet for formulas).

MOKWN Recommendation

The LM323T is a reliable and cost-effective solution for makers and engineers in Egypt who need a flexible voltage regulator. Its wide voltage range and high current output make it a staple for prototyping and production. For best performance, we recommend using a heatsink when drawing currents above 1A. Order now and power your next innovation with confidence!
